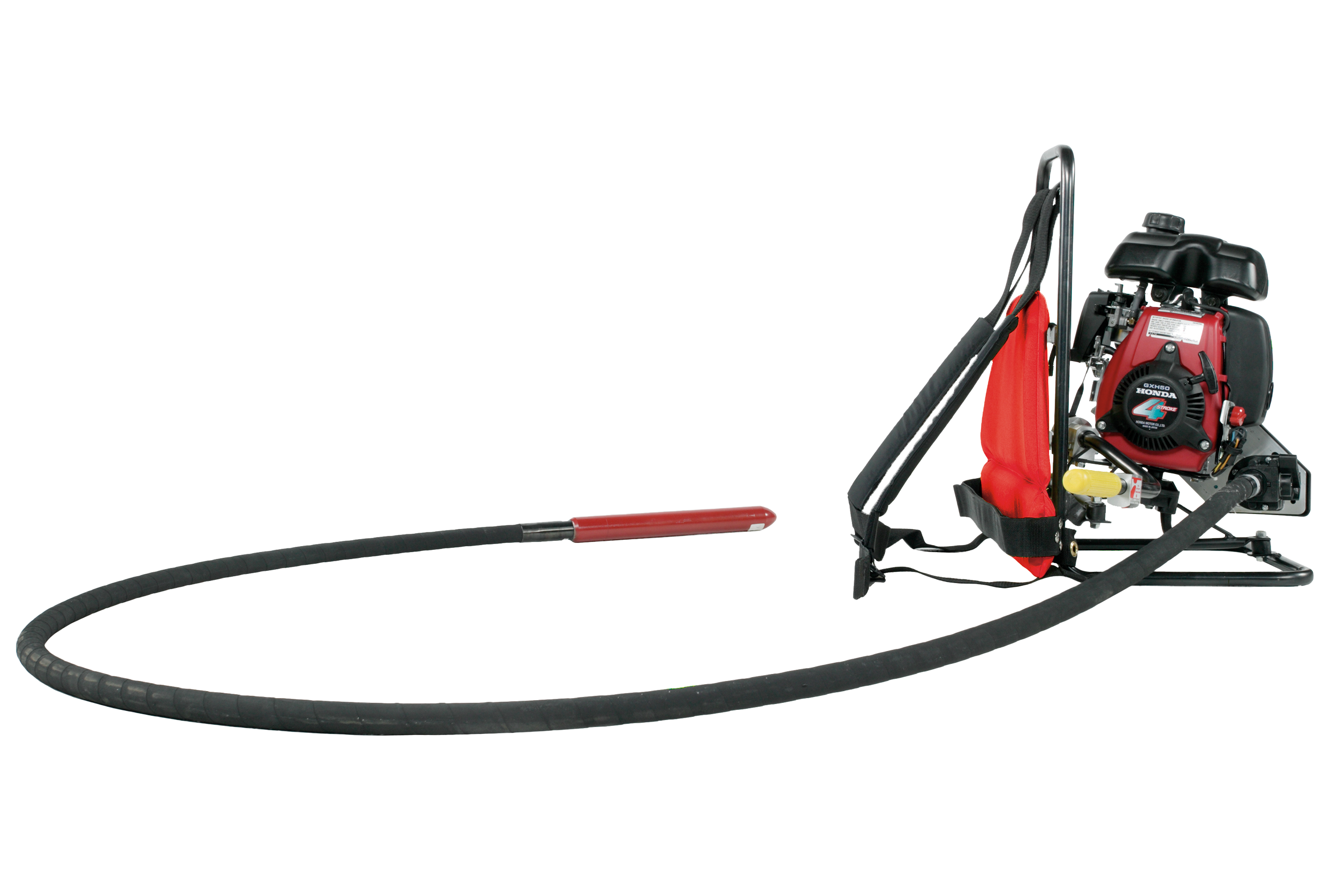

BACKPACK CONCRETE VIBRATORS // BP50

Our backpack vibrator allows you to go anywhere without worrying about the need for electricity. It features a “speed-up” transmission that allows the engine to run at low rpm’s and still produce high vibrations per minute.

Specs FAQ's

Specifications

ENGINE

HONDA GHX50 / 49 cc

HORSEPOWER CLASS

2.5 hp / 1.9 kW

VIBRATIONS PER MINUTE

11,000 – 12,000

FLEXIBLE SHAFT LENGTHS

2 – 21 ft / .61 – 6.40 m

VIBRATOR HEAD MATERIAL

Steel or Rubber

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

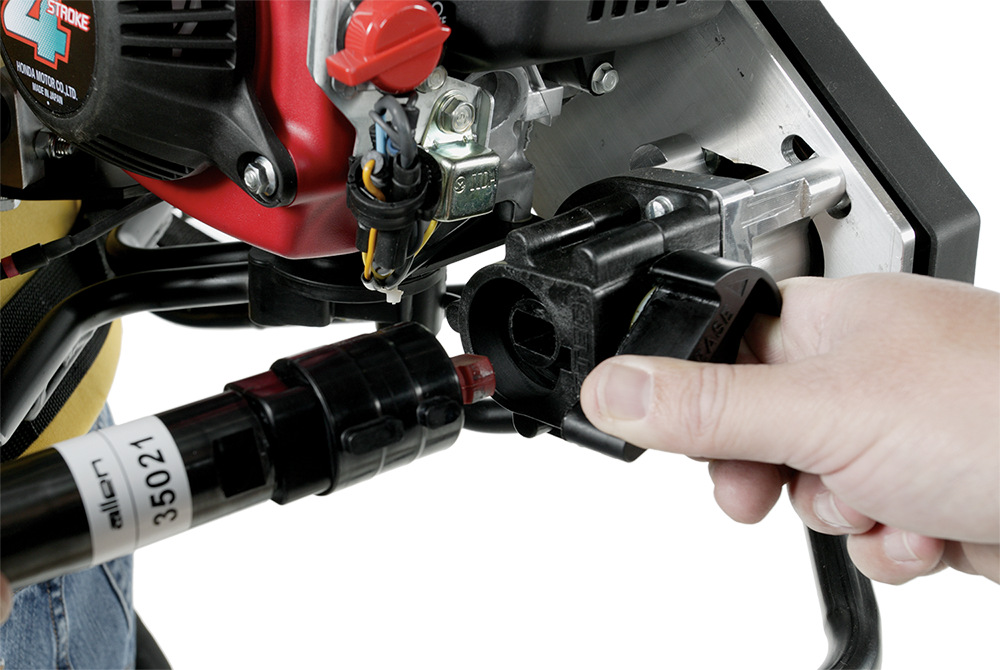

Quick disconnect system

Throttle handle

Vibrator head

Backpack shoulder strap

Backpack pad with velcro shoulder strap

FAQ's

What is the blue and red thread locker used for?

The blue thread locker is for the engine shaft to the flex shaft and the red is for the flex shaft to the vibe head.

What is the part number for the PV throttle assembly?

Power Vibe Throttle Cable - 049182

How often should you grease core and casing?

50-100 hours of use with the EP2 Lithium grease

What is the part number for BP50 Female QD Casing Adaptor?

Female QD Casing Adaptor - 040398

What is the part number for the BP50 Male QD for flex shaft?

Vibe Flex Shaft Quick Disconnect - 036934
