ALLEN CONCRETE PAVER // APCP1600

The Allen 1600 Polyester Concrete Paver is also designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces, but with the ability to be used in a 12-foot or 16-foot application. The optional conveyor brings material straight from the truck to the auger chamber and disperses it the paving pan (equipped with Minnich Pan Vibrators ™) where the material is “screeded” to grade, followed by tinning rake to put a texture on the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. This unit also has a built-in “cross-slope” grade sensing system making sure the final surface elevations meet the project specifications.

Specifications

ENGINE
John Deere 4.5L (T4F)
HORSEPOWER CLASS
173 hp / 129 kW
FUEL TYPE
Diesel
FUEL RESERVOIR
110 gal / 416.4 L
PAVING WIDTHS
12 ft or 16 ft / 3.6 m or 4.8 m
PAVING DEPTH
Up to 6 in / Up to 15.2 cm
VIBRATION SYSTEM
6 or 8 Hydraulic Pan Vibrators
CRAWLER TRACK LENGTH
10 ft or 12 ft / 3.1 m or 3.6 m
HYDRAULIC OIL RESERVOIR
100 gal / 378.5 L
HEAVY DUTY MATERIAL CONVEYOR
Standard
WEIGHT
28,500 lbs / 12,927 kg

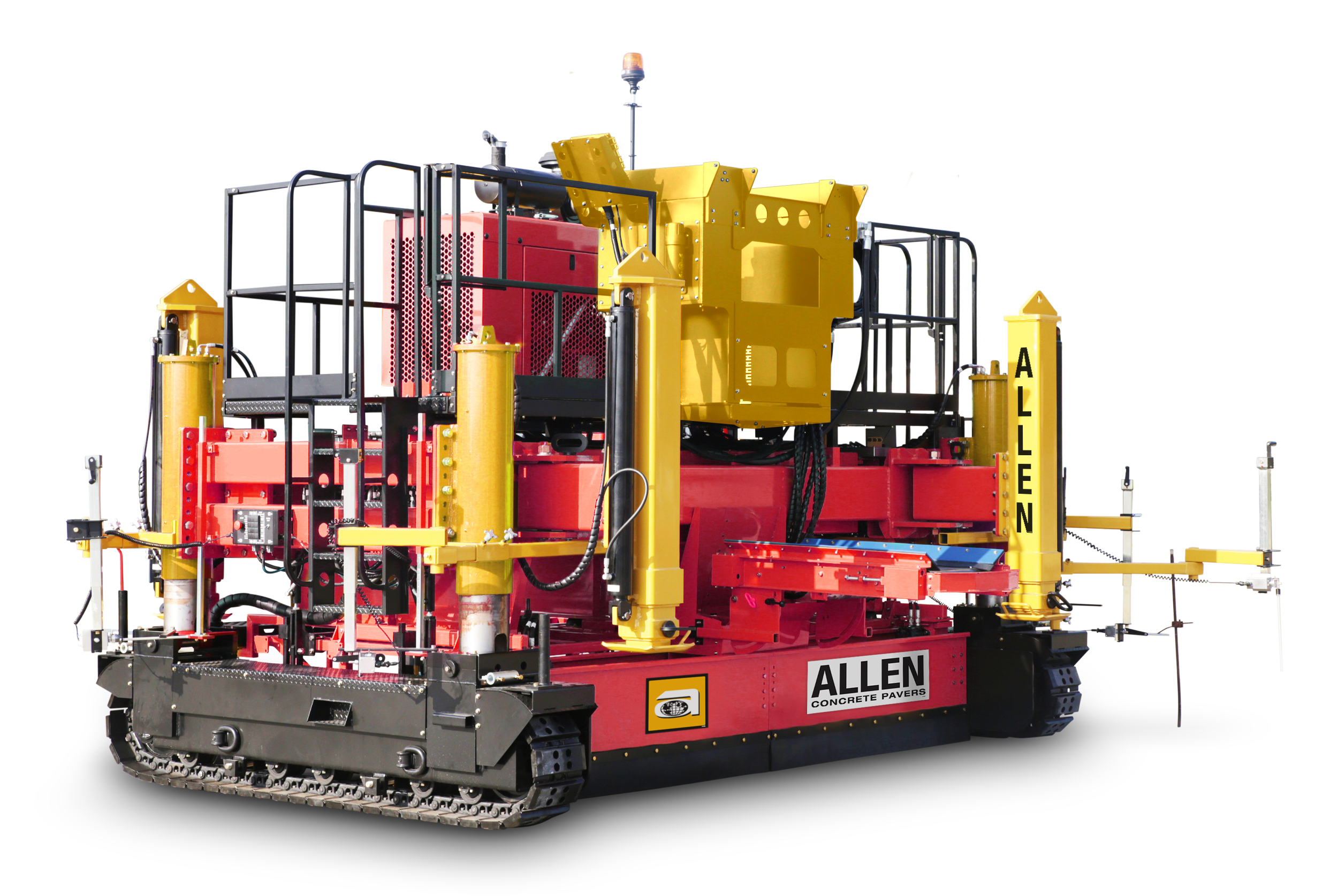

APCP1600
Safety light



Central Operator Controls



Crawler Tracks



Conveyor belt placer with splash guard



Rub skirt helps contain the polyester concrete
