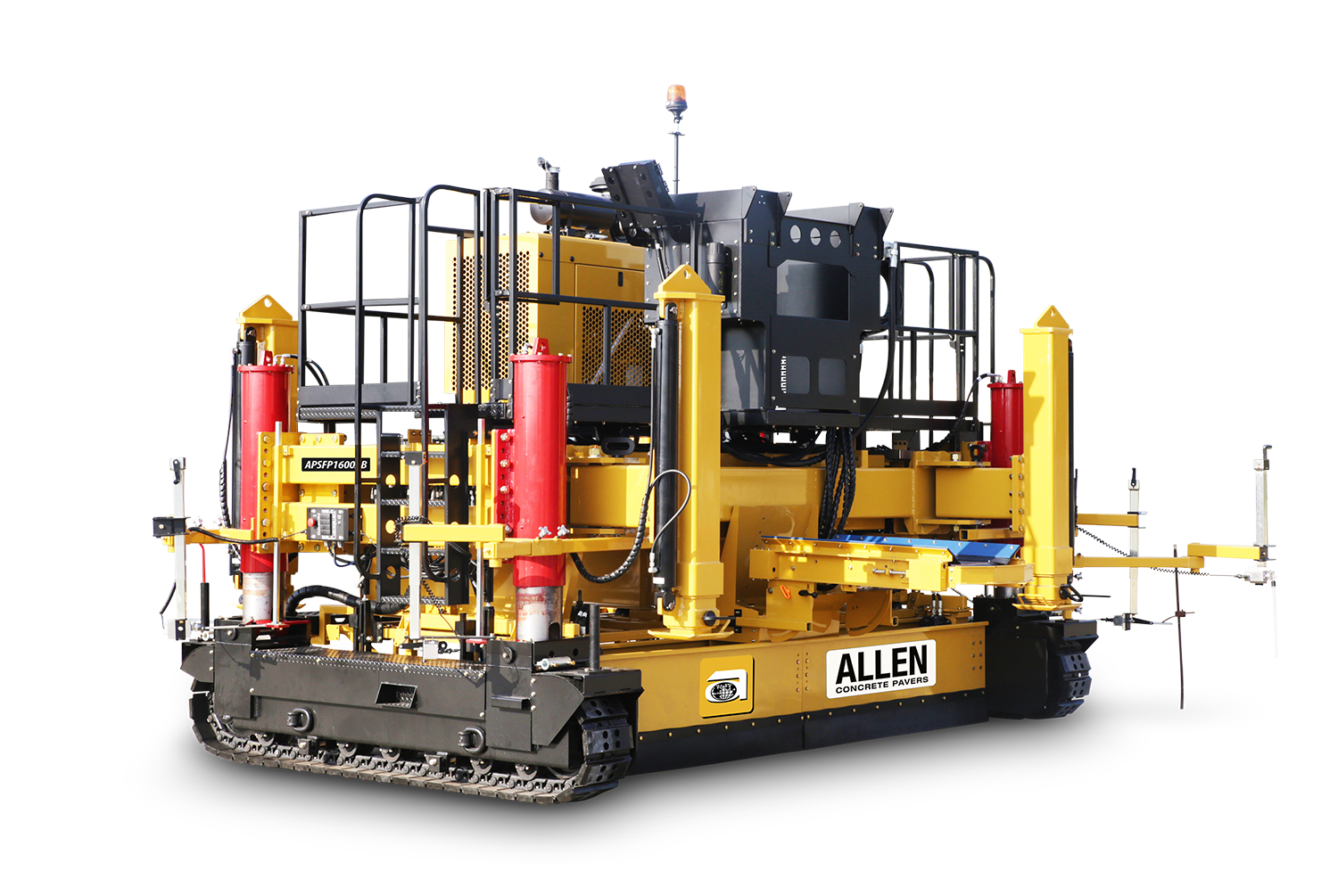

ALLEN CONCRETE PAVER // APSFP1600AB

The Allen 1600 Slip-Form Paver is also designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces, but with the ability to be used in a 12 foot or 16-foot application. The optional conveyor brings material straight from the truck to the auger chamber and disperses it to the paving pan (equipped with Minnich Pan Vibrators ™) where the material is “screeded” to grade, followed by a tinning rake to put a texture on the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. This unit also has a built-in “cross-slope” grade sensing system making sure the final surface elevations meet the project specifications.

Specifications

ENGINE
John Deere 4.5L (T4F)
HORSEPOWER CLASS
173 hp / 129 kW
FUEL TYPE
Diesel
FUEL RESERVOIR
110 gal / 416.4 ltr
PAVING WIDTHS
12 ft or 16 ft / 3.6 m or 4.8 m
PAVING DEPTH
Up to 6 in / Up to 15.24 cm
VIBRATION SYSTEM
6 Hydraulic Pan Vibrators
VIBRATOR CENTRIFUGAL FORCE
1,200 lbs at 9,000 vpm
CRAWLER TRACK LENGTH
10 ft or 12 ft / 3.1 m or 3.6 m
HYDRAULIC OIL RESERVOIR
100 gal / 378.5 ltr
HEAVY DUTY MATERIAL CONVEYOR
Standard
TRANSPORT OPTIONS
Hydraulic Loading Legs
WEIGHT
28,500 lbs / 12,927 kg
TRANSPORT WIDTH (ASSEMBLED)
7.75 ft / 236.2 m
TRANSPORT LENGTH
17 ft / 518.16 m
APSFP1600AB

Training Videos

Polyester Slip Form Pavers
06:17 Min.

This video demonstrates important setup instructions for the Allen Polyester Slip Form Paver - APSFP1600AB.
