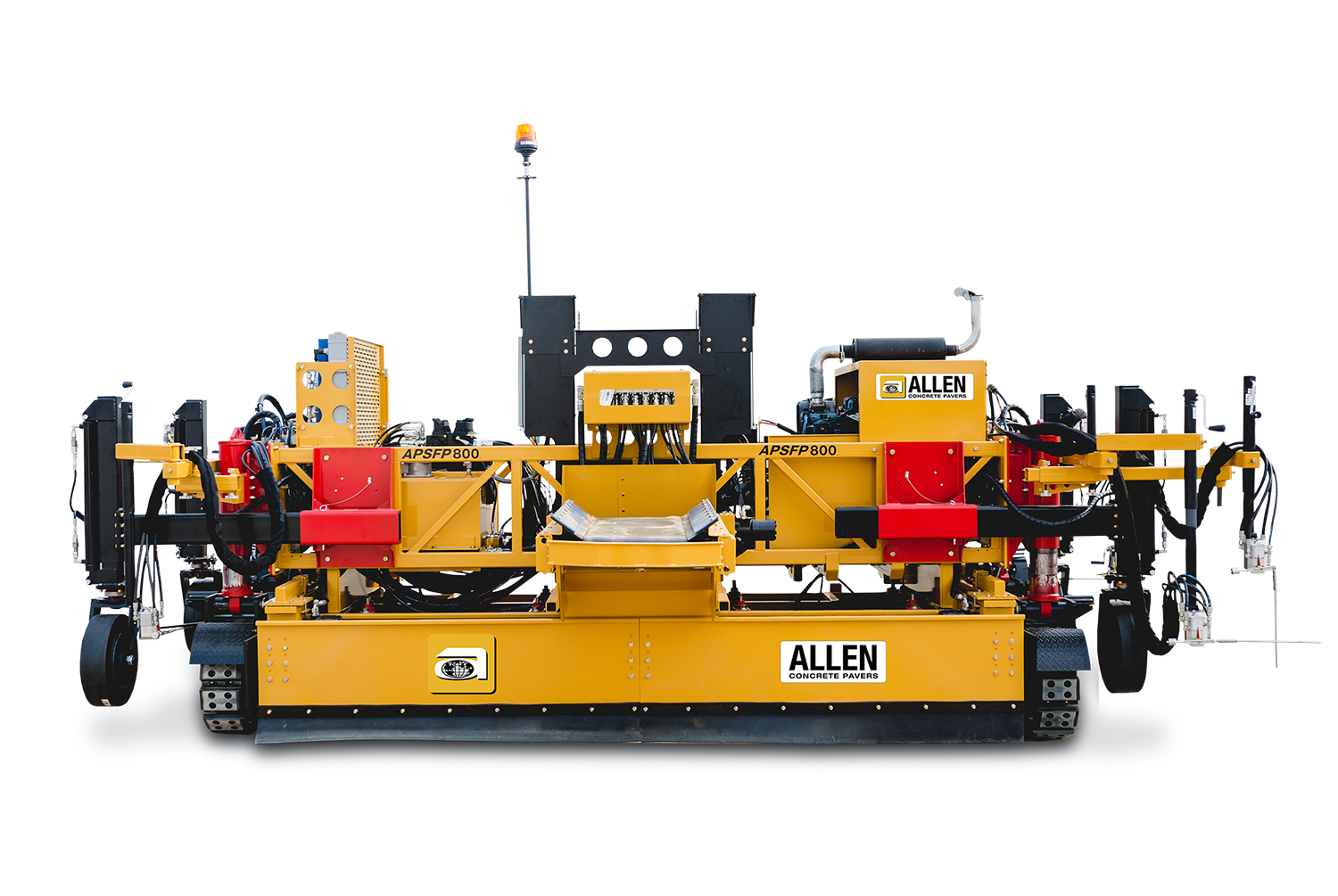

ALLEN CONCRETE PAVER // APSFP800

The Allen 800 Slip-Form Paver was designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces. The standard option conveyor brings material straight from the truck to the auger chamber and disperses it to the paving pan (equipped with Minnich Pan Vibrators ™) where the material is “screeded” to grade and followed by a tinning rake to put a texture on the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. With the travel dolly wheel option, this unit can be mobilized in a timely manner for open traffic lanes. This unit has a built-in “cross-slope” grade sensing system to make sure the final surface elevations meet all project specifications.

Specifications

ENGINE
Liquid Cooled Kubota v3800DI-T-E38 (T3)
HORSEPOWER CLASS
99 hp / 73.8 kW
FUEL TYPE
Diesel
PAVING WIDTHS
12 ft / 3.6 m
PAVING DEPTH
Up to 6 in / 15.24 cm
VIBRATION SYSTEM
6 Hydraulic Pan Vibrators
VIBRATOR CENTRIFUGAL FORCE
1200 lbs at 9000 vpm
CRAWLER TRACK LENGTH
6 ft 4 in / 1.9 m
HYDRAULIC OIL RESERVOIR
42 gal / 158.9 ltr
HEAVY DUTY MATERIAL CONVEYOR
Standard
TRANSPORT OPTIONS
Heavy Duty Transport Wheel w/ Towing Tongue
WEIGHT
14000 lbs / 6350 kg
TRANSPORT WIDTH (ASSEMBLED)
7.75 ft / 236.2 m
TRANSPORT LENGTH
17 ft / 518.16 m
APSFP800
