TRACK BUGGIES // AT14S

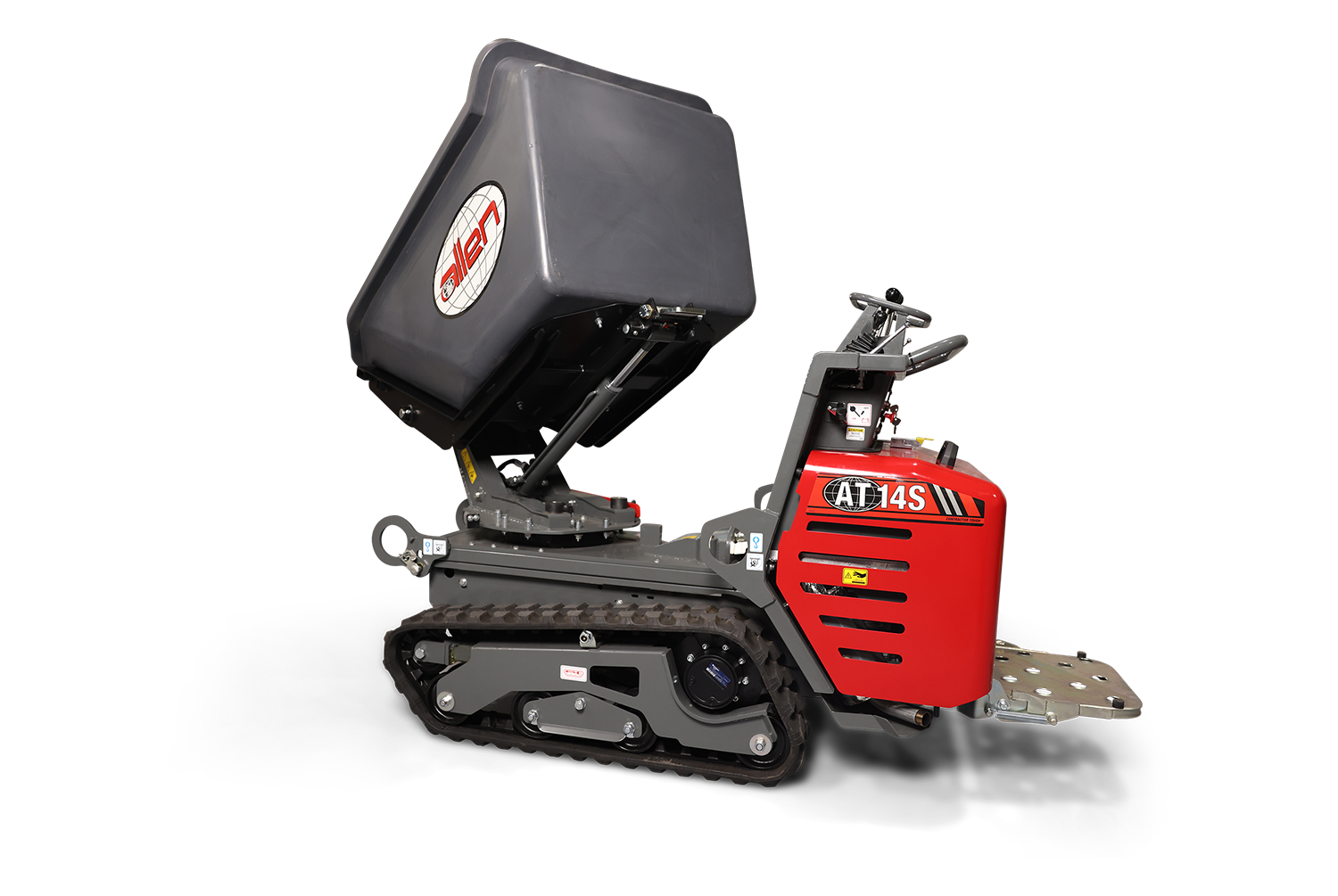

The AT14S rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle and 180-degree pivoting dump, this buggy can place your material exactly where you need it.

Specs FAQ's

Demo

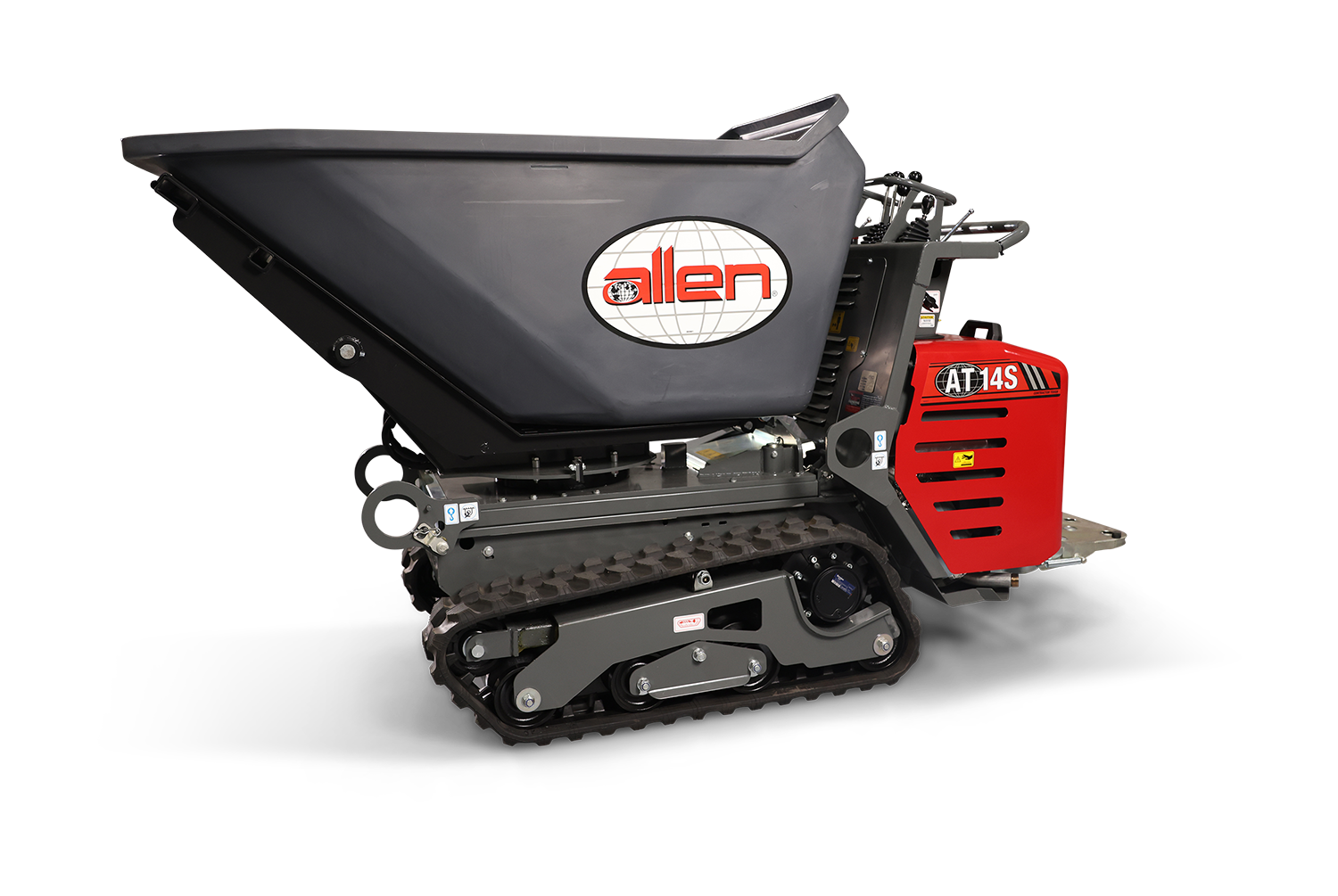

AT14S

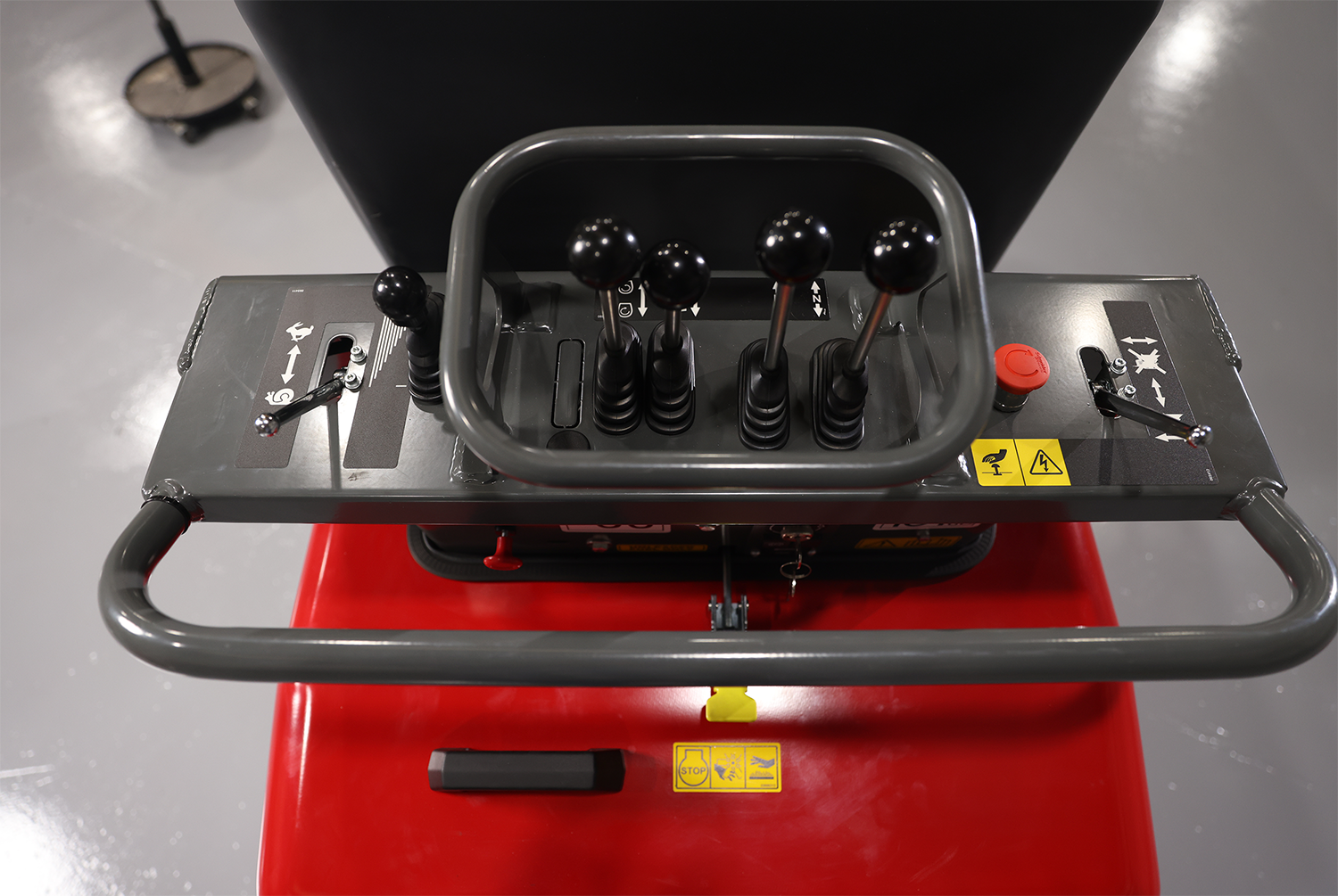

AT14S CONTROLS

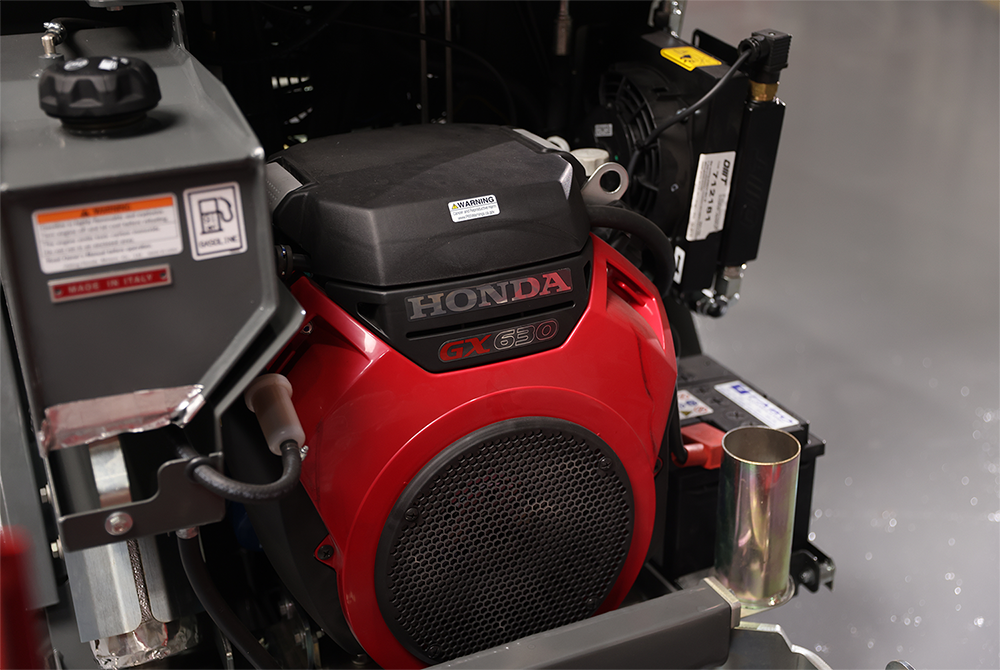

AT14S ENGINE

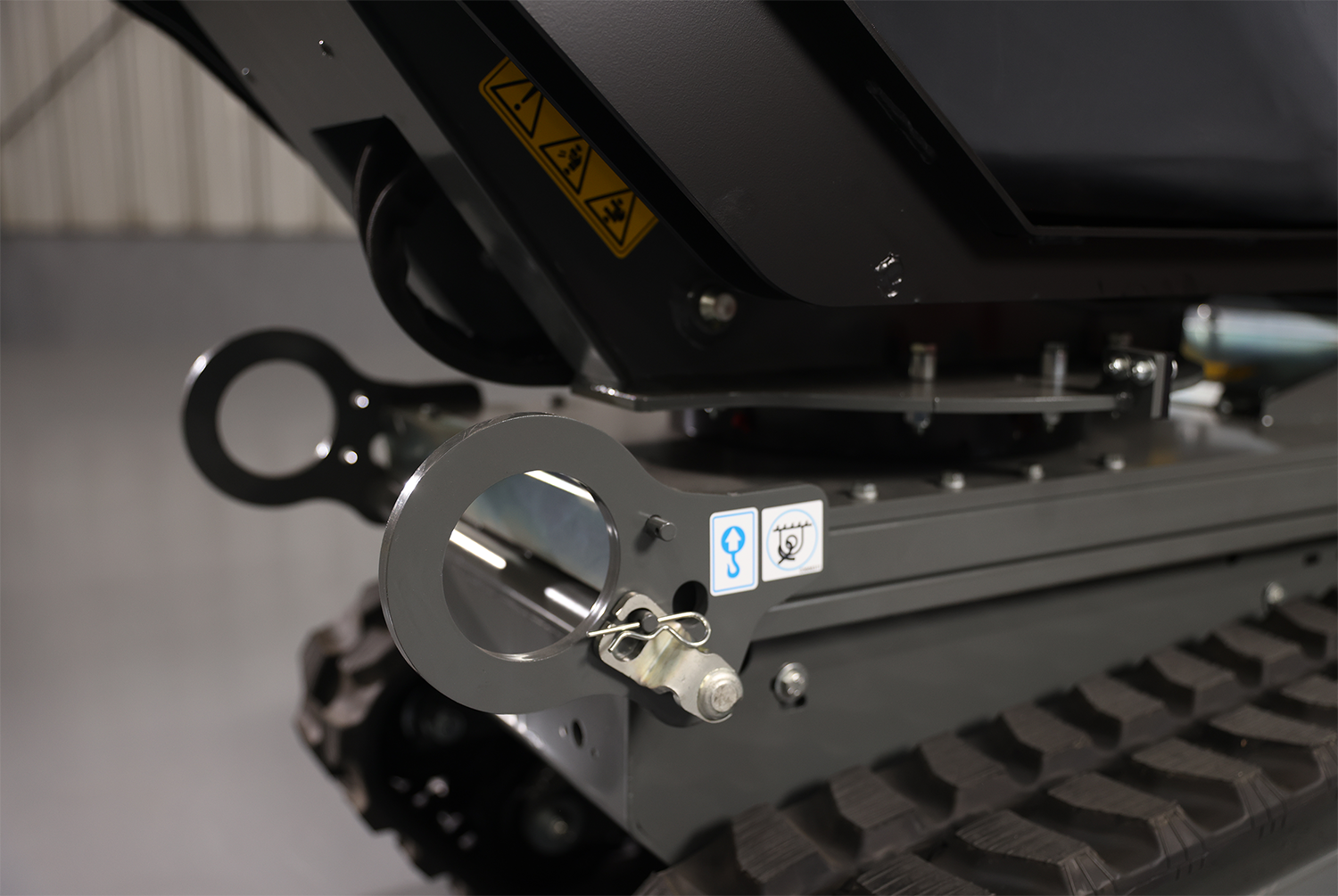

AT14S LIFT HOOKS

Specifications

ENGINE
HONDA GX630 / 688 cc
HORSEPOWER CLASS
20 hp / 15 kW
STARTER
Electric
FUEL TYPE
Gasoline
FUEL CAPACITY
3 gal / 11.35 L
TOP SPEED
WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph
PAYLOAD
2,000 lb / 907 kg
BUCKET CAPACITY
14 cu. ft. / 0.39 cu. m
DUMP ANGLE
90º
DUMP/RETURN SPEED EMPTY
8 seconds
PIVOT ANGLE
180º
WEIGHT
1,540 lb / 699 kg
DIMENSIONS (L X W X H)
98.4 x 31.5 x 54 in / 250 x 84.5 x 137.1 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

AT14S
14 Cubic foot bucket with a 2,100 lb payload capacity



Engine cover fully encloses the engine components



Rubber tracks for extra load capacity and traction



Narrow 31.5" width allows buggy to fit through 36" doors



Tie down ring to secure on a trailer



Poly bucket design allows bucket to be cleaned more efficiently



Hydraulic brake system



Battery shut off switch




FAQ's

Tracks are not rotating properly on one side

1. Check track tension

2. Check belt tension

Dump seems slow or no dump at all on my track buggy

1. Check belt tension on the pump

2. Check the pressure on the pump and adjust to 2000 psi

3. Make sure that no air is in the lines

Hydraulic oil overflows the tank on my track buggy

1. Make sure the correct amount of oil is in the tank

2. Make sure the strainer in the hydraulic tank is not clogged

What oil goes in the hydraulic tank of the track buggy?

20w50 Motor Oil

What should I check daily on my unit?

1. Hardware
2. Hydraulic Level
3. Hydraulic Fittings
4. Grease Points
5. Make sure all controls are operational

What should I check monthly on my unit?

1. Inspect drive belts
2. Lovejoy assembly

What should I check annually on my unit?

1. Service transmission fluid (if applicable)
2. Inspect rollers and tracks/tires

When should I change my hydraulic oil in my unit?

Every 100 hours

How do I set the belt tension on my AT16?

Please see pages 38-41 of your Owner's Manual

What is the max MPH my buggy goes?

All buggies are set with a max speed of 6-7 MPH from the factory

What happens if I put the wrong oil in my hydraulic system?

Your system will underperform and struggle with dumping when loaded
