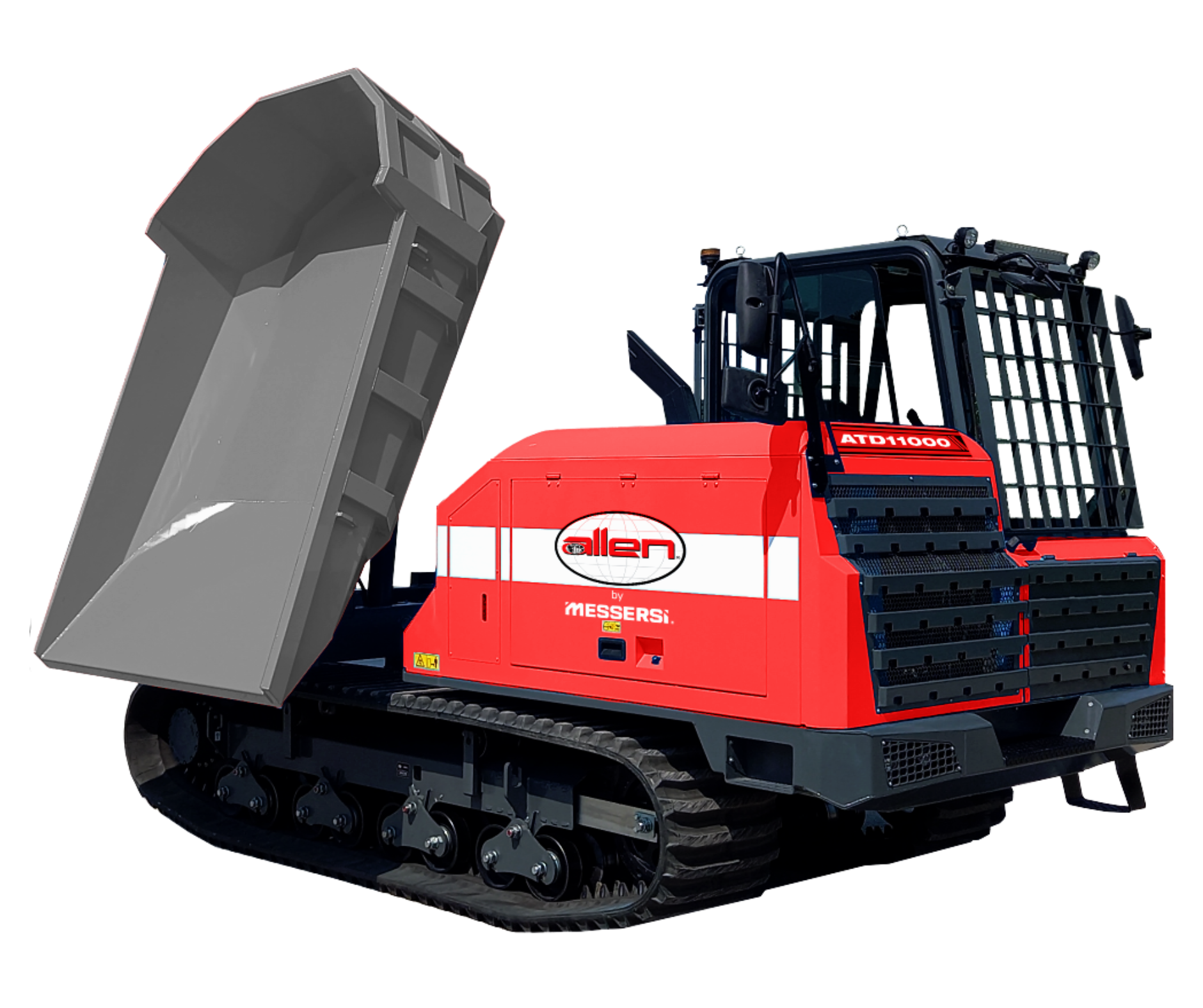

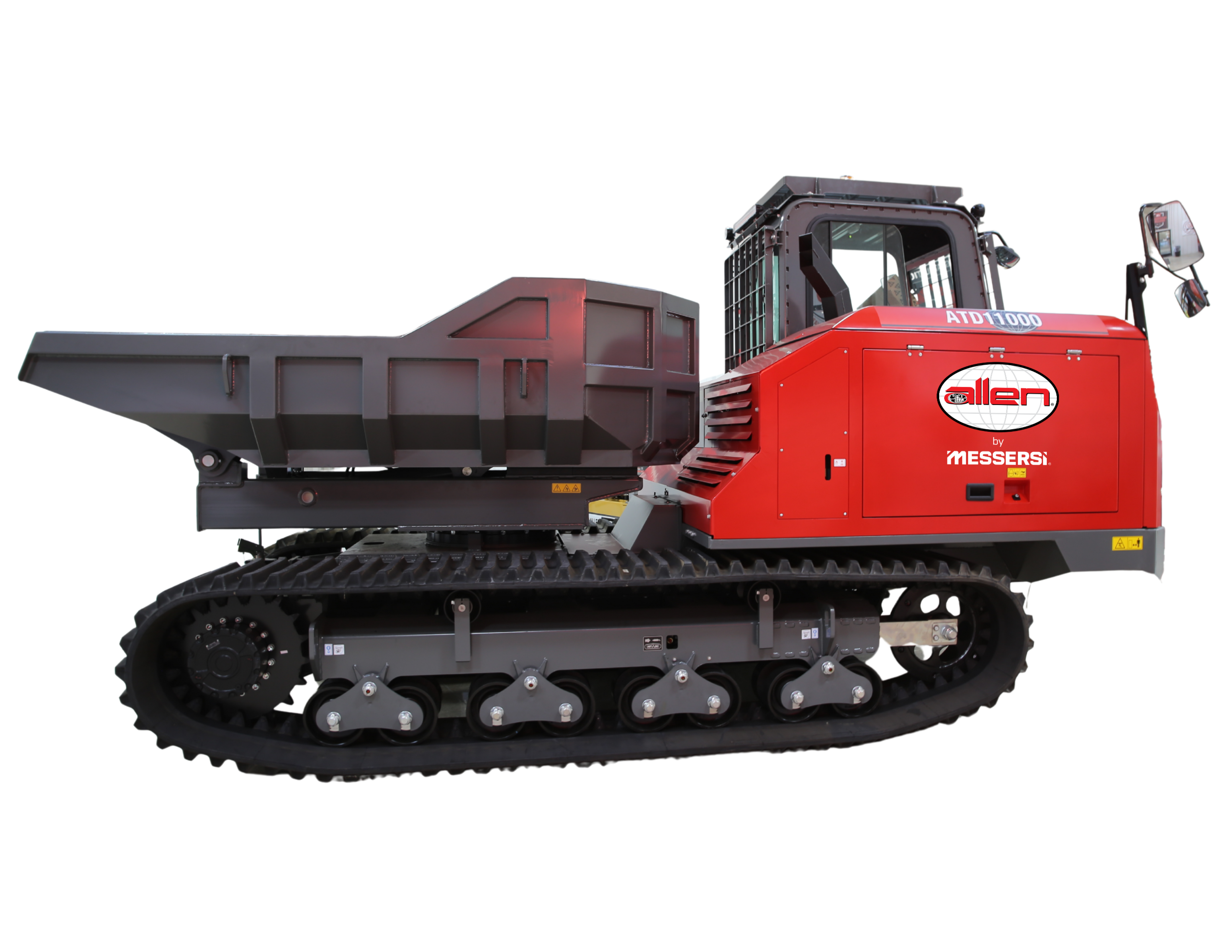

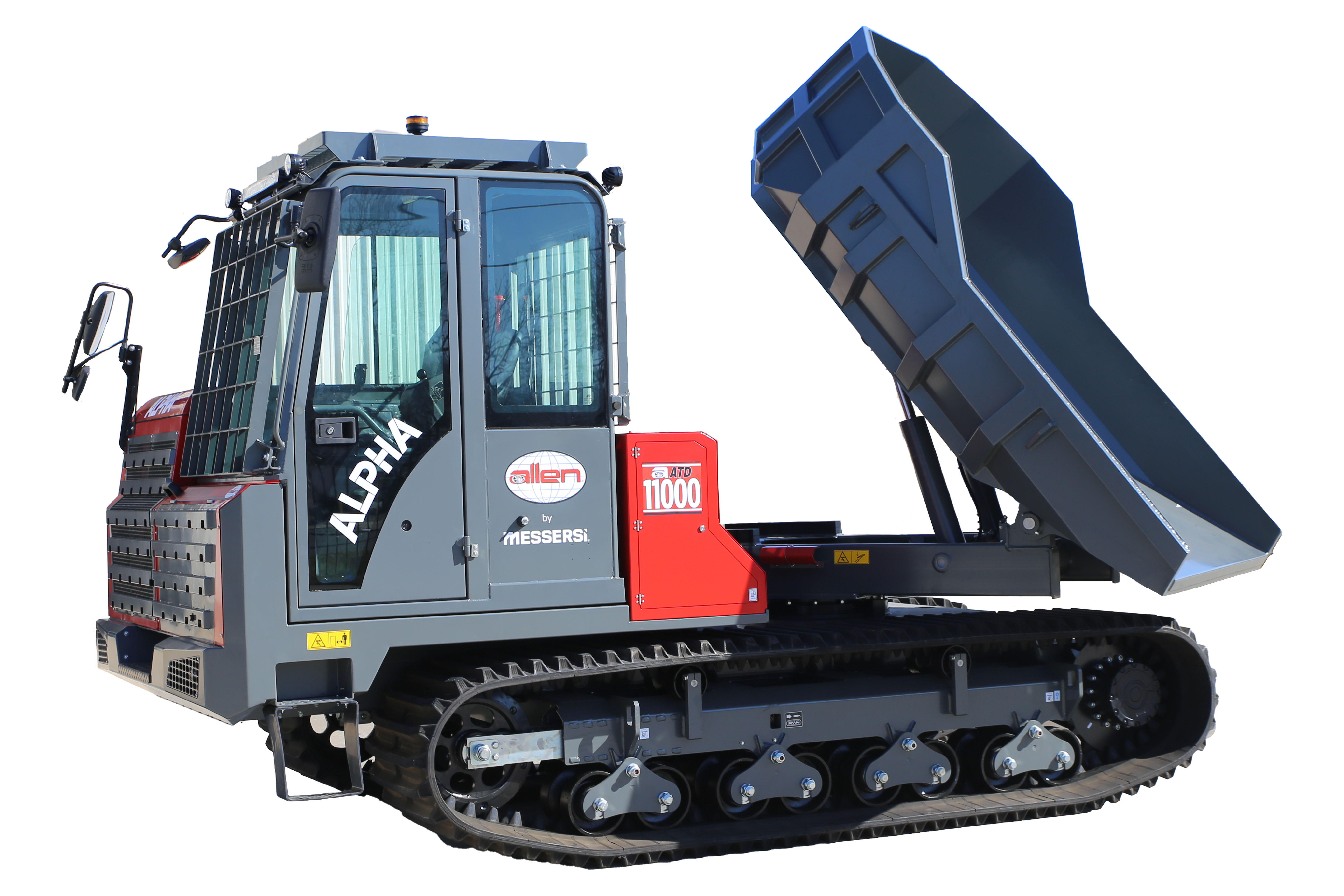

TRACK BUGGIES // ATD11000

Meet the ATD11000 Track Dumper—built for power, precision, and operator comfort. With a 115 HP Perkins turbo diesel engine, 600 mm wide tracks, and a hydrostatic transmission, it’s ready to tackle the toughest terrain. The rotating driver’s seat, joystick controls, and A/C cab keep operators in control and comfortable all day long.

Specs

Demo

Specifications

ENGINE

Perkins 904J-E36TA

HORSEPOWER CLASS

115 hp / 85.9 kW

STARTER

Electric

FUEL TYPE

Diesel

FUEL CAPACITY

33 gal / 124.9 L

TOP SPEED

7.5 mph / 12.07 kph

PAYLOAD

11,000 lb / 5,000 kg

BUCKET CAPACITY

101 cu. ft. / 2.87 cu. m

LIQUID CAPACITY

50 cu. ft. / 1.43 cu. m

DUMP ANGLE

90º

PIVOT ANGLE

180º

WEIGHT

15,432 lb / 7,000 kg

DIMENSIONS (L X W X H)

193.9 x 86.6 x 110.1 in / 492.5 x 220 x 279.7 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

101 cubic foot bucket capacity

Low Specifc pressure tracks which are able to withstand any ground condition

180 rotating driver’s seat with driving sense retention

Closed spacious cabin with Air Conditioning

Easy access to engine for maintenance
