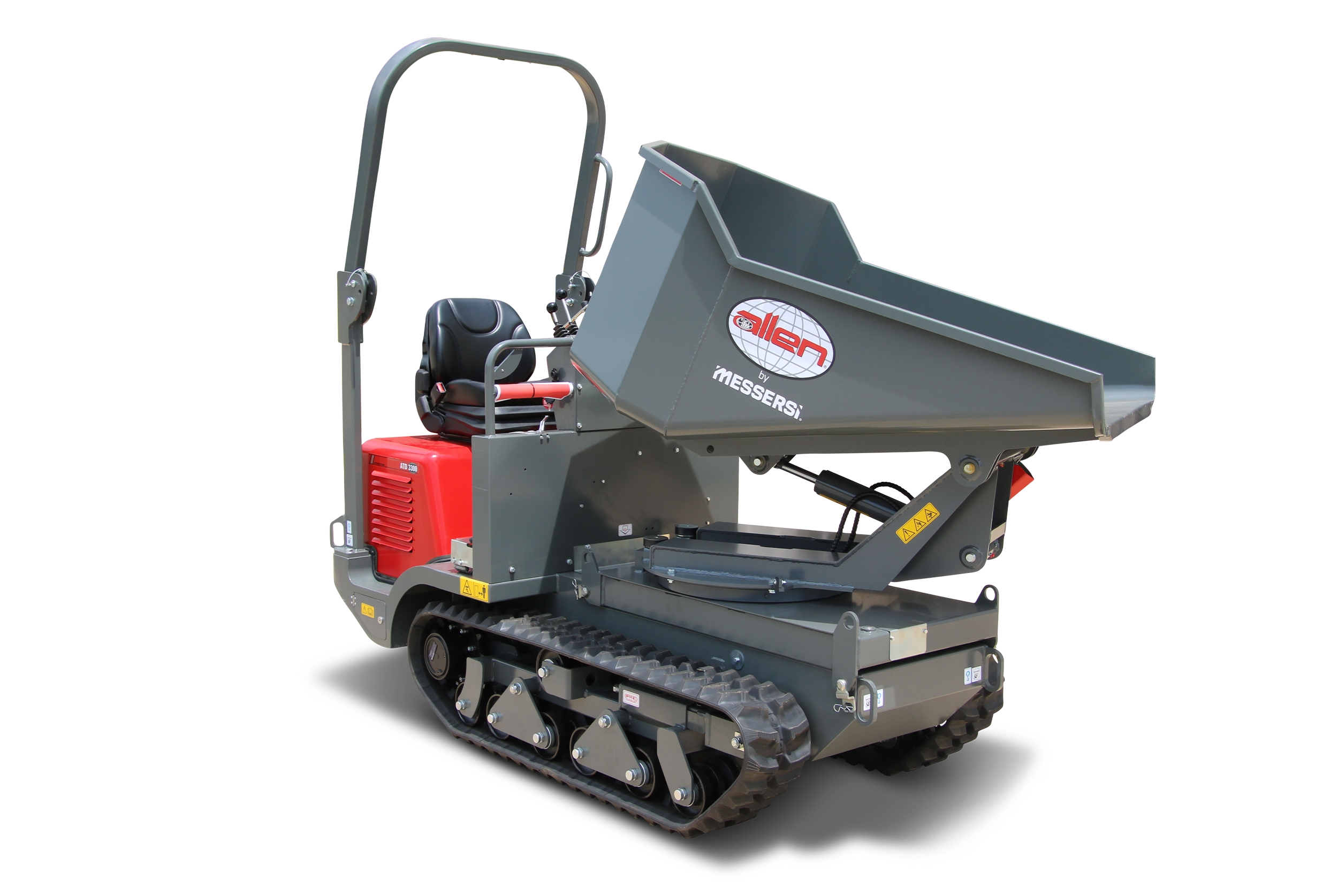

TRACK BUGGIES // ATD3300

The all-new ATD3300 Allen Track Dumper, is here and designed to deliver reliable performance for professional contractors worldwide. With a powerful 20.3 HP Kubota Diesel engine, this ride-on tracked dumper can easily move up to 1 yard of different materials. The ATD3300 comes with a durable steel swivel bucket that can rotate up to 180º, allowing for versatility and easy placement of materials.

Specs

Demo

Specifications

ENGINE

Kubota D902

HORSEPOWER CLASS

20.3 hp / 15.1 kW

STARTER

Electric

FUEL TYPE

Diesel

FUEL CAPACITY

7 gal / 26 L

TOP SPEED

7.5 mph / 12 kph

PAYLOAD

3,300 lb / 1,497 kg

BUCKET CAPACITY

29 cu. ft. / 0.8 cu. m

LIQUID CAPACITY

21 cu. ft. / 0.6 cu. m

DUMP ANGLE

90º

PIVOT ANGLE

180º

WEIGHT

2,930 lb / 1,329 kg

DIMENSIONS (L X W X H)

107 x 43.5 x 99.8 in / 272 x 110.5 x 253.4 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Spacious ground clearance and rubber tracks provide greater mobility at higher speeds

Adjustable operator seat in central rear position with access from both sides

29 cubic foot bucket capacity

Foldable ROPs for operator protection
