TRACK BUGGIES // ATD5000

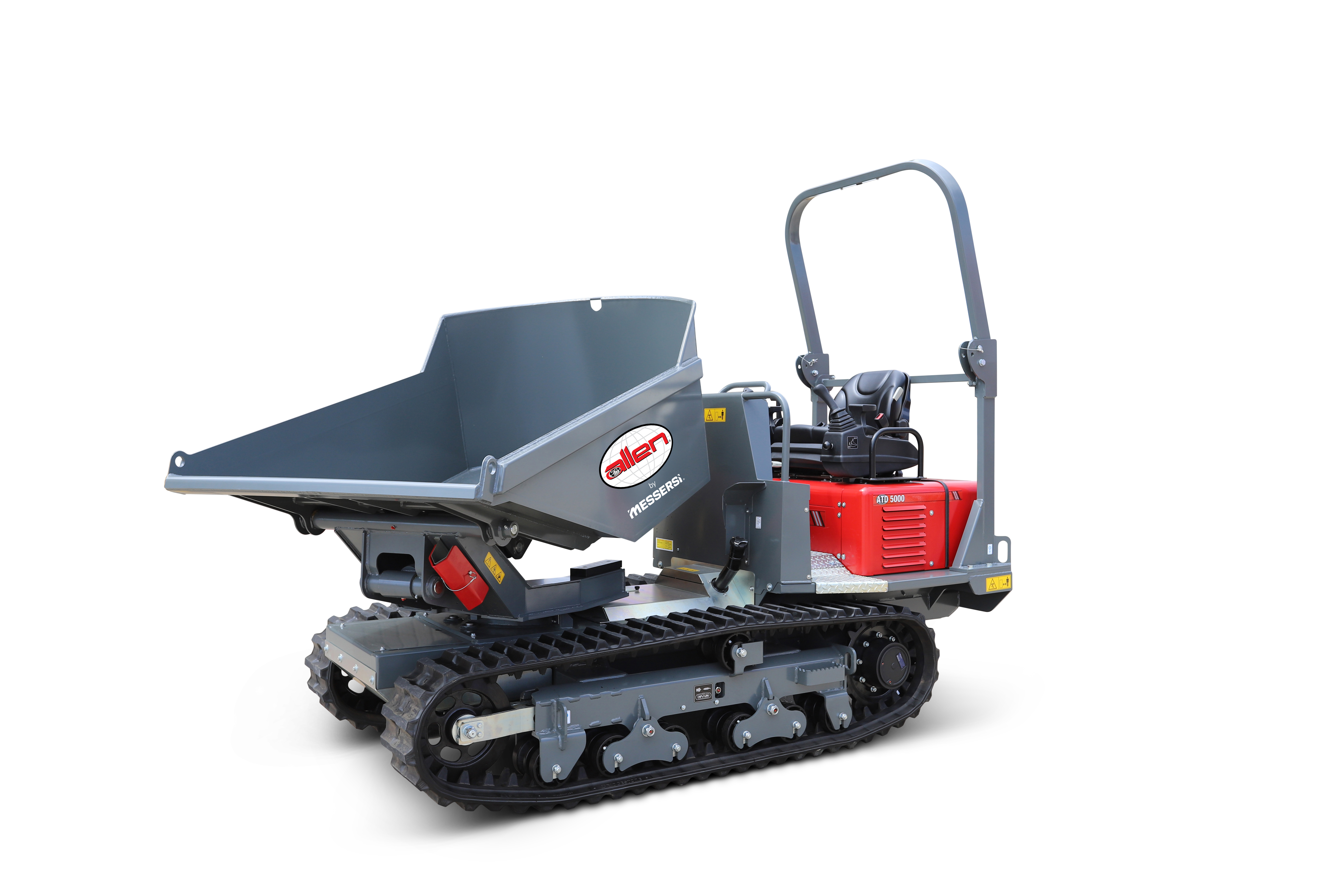

Allen Engineering is proud to present the new ATD5000 Allen Track Dumper. This ride on tracked dumper can move up to 1.5 yards of material and is powered by a robust 24.8 HP Kubota Diesel liquid-cooled engine. The ATD5000 comes fully hydraulic to eliminate wear items such as belts and pulleys and also boasts a 180° swivel bucket allowing for versatility and ease of material placement.

Specs

Demo

Specifications

ENGINE

Kubota V1505

HORSEPOWER CLASS

24.8 hp / 18.5 kW

STARTER

Electric

FUEL TYPE

Diesel

FUEL CAPACITY

7 gal / 26 L

TOP SPEED

5 mph / 8 kph

PAYLOAD

5,000 lb / 2,268 kg

BUCKET CAPACITY

41 cu. ft. / 1.1 cu. m

LIQUID CAPACITY

25 cu. ft. / 0.7 cu. m

DUMP ANGLE

90º

PIVOT ANGLE

180º

WEIGHT

5,038 lb / 2,285 kg

DIMENSIONS (L X W X H)

127.25 x 51 x 99.75 in / 323.2 x 129.5 x 253.4285 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

41 cubic foot bucket capacity

Adjustable operator seat in central rear position with access from both sides

Foldable ROPS for operator protection

Easy access to the Kubota 24.8 hp engine transmission and more

Spacious ground clearance and rubber tracks provide greater mobility at higher speeds
