WHEEL BUGGIES // AW16-K

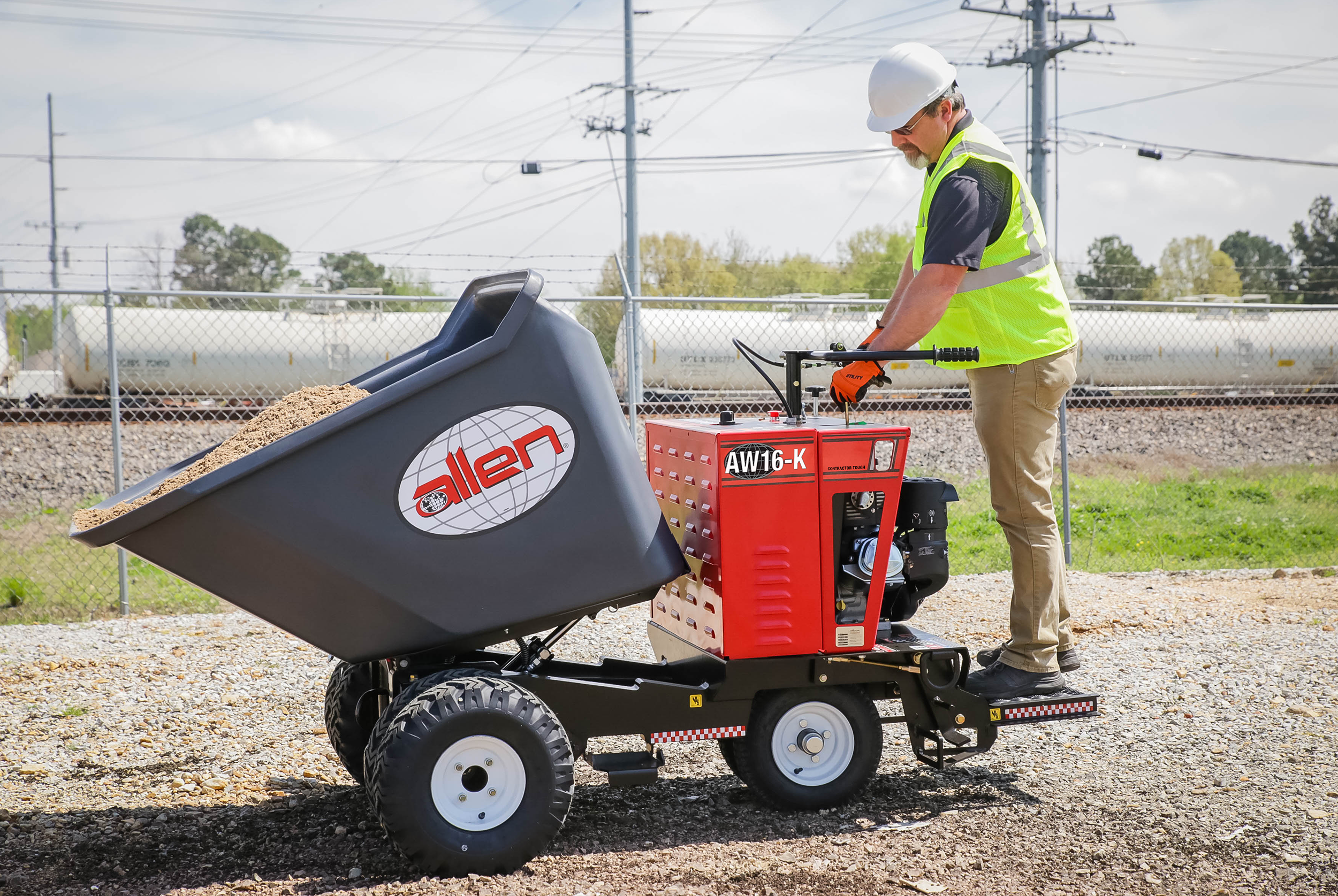

The sixteen cubic foot AW16-K Allen Wheel Buggy comes equipped with a Kohler CH440, with either electric or recoil starter, a fuel capacity of 1.7 gallons, a top speed of seven miles per hour, a sixteen cubic foot bucket, and foam-filled tires. This wheel buggy was engineered with an all-steel frame to perform on the most demanding job sites.

Specifications

ENGINE
KOHLER CH440
HORSEPOWER CLASS
14 hp / 10.4 kW
STARTER
Recoil or Electric
FUEL TYPE
Gasoline
FUEL CAPACITY
1.7 gal / 6 L
TOP SPEED
7 mph / 11.2 kph
PAYLOAD
2,500 lb / 1,134 kg
BUCKET CAPACITY
16 cu. ft. / 0.45 cu. m
LIFT CYLINDER DIAMETER
2 in / 51 mm
DUMP ANGLE
90º
DUMP/RETURN SPEED EMPTY
5 Seconds
WHEELBASE
40 in / 102 cm
TIRES
Foam Filled
WEIGHT
1,365 lb / 619 kg
DIMENSIONS (L X W X H)
97 x 47 x 50 in / 246 x 119 x 127 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

AW16-K
16 cubic foot capacity, heavy-duty poly dump bucket



Hydraulic dump action



Foam-filled tires



2" Solid steel frame



Lowest center of gravity



Foot-operated brake mechanism



Side-to-side forklift pockets



Rear-to-front forklift pockets




FAQ's

Dump cylinder won't dump or is slow on my wheel buggy

1. Check there is no air in the lines

2. Check that the pressure is accurate on the dump valve. This pressure should read 1500 psi.

Engine is growling when throttle is lowered to idle on my wheel buggy

Check that the coupler and jaw element is seated properly and not damaged

Wheel buggy creeps while idle

Adjust the throttle lever bolt under the throttle lever on the pump's left or right until it idles without creeping

What oil goes in the hydraulic tank in the wheel buggy?

10w30 Motor Oil

How many times can you charge the battery of the AW16-B before it needs replaced?

2000 cycles

How long does the AW16-B take to charge?

4 - 6 hours

How long does a charge on the AW16-B last?

4 - 8 hours, depending on conditions
