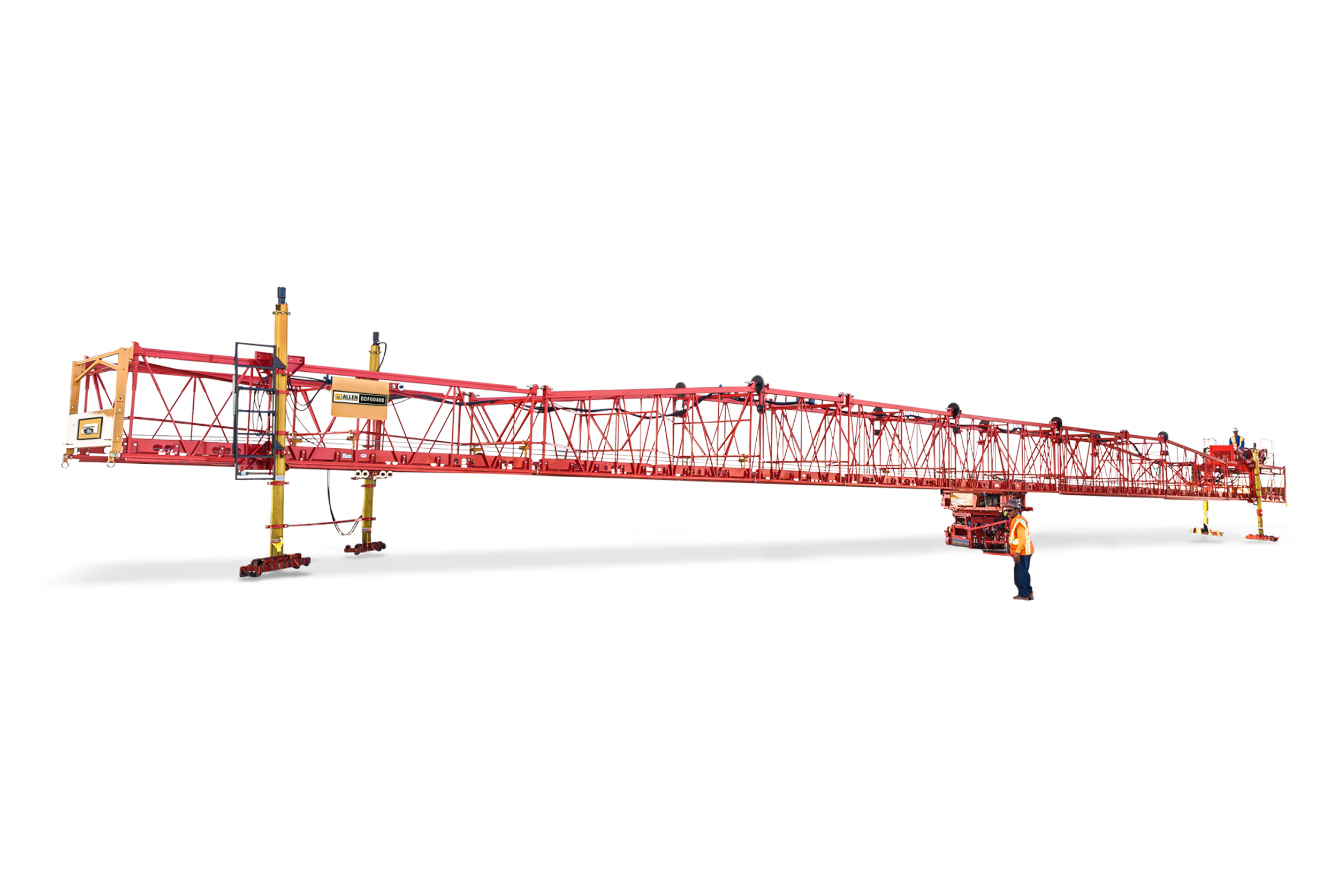

BRIDGE DECK FINISHERS // BDF6048B

The Allen 6048 Bridge Deck Finisher can extend out to 120 feet and pave a width of 114 feet. This machine also has the ability, with transitions truss frames and 66-inch depth frames, to extend up to 170 feet. This deck paver can be used on any full-depth bridge deck. As with the BDF4836, this paver can have additional sections and machine options added to allow the paver to fit any project specifications.

Specifications

OPERATOR'S CONSOLE ENGINE
Air Cooled KOHLER CH740 / 725 cc
HORSEPOWER CLASS
23.5 hp / 17.5 kW
FUEL TYPE
Gasoline (Diesel option available)
PAVING CARRIAGE ENGINE
Air Cooled KOHLER CH740 / 725 cc
HORSEPOWER CLASS
23.5 hp / 17.5 kW
FUEL TYPE
Gasoline (Diesel option available)
MAXIMUM WIDTH
120 ft / 36.5 m
PAVING ROLLERS
Dual 60 in / 152.4 cm
AUGERS
Dual 8 in Adjustable / 203 mm
SECTION WIDTHS AVAILABLE
3, 4, 6, 12 and 15 ft / 1, 1.2, 1.8, 3.7 AND 4.6 M
BOGIES-DRIVER
Two Cupped Wheels - 48 in / 121.9 cm
BOGIES-IDLE
Two Cupped Wheels - 48 in / 121.9 cm
LEGS HEIGHT ADJUSTMENT
48 in (Vertical Adjustment) / 121.9 cm
LEGS (WITH SOLID LEG PLATES)
Powered 6 in / Powered 15.2 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

BDF6048B
Idle End



Bogie Wheel Assembly



Operator Control Panel
