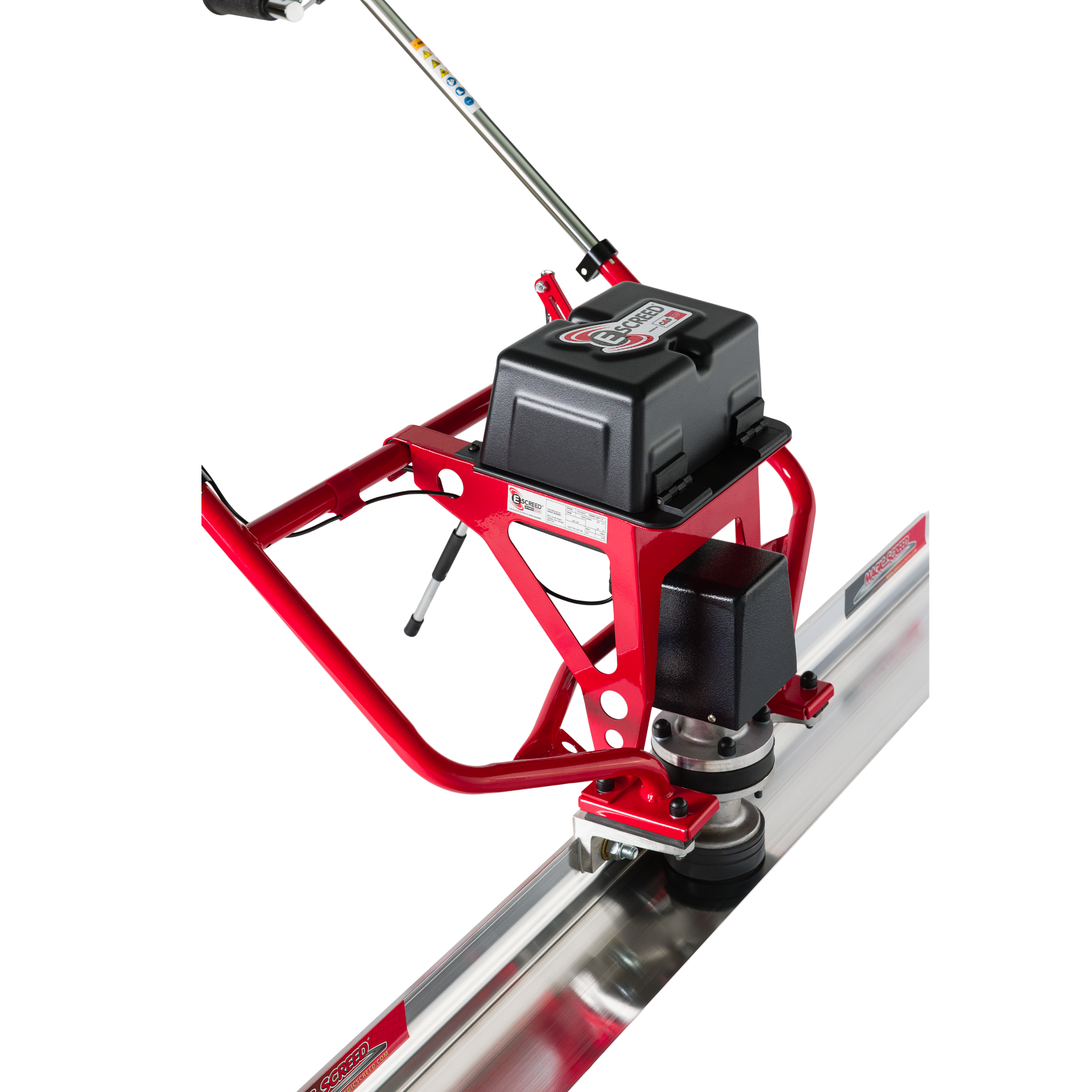

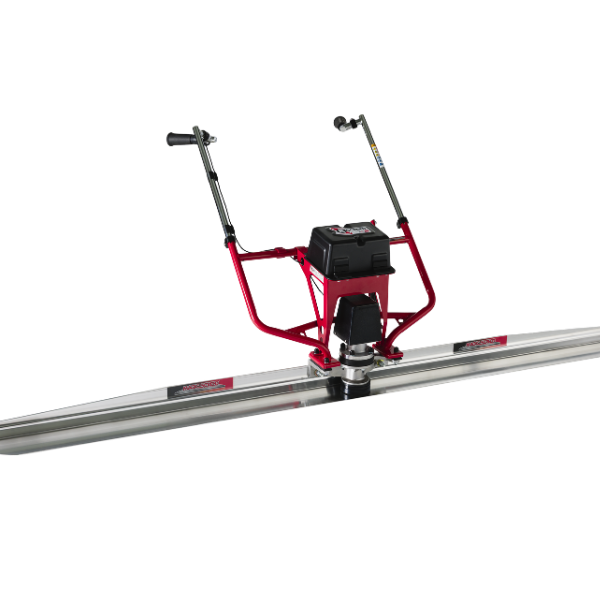

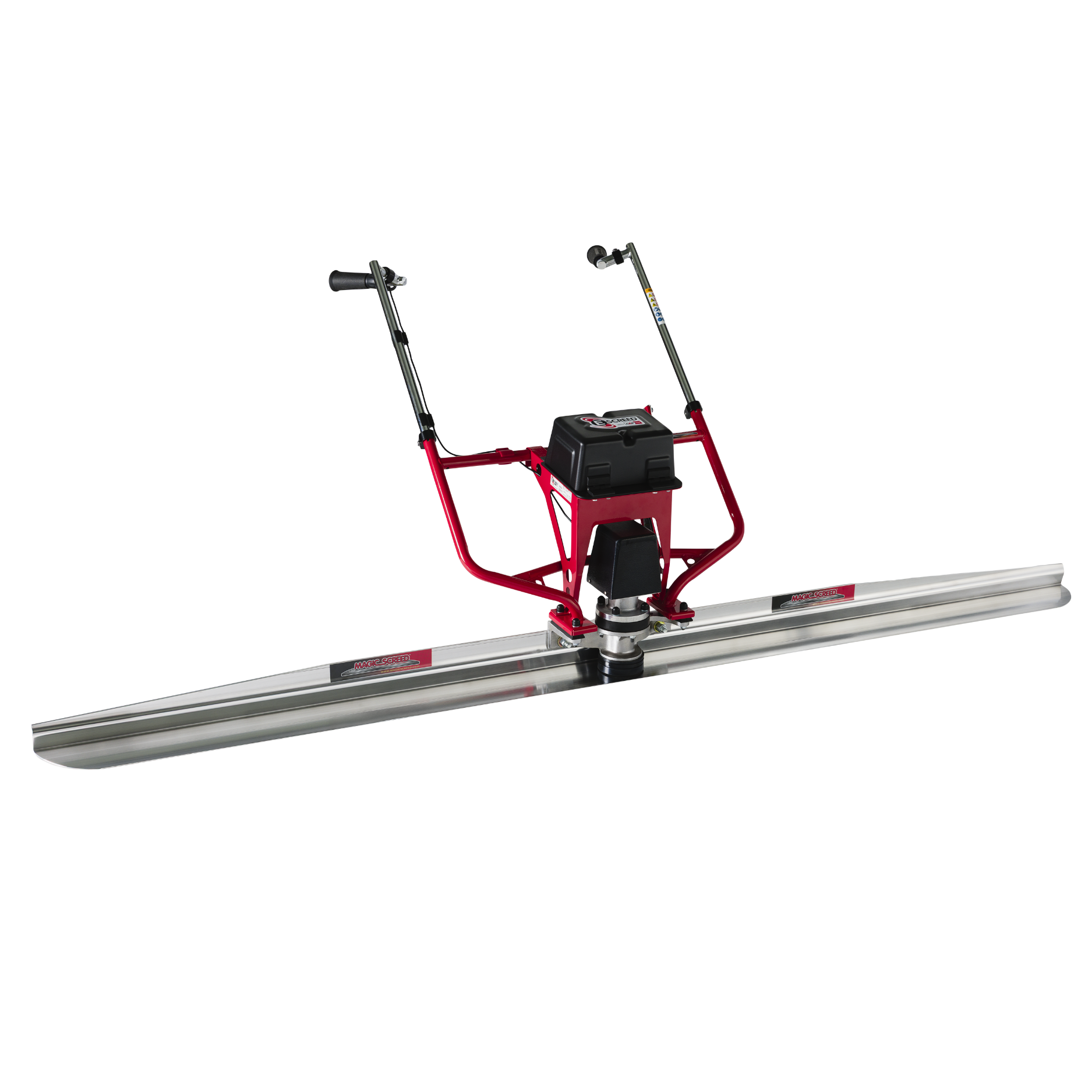

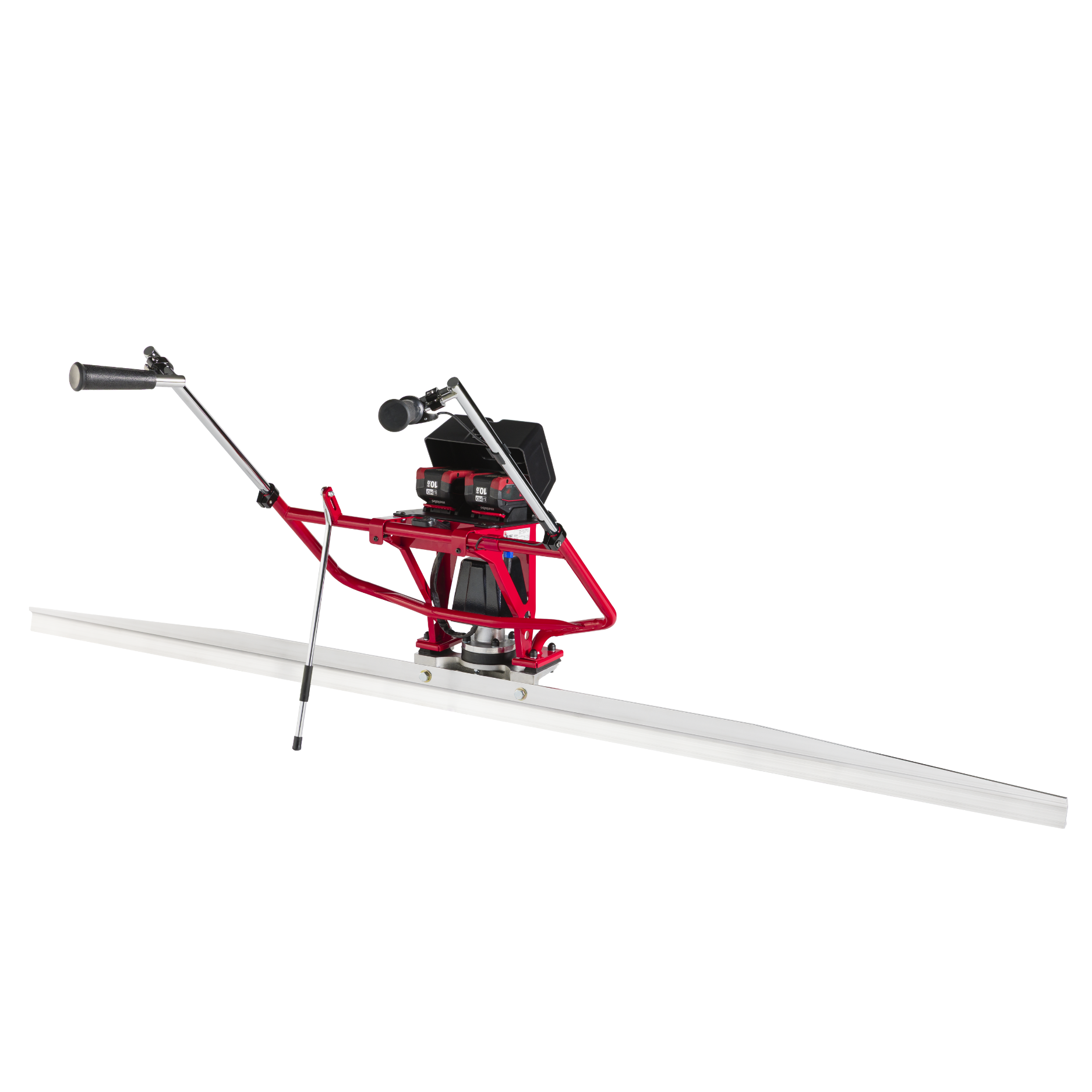

MAGIC SCREED // E-Screed

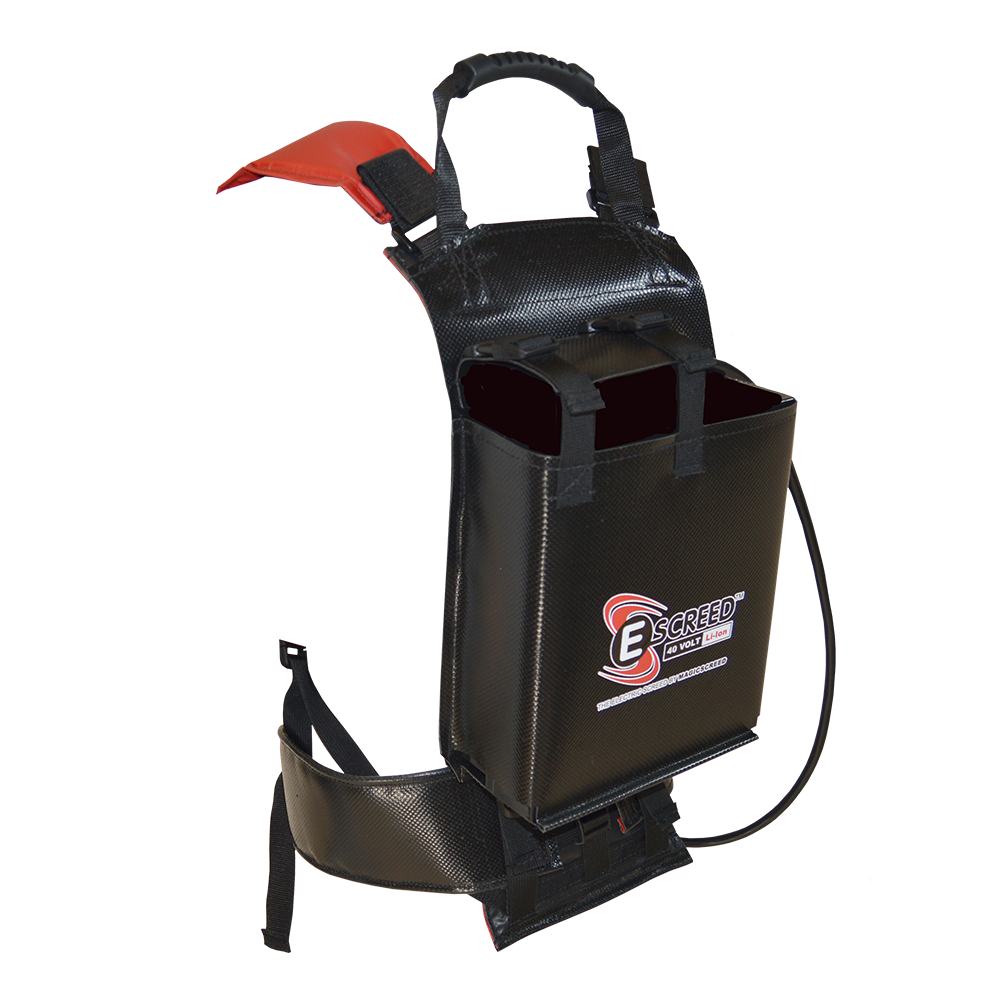

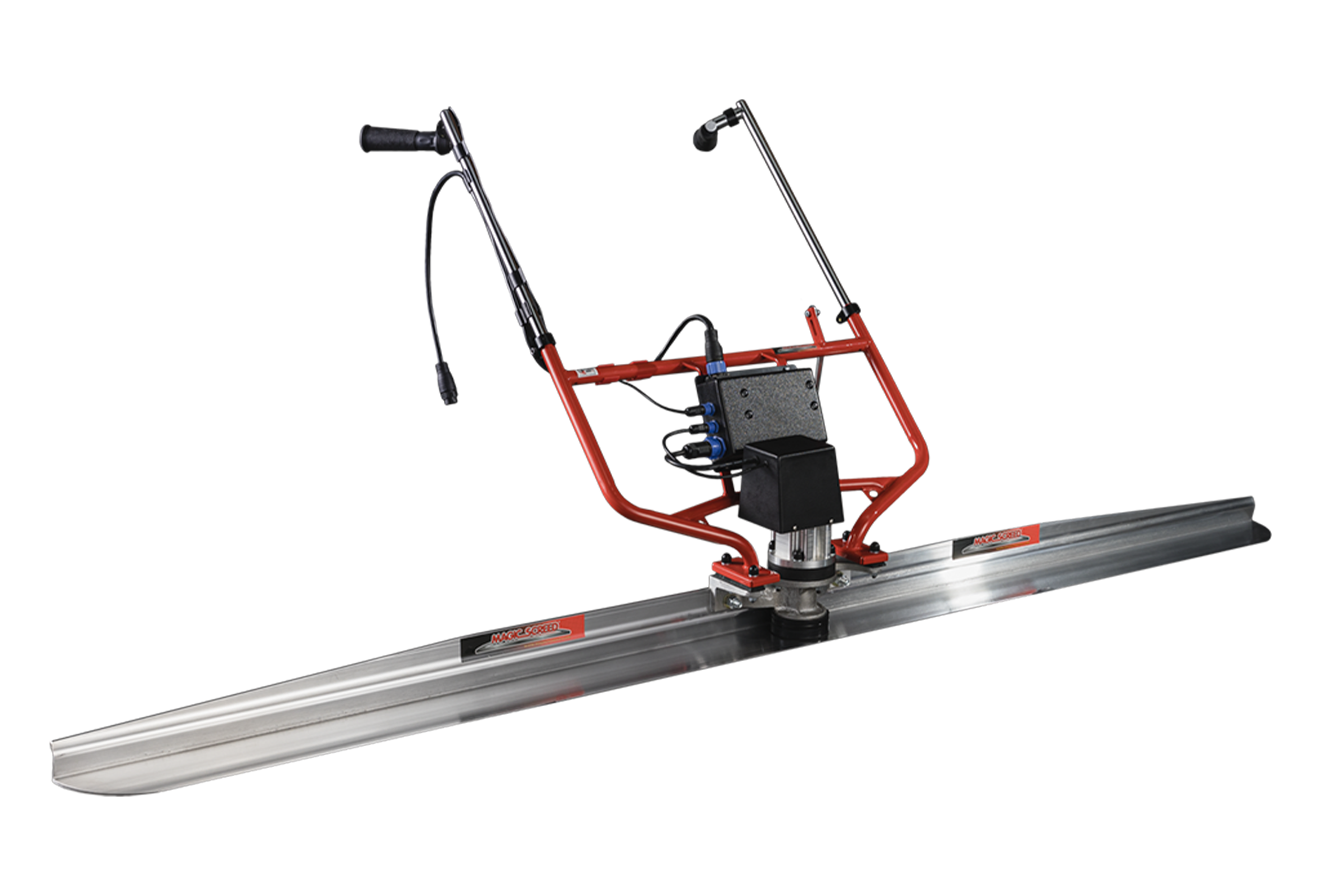

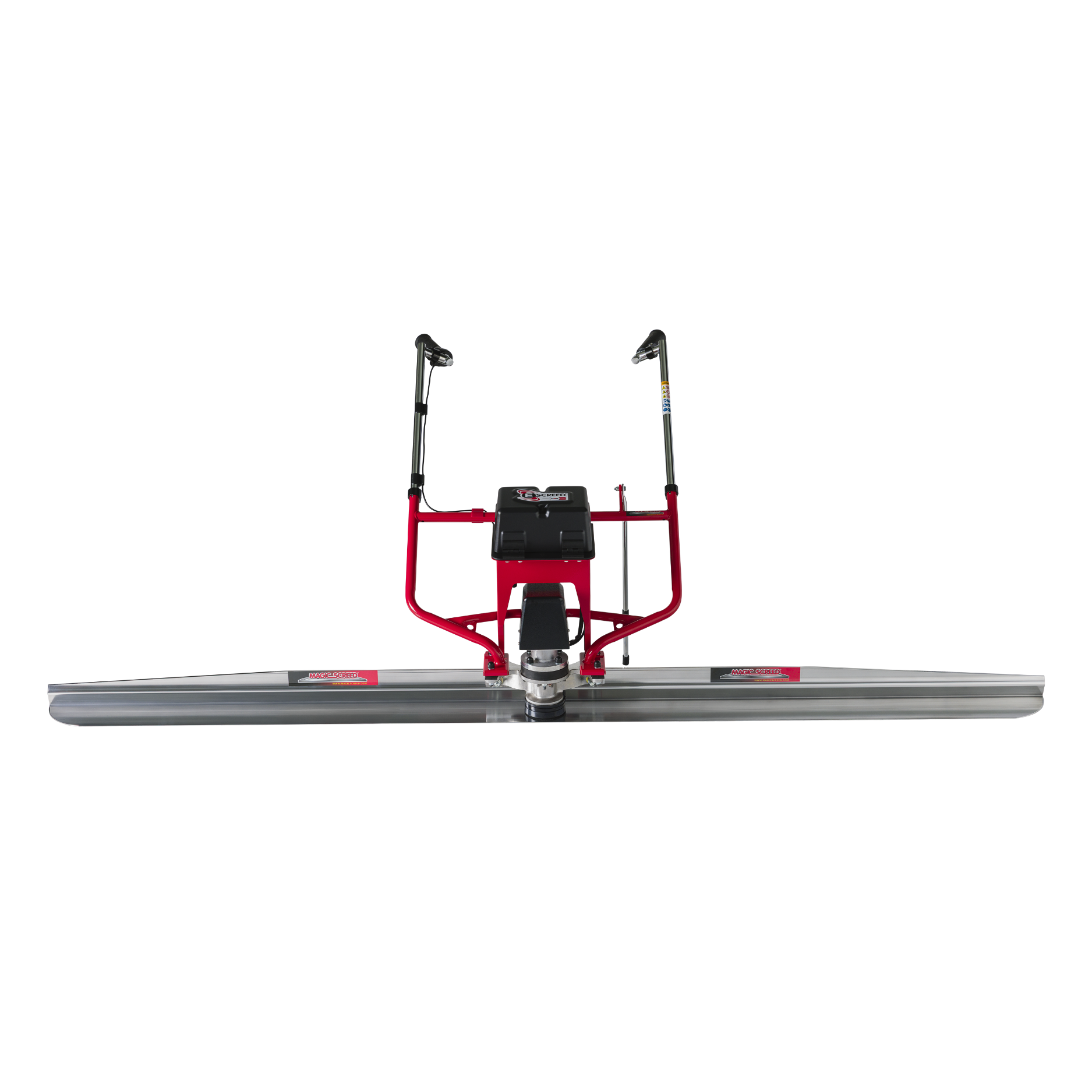

The all-new Magic Screed E-Screed is a precision-engineered, lightweight wet screed for single operator strike-off of concrete. Fast and easy to use, this high-frequency screed provides uniform distribution over the entire blade length, enhancing the structural integrity of the concrete through consolidation. The electric-powered design has the same power and performance as a conventional Magic Screed with the longest autonomy in its field. The E-Screed harness is designed to fit comfortably and is fabricated with durable, easy-to-clean material for use on the most demanding job sites.

Blades Specs

Demo

Blade Weight Blade Widths

6 lb / 3 kg

4 ft / 1.21m

10 lb / 4 kg

6 ft / 1.83m

13 lb / 6 kg

8 ft / 2.44m

16 lb / 7 kg

10 ft / 3.05m

20 lb / 9 kg

12 ft / 3.66m

23 lb / 11 kg

14 ft / 4.27m

27 lb / 12 kg

16 ft / 4.88m

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Specifications

ENGINE

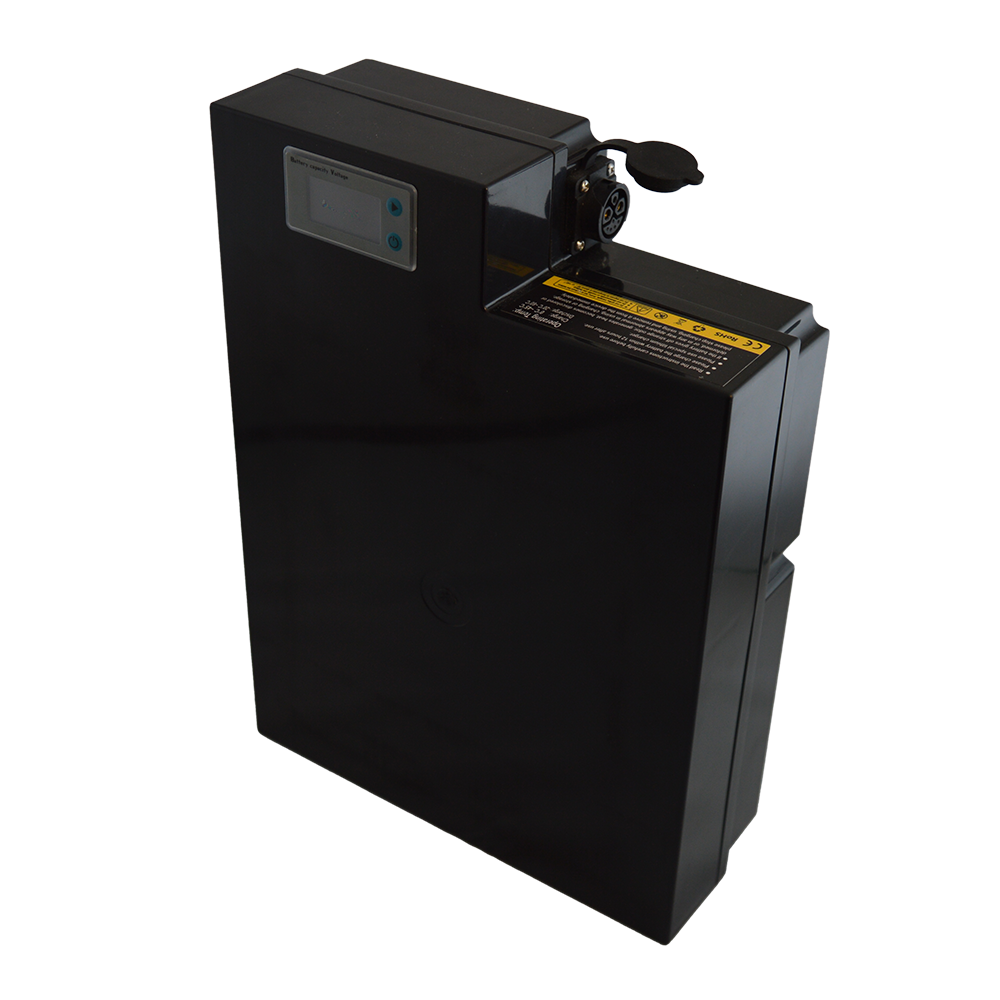

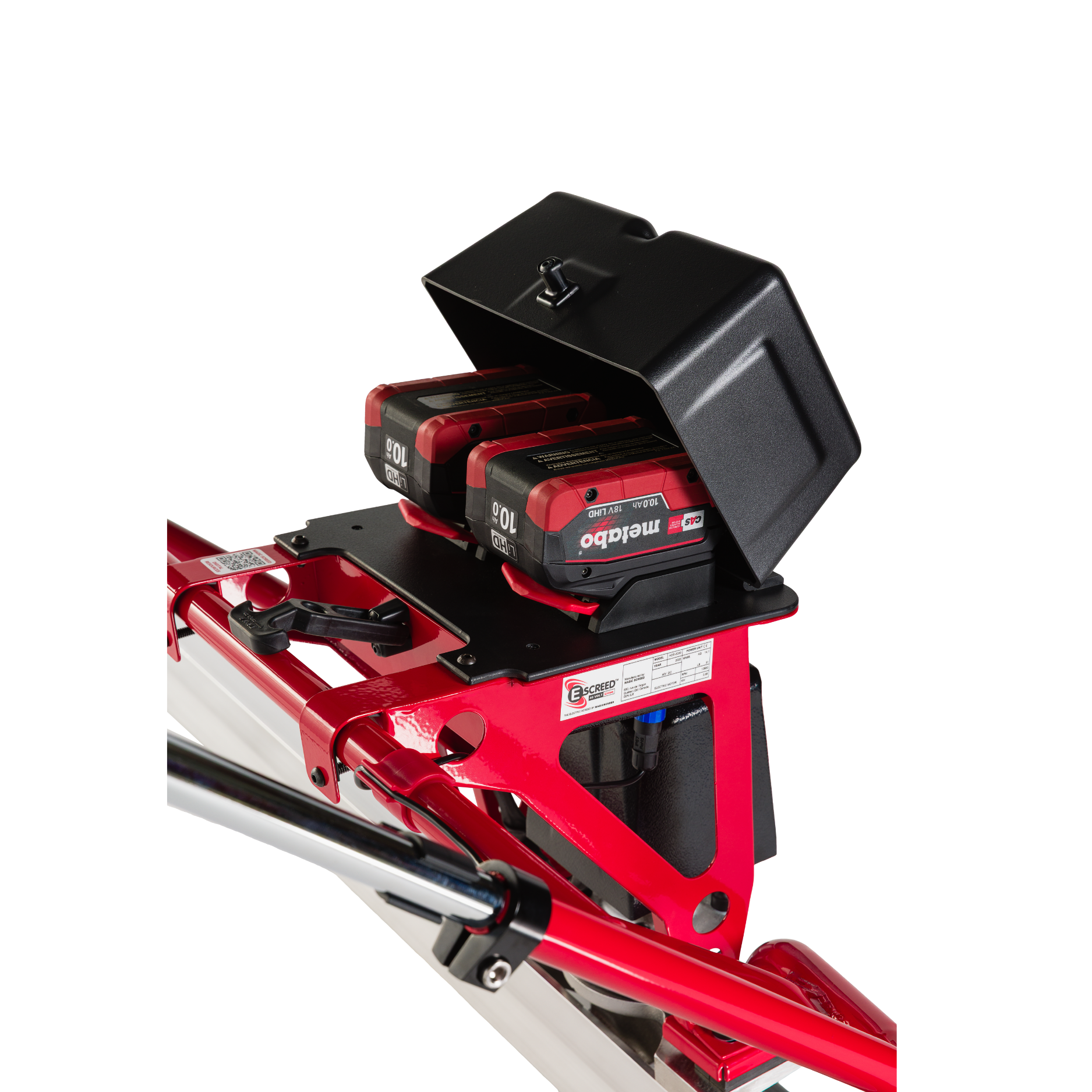

40 Volt Lithium Ion Battery

HORSEPOWER CLASS

1.5 hp / 1.1 kW

WEIGHT

48 lbs / 13.5 kg

HANDLES

Adjustable

VIBRATION FREQUENCY

7,500 rpm

CONSOLIDATION DEPTH

Up to 6" / 15.24 cm

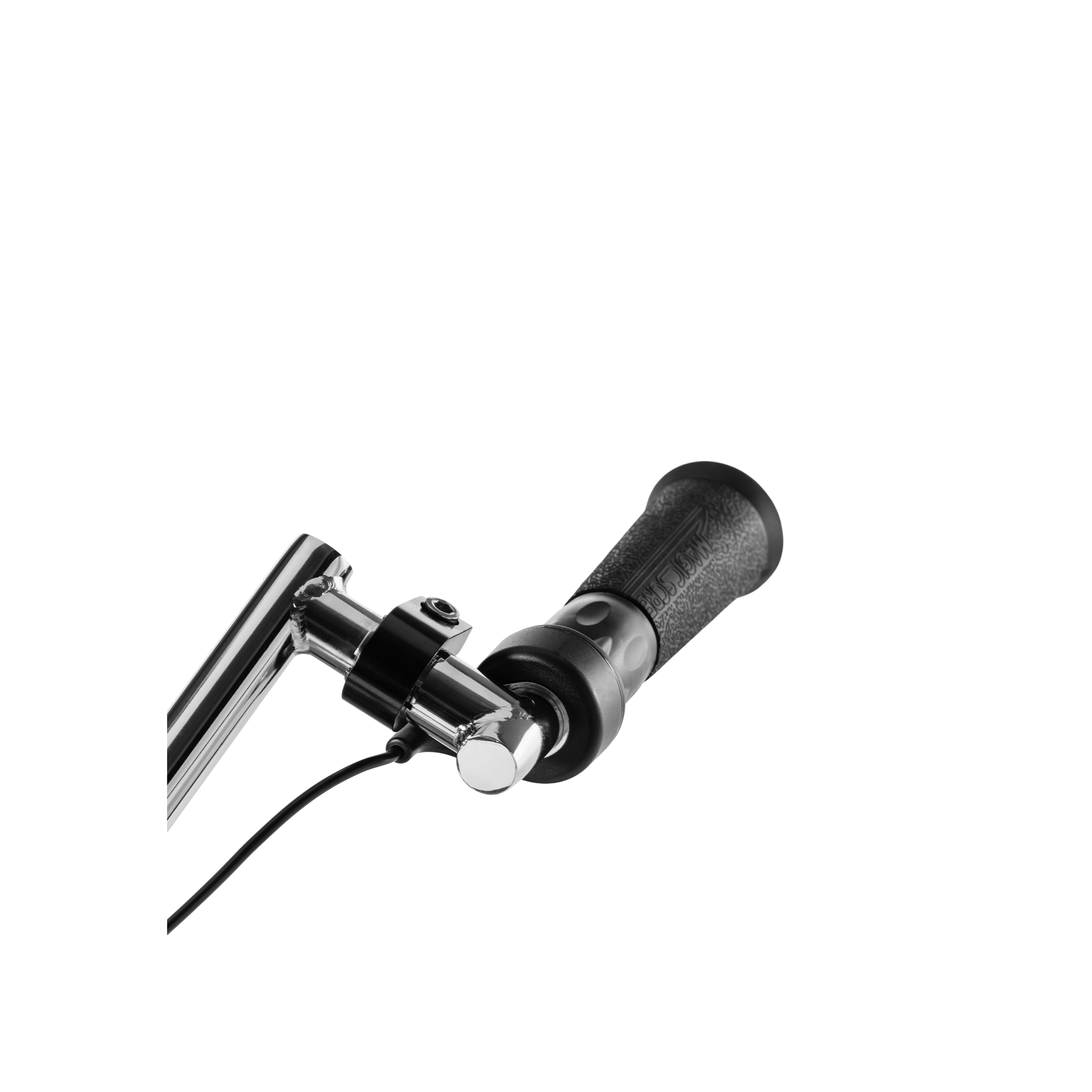

Adjustable handles

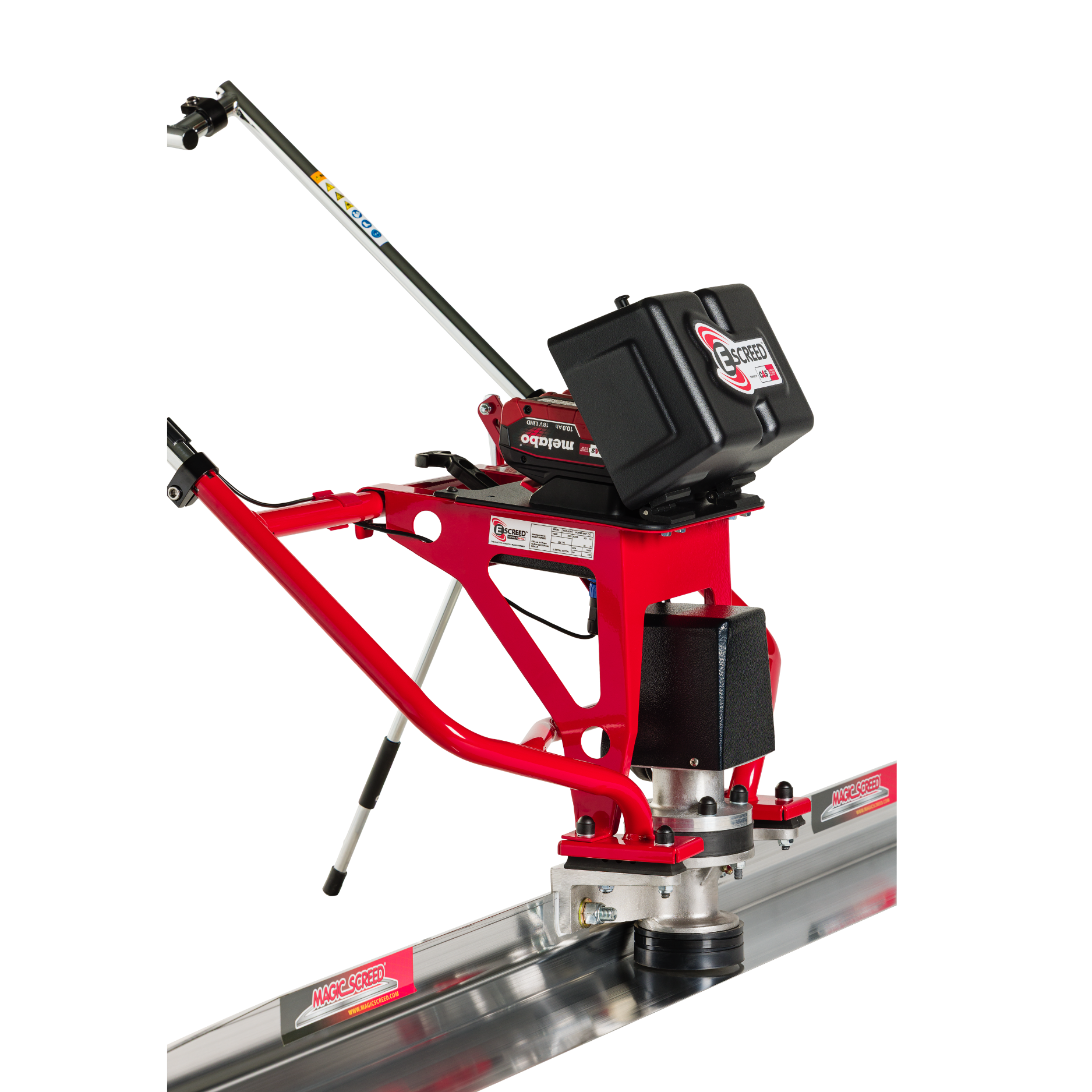

Drive box

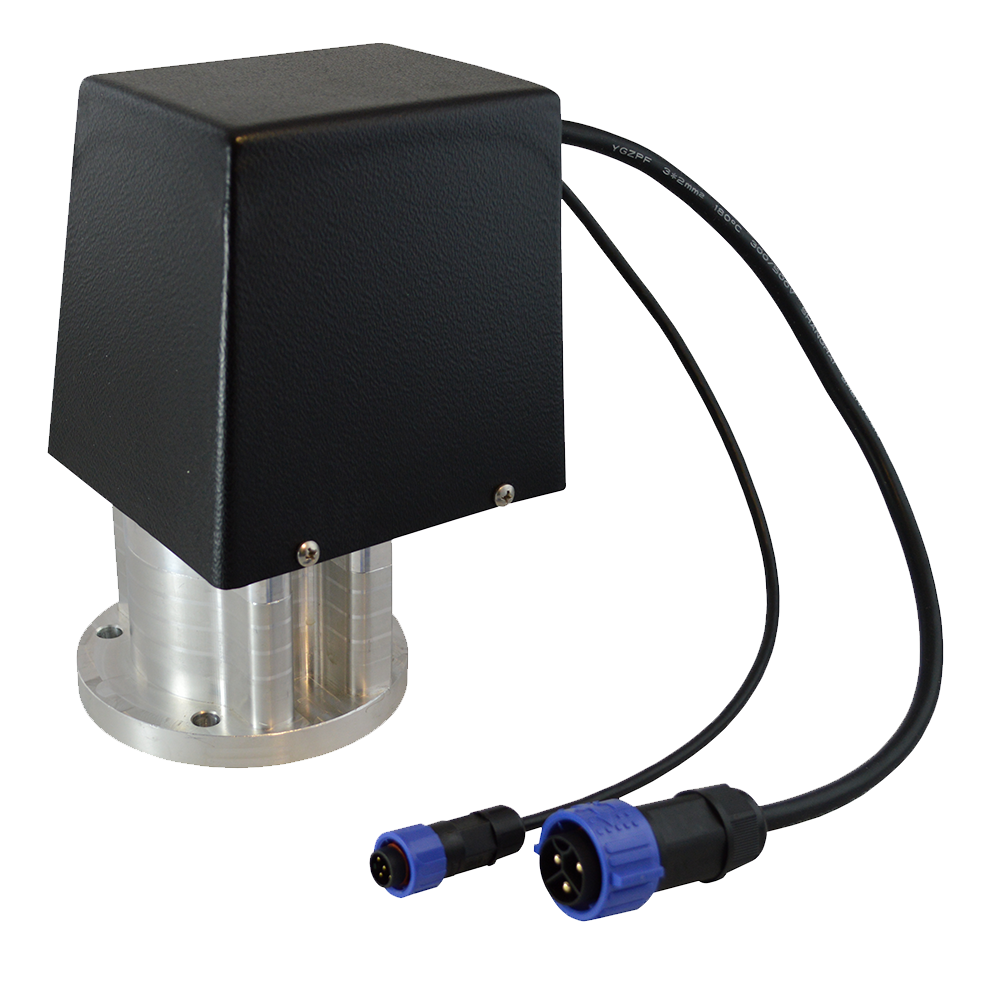

Motor and gearbox

Anti-vibrating system to focus vibration on the blade, not the handle

Quick change screed blade

Carrying bar

Power unit connector
