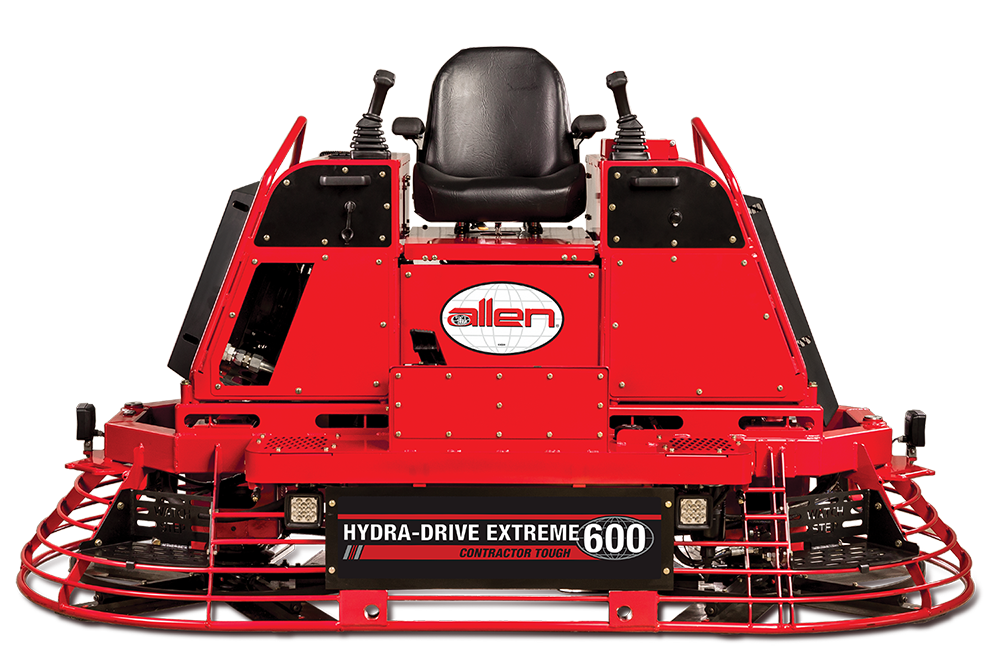

RIDING TROWELS // HDX600

The HDX600 was designed with the high-volume flatwork concrete contractor in mind. This riding trowel comes with dedicated panning/finishing modes, digital readouts for accurate fuel levels and diagnostics, and a large 13-gallon fuel tank for longer run times. It is also equipped with powerful pumps that help maintain excellent torque even at high rotor speeds. This makes the machine excellent for panning or finishing operations.

Specifications

ENGINE
Hatz 3H50TIC
HORSEPOWER CLASS
50 hp / 37.3 kW
FUEL TYPE
Liquid-Cooled Diesel
PANNING PATH WIDTH
100 in / 254 cm
ROTOR DIAMETER
46 in / 117 cm
MAXIMUM ROTOR SPEED
160 rpm
STEERING CONTROL SYSTEM
Power
FUEL CAPACITY
13 gal / 49 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
2,194 lb / 995 kg
DIMENSIONS (L X W X H)
107 in x 52.5 in x 61 in / 271.8 x 133.4 x 154.9 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

HDX600
Electric spray control and electric pitch control on the joystick

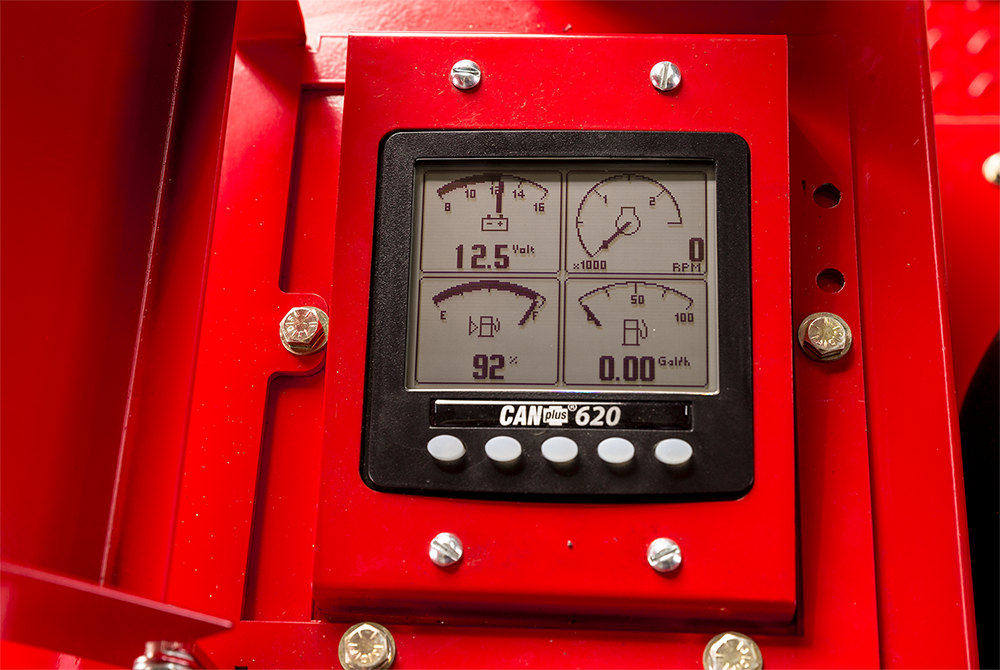

Digital display / computer



Super-duty cast iron spiders with six super-duty steel trowel arms



Six adjustable LED lights

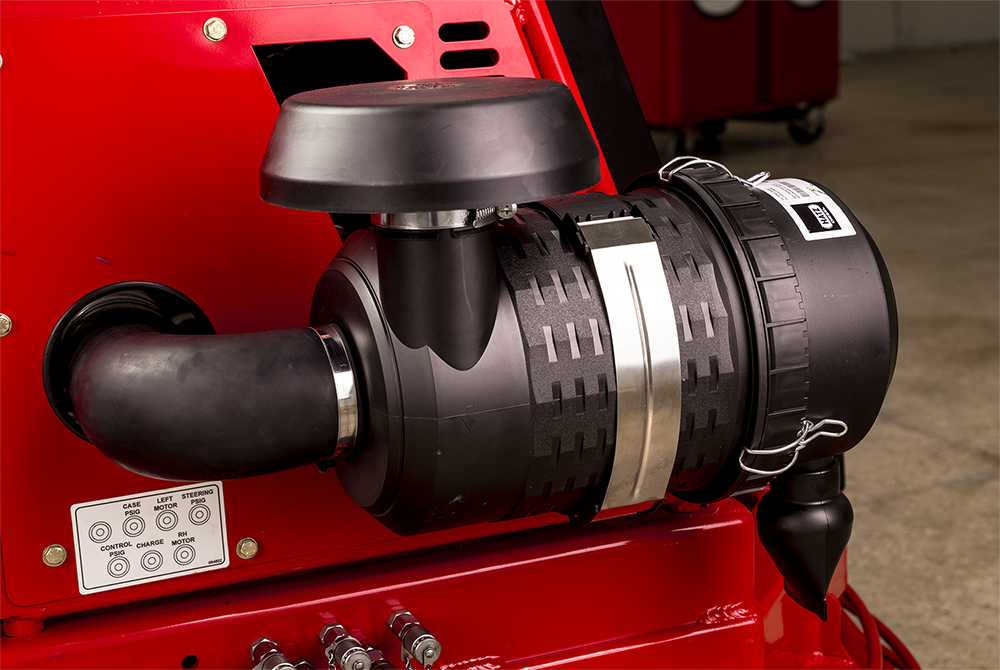

T4 compliant air filter

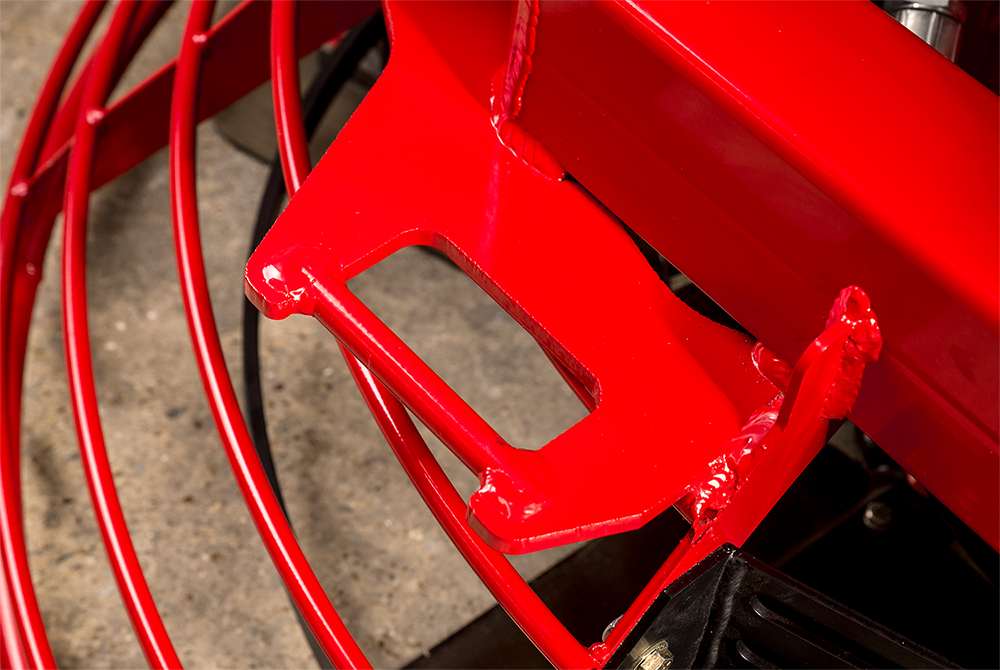

Two-point lifting



Button panel controls dual pitch, throttle, lights and cruise control



Tie downs

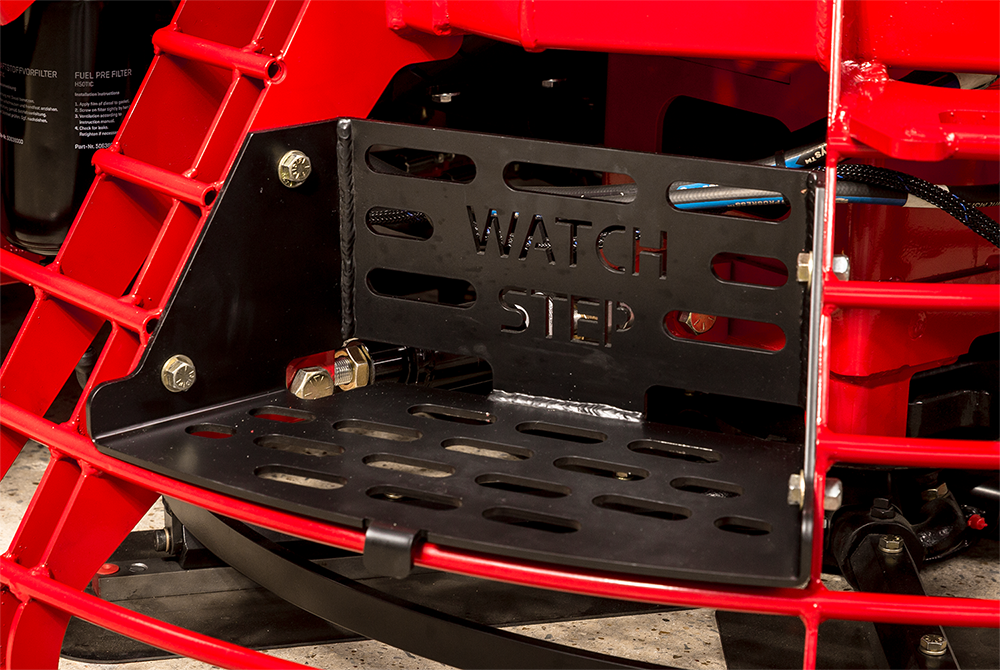

Removable step for easy access to blades
