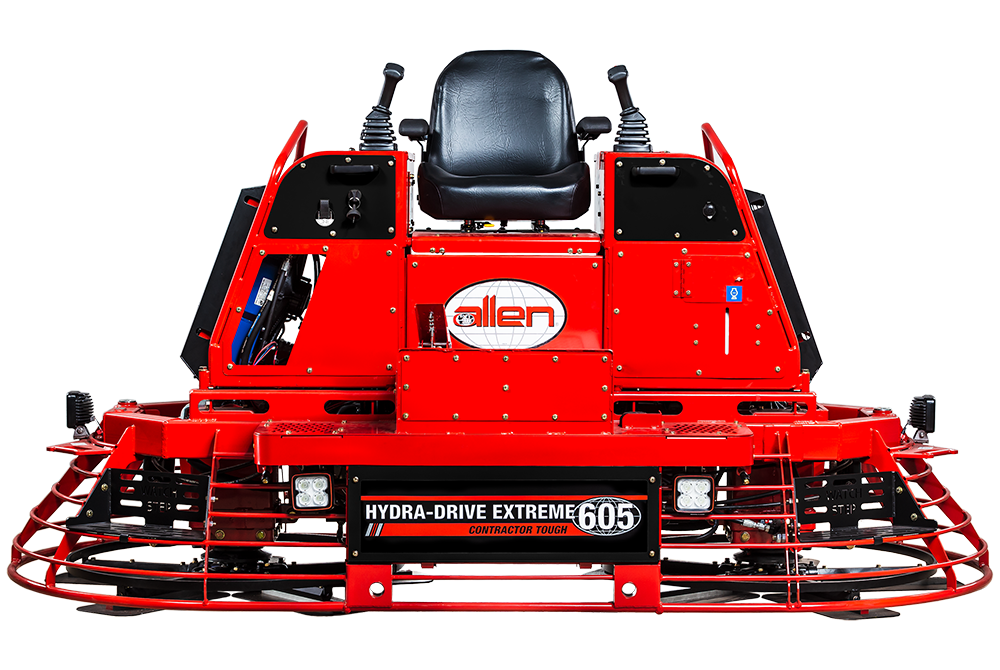

RIDING TROWELS // HDX605

The HDX605 was designed with the high-volume flatwork concrete contractor in mind. This rider is not only fully hydraulic, but it also comes with cruise control, digital readouts for accurate fuel levels and diagnostics, and a large 13-gallon fuel tank for longer run times. It is also equipped with powerful pumps that help maintain excellent torque even at high rotor speeds. This makes the machine excellent for panning or finishing.

Specifications

ENGINE

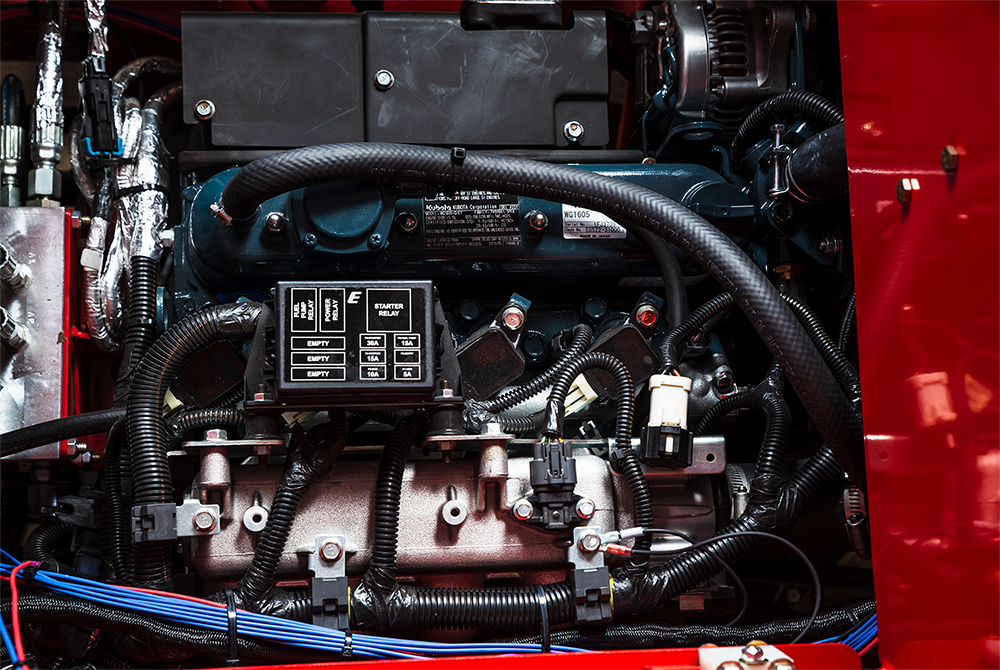

Kubota WG1605
HORSEPOWER CLASS
57 hp / 42.5 kW
FUEL TYPE
Liquid-Cooled Gasoline
PANNING PATH WIDTH
101.5 in / 257 cm
ROTOR DIAMETER
46 in / 116.8 cm
MAXIMUM ROTOR SPEED
170 rpm
STEERING CONTROL SYSTEM
Power
FUEL CAPACITY
13 gal / 49 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
2,049 lb / 929 kg
DIMENSIONS (L X W X H)
101.5 x 66 x 60 in / 257.8 x 167.6 x 152.4 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

HDX605
Electric spray control and electric pitch control on the joystick

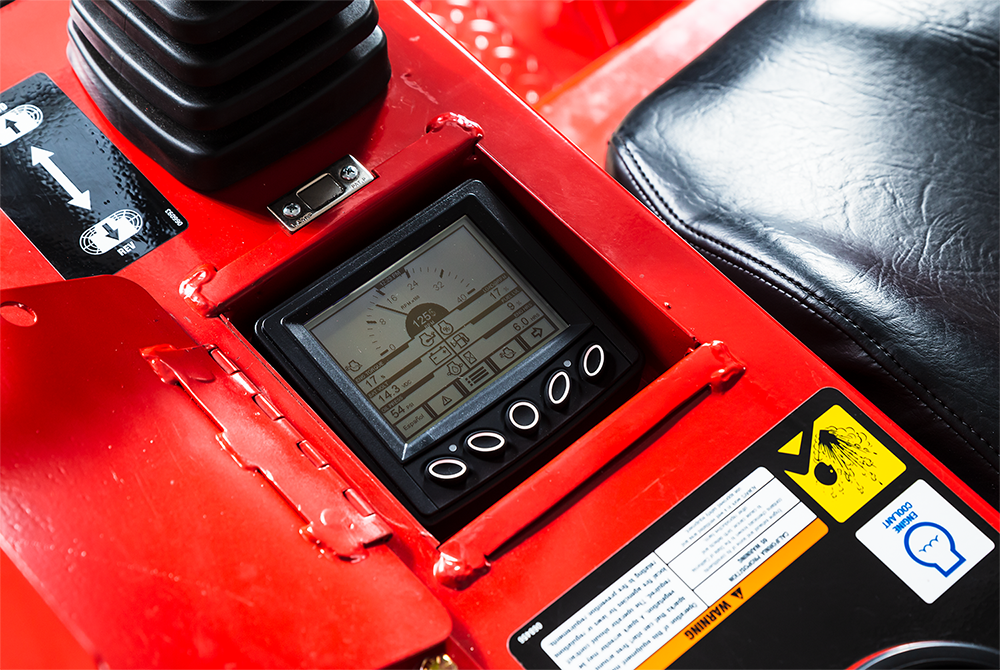

Digital display / computer



Six adjustable LED lights



Super-duty cast iron spiders with six super-duty steel trowel arms



Two-point lifting



Throttle and cruise control



Tie downs



Removable step for easy access
