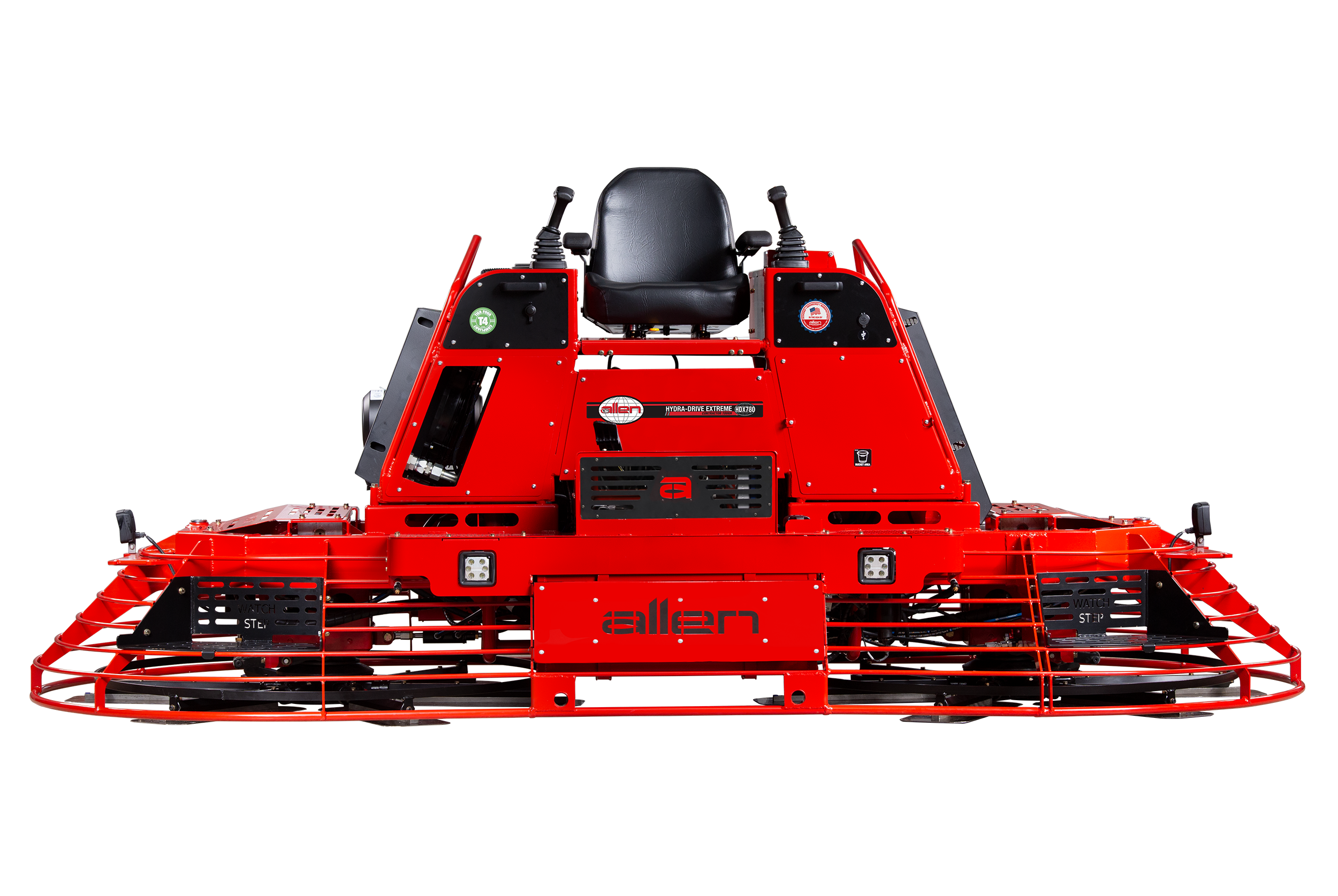

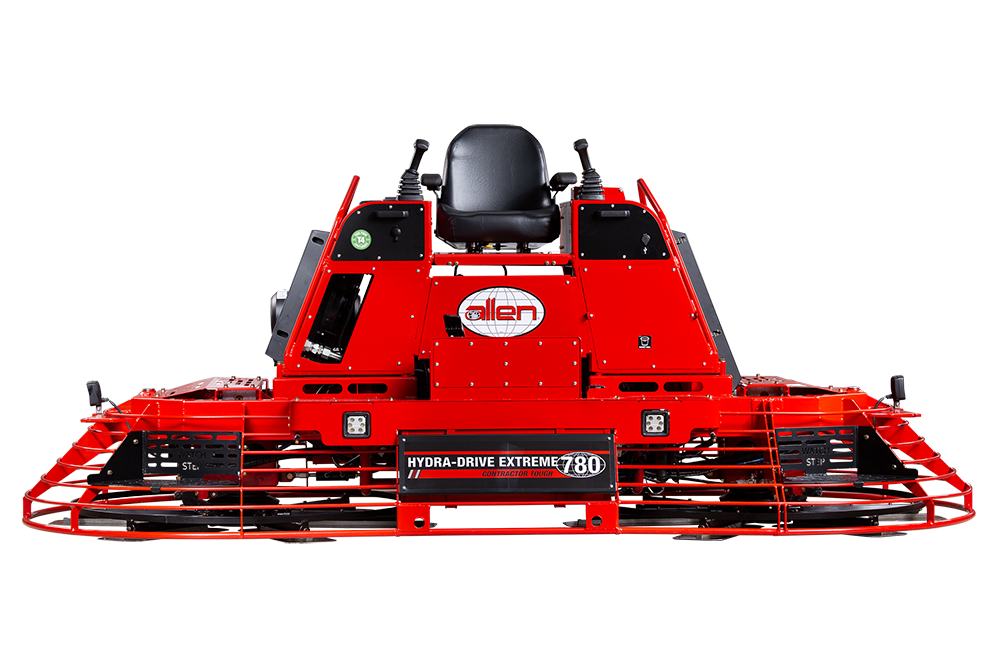

RIDING TROWELS // HDX780

With never before seen features like the heads-up display, the newly designed seat frame for better visibility, and the built-in ‘Intelli-Power’ system, the HDX780 riding trowel truly stands alone in the industry. This machine uses these new features to ensure maximum performance from its Bosch-Rexroth hydraulic components but also increases its lifetime. The HDX780 will be available in a standard rotation or counter rotation.

Specifications

ENGINE
Hatz 4H50TIC (T4F)
HORSEPOWER CLASS
74 hp / 55 kW
FUEL TYPE
Diesel
PANNING PATH WIDTH
140 in / 356 cm
ROTORS (DIAMETER)
60 in / 152 cm
MAXIMUM ROTOR SPEED
130 rpm
STEERING CONTROL SYSTEM
Power
FUEL CAPACITY
18 gal / 68 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
2,836 lb / 1,286 kg
DIMENSIONS (L X W X H)
147.8 x 68.3 x 64.4 in / 375.4 x 173.5 x 163.6 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

HDX780
Hydraulic joystick power steering



Digital display / computer



Two-point lifting



Six adjustable LED lights



Available in counter rotation



T4 compliant air filter



Control panel for dual pitch, throttle, lights and cruise control



Built-in bucket brackets



Removable step for easy access to blades



Available in counter rotation



Available in counter rotation



Tie downs




Equipment Videos

Riding Trowels
06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

Riding Trowels
02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.

FAQ's

How do I check the Hatz engine diagnostics for my HDX600 / HDX760 / HDX780?

If you are needing assistance with your Hatz engine, please contact our product support team via phone or email or visit your local authorized Hatz dealer for assistance.

Engine will not idle up/Spray is not working/Lights will not come on

Check the seat switch or spray fuse.
