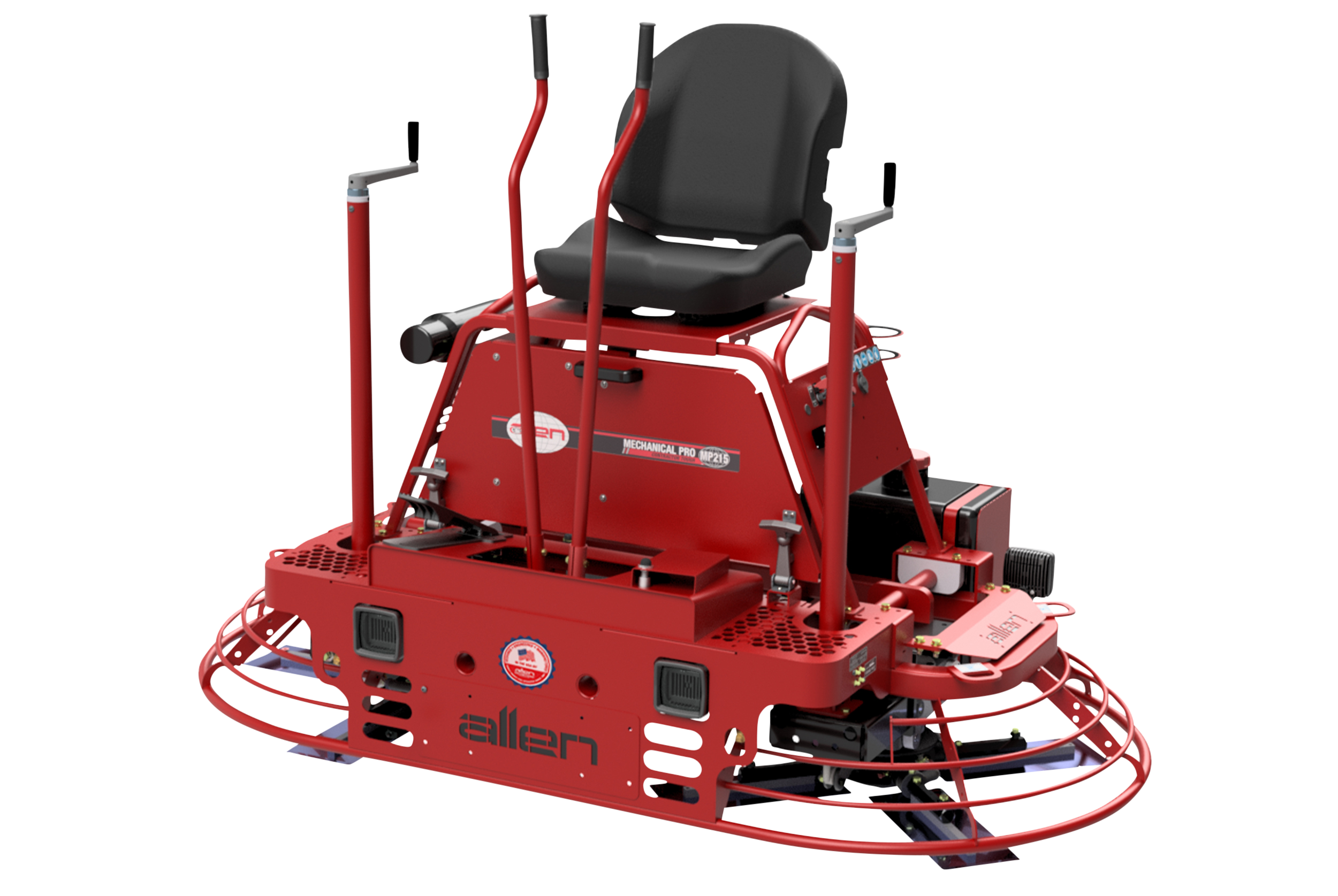

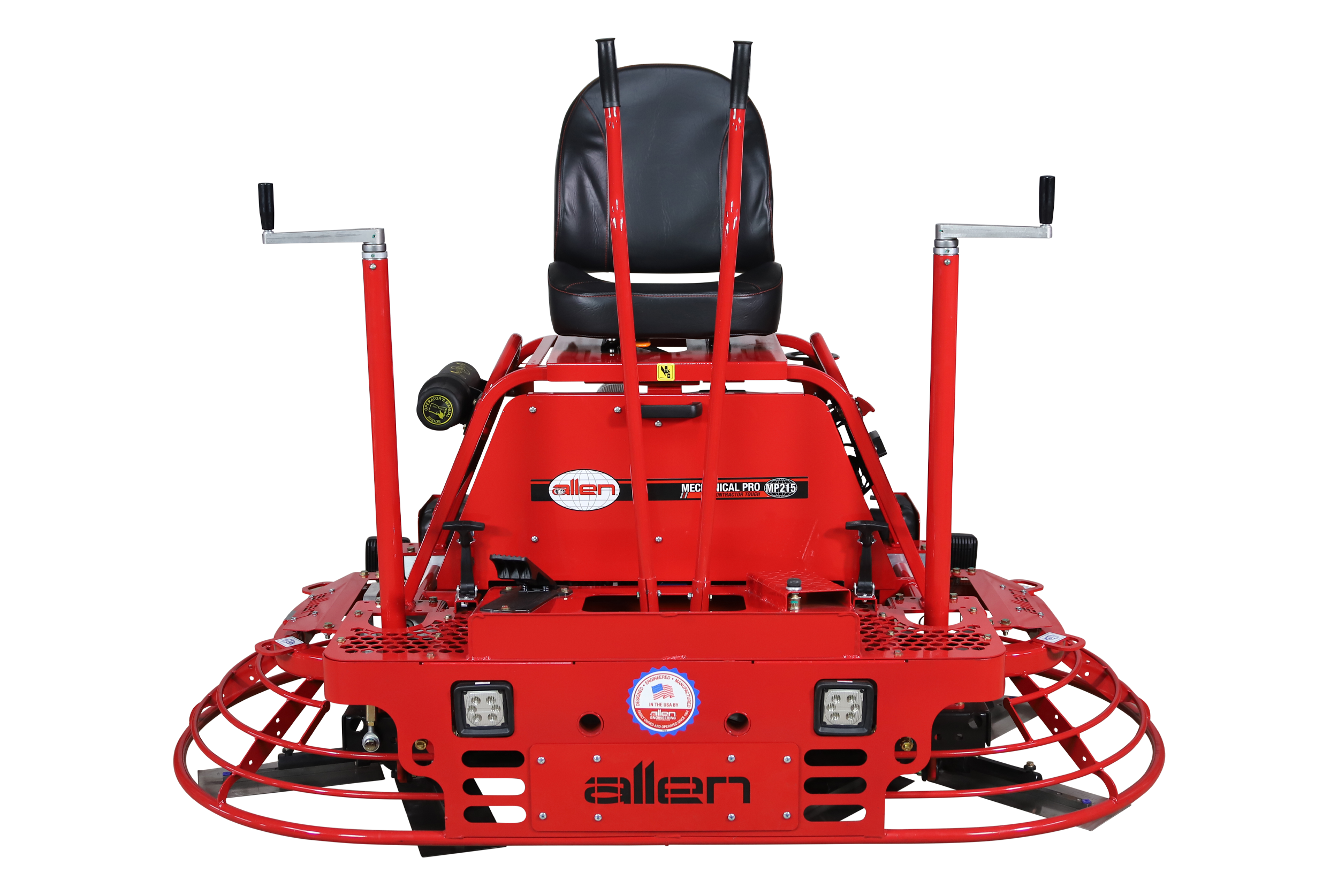

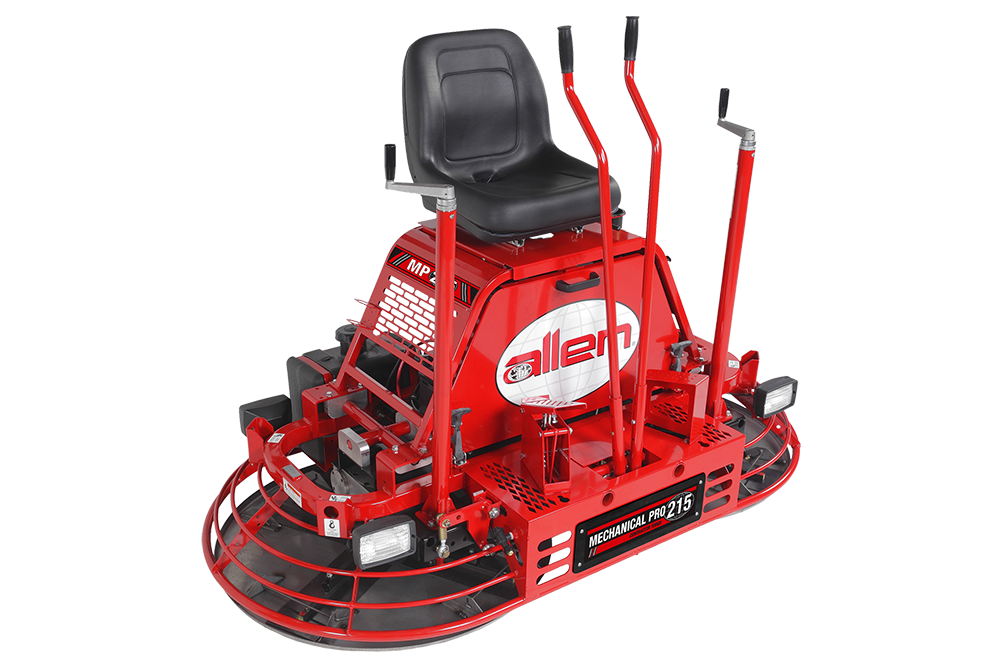

RIDING TROWELS // MP215

This MP215 rider is loaded with features found on our larger riders and the renowned durability of all Allen equipment. It is equipped with a reliable Honda air-cooled gasoline engine, a heavy-duty drive-train on an easy-to-service frame. This versatile rider can be used for slab on grade, paving, and other projects.

Specifications

ENGINE
HONDA GX690 / 688 cc
HORSEPOWER CLASS
22.1 hp / 16.5 kW
FUEL TYPE
Air-Cooled Gasoline
PANNING PATH WIDTH
74 in / 188 cm
ROTOR DIAMETER
36 in / 91.4 cm
MAXIMUM ROTOR SPEED
165 rpm
STEERING CONTROL SYSTEM
Manual
FUEL CAPACITY
6 gal / 23 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
735 lb / 333 kg
DIMENSIONS (L X W X H)
78 x 41 x 53 in / 198 x 104 x 135 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

MP215
Manual dual lever steering



Central grease ports



Four adjustable LED lights



Push to spray foot pedal



Electric powered spray system



Independent manual pitch control



Two point lift




Equipment Videos

Riding Trowels
06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

Riding Trowels
02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.
