MP245

MP245

RIDING TROWELS // MP245

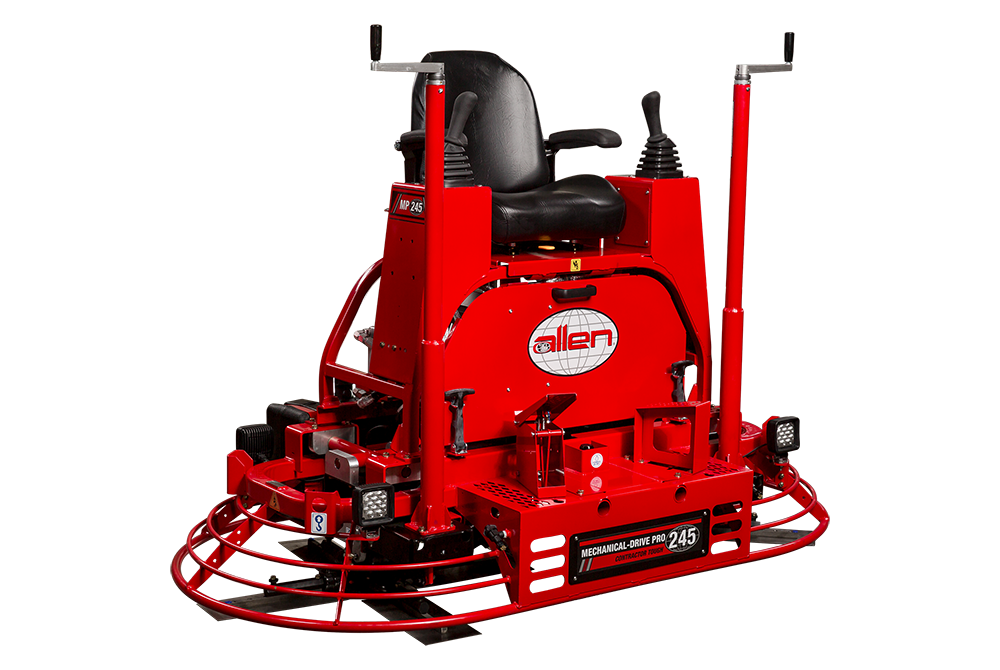

The MP245 is our most compact hydraulic power steering riding trowel. This rider is packed with features found on our larger riders and the renowned durability of all Allen equipment. This rider is equipped with a reliable Honda air-cooled gasoline engine, a heavy-duty drive-train and has an easy-to-service frame.

Specs Equipment Videos

Demo
MP245
MP245 NO PANEL

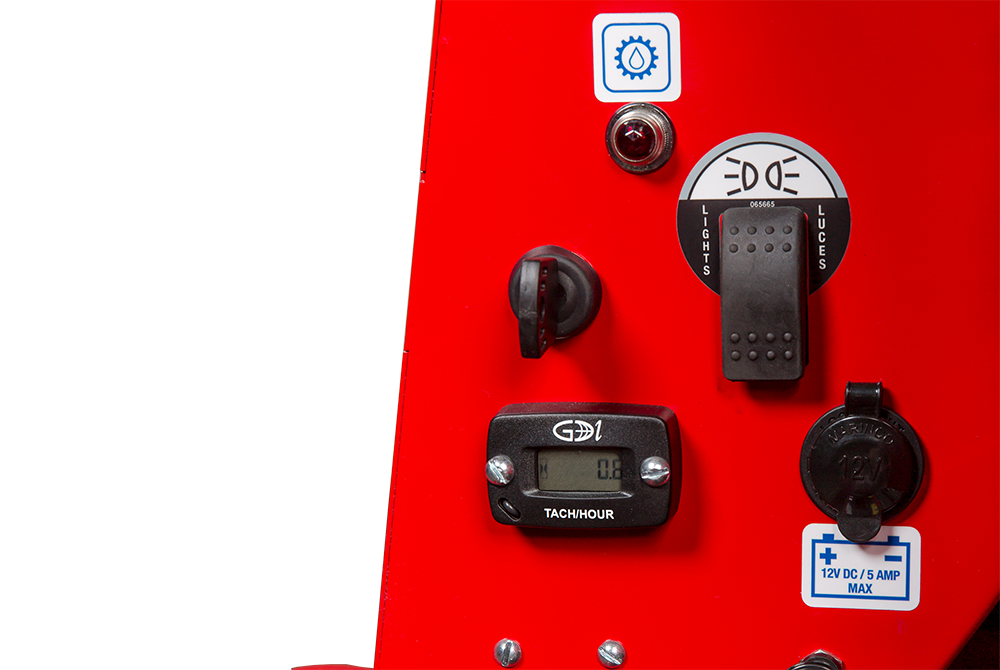

MP245 IGNITION

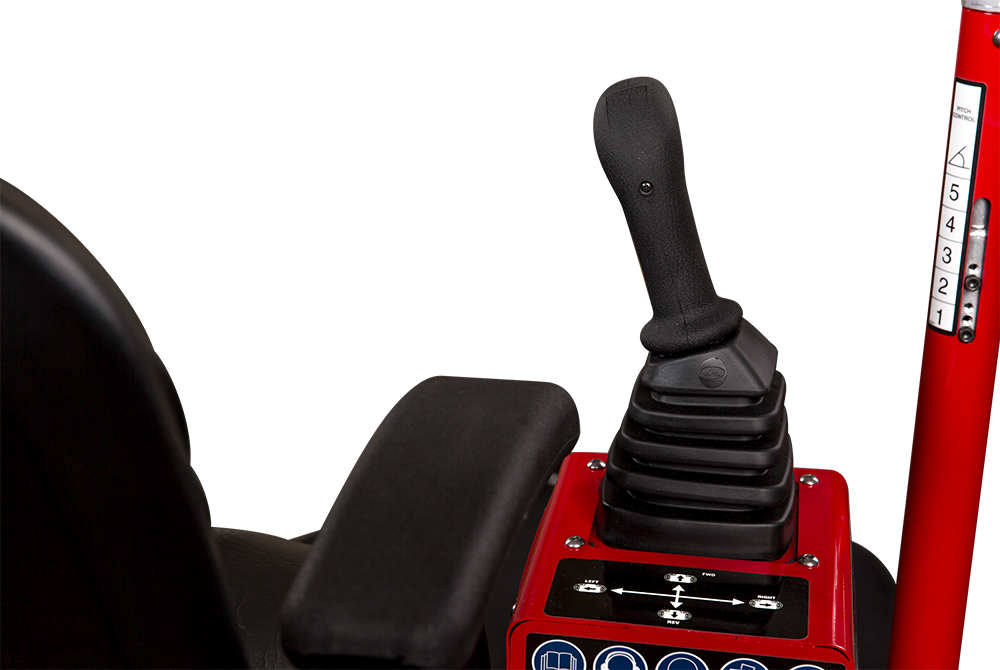

MP245 STEERING

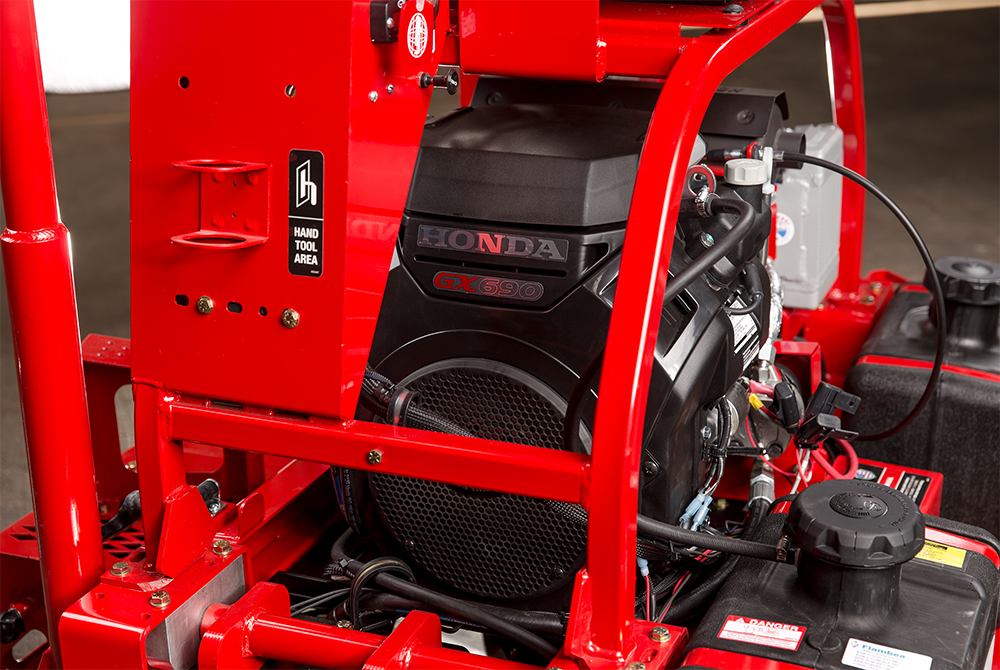

MP245 ENGINE

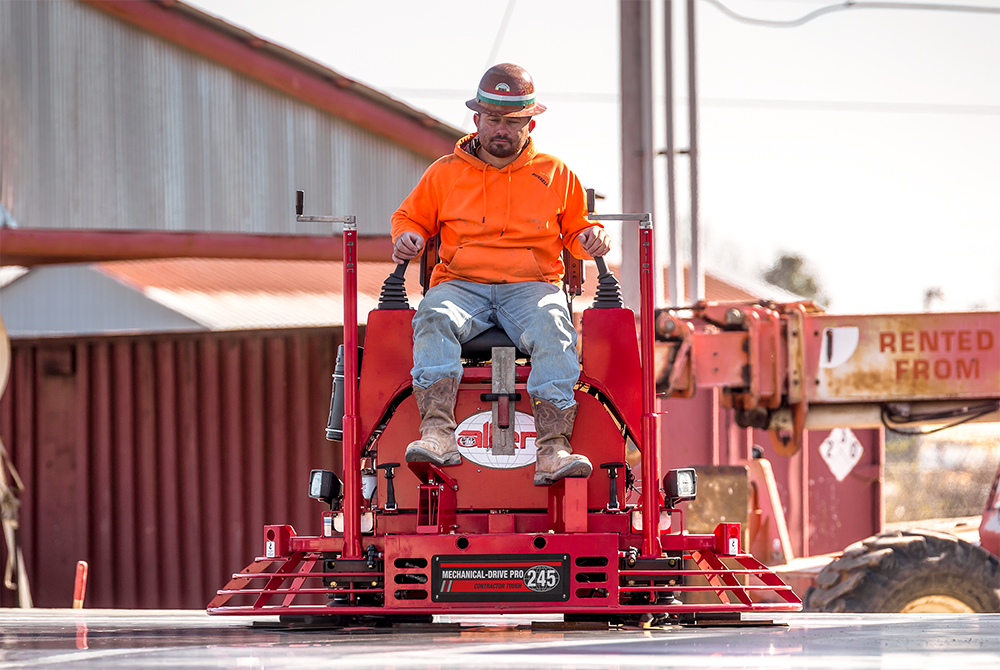

MP245 JOBSITE

Specifications

ENGINE
HONDA GX690 / 688 cc
HORSEPOWER CLASS
22.1 hp / 16.5 kW
FUEL TYPE
Air-Cooled Gasoline
PANNING PATH WIDTH
74 in / 188 cm
ROTOR DIAMETER
36 in / 91 cm
MAXIMUM ROTOR SPEED
165 rpm
STEERING CONTROL SYSTEM
Power
FUEL CAPACITY
6 gal / 23 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
830 lb / 376.5 kg
DIMENSIONS (L X W X H)
78 x 41 x 57.5 in / 198 x 104 x 146 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

MP245
Hydraulic joystick power steering



Independent manual pitch control



Four adjustable LED lights



Central grease ports



Electric powered spray system



Push to spray foot pedal



Removable cover allows easy access to engine components for any service needs



Adjustable seat lifts to provide engine access



Push button start



Two point lift




Equipment Videos

How to Align a Trowel Arm Jig | Allen Engineering
Riding Trowels
06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

How to Check the Flatness of Trowel Arms | Allen Engineering
Riding Trowels
02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.
