Specifications
Mainframe Hydraulic Systems & Power Unit*
Utilizes the Auxiliary hydraulics from Compact Track/Skid Steer Loader

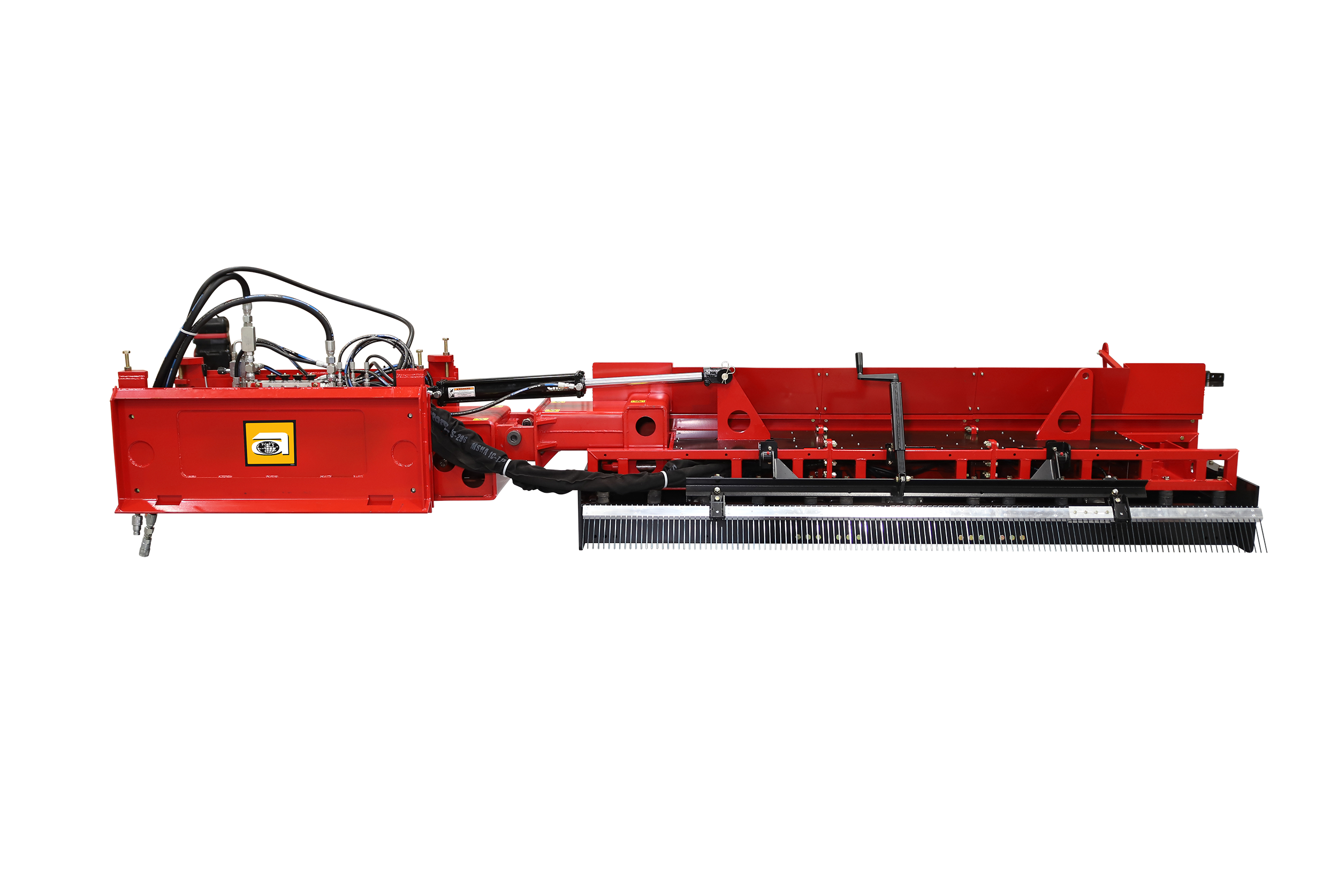

MAINFRAME
Height 28 ¼” (717 mm), Width 3’ (.91 M), Length 13’ 8” (4.17 M) at 8’ paving width
PAVING WIDTH OPTION 1:
8’ (2.43 M) Maximum width paving assembly (Configured with 3’ Section, 3’ Section & 2’ Section)
PAVING WIDTH OPTION 2:
6’ (1.8 M) (Configured with 3’ Section & 3’ Section)
PAVING WIDTH OPTION 3:
5’ (1.5 M) (Configured with 3’ Section & 2’ Section)
PAVING WIDTH OPTION 4:
3’ (.91 M) Minimum width paving assembly
PAVING PAN
3/16” Steel paving pan attached to mainframe by Vibration isolators (Note: 10 cu ft hopper when assembled in the 8’ paving mode)
VIBRATION SYSTEMS
(3) M-1200 Vibrator circuits with individual variable controls (24” on Center Spacing)
Transport Dimensions**
Transport Width (assembled) – 36” Length – 13’ 8” Machine weight at 8’ paving width – 2,500 lbs.
DISCLAIMERS
*Consult with factory on equipment needed. **Machine to be transported with pan flat and not raised.
