WALK-BEHIND TROWELS // PRO424E

The compact weight and size of the Pro424E walk-behind trowel make this easy to use for tight areas. This walker is great for edging against walls, pipes and other obstructions, and will fit easily through doorways. This unique compact walker, with the collapsable folding handle, allows for easy transportation.

Specs Equipment Videos FAQ's

PRO424E

PRO424E FOLDED

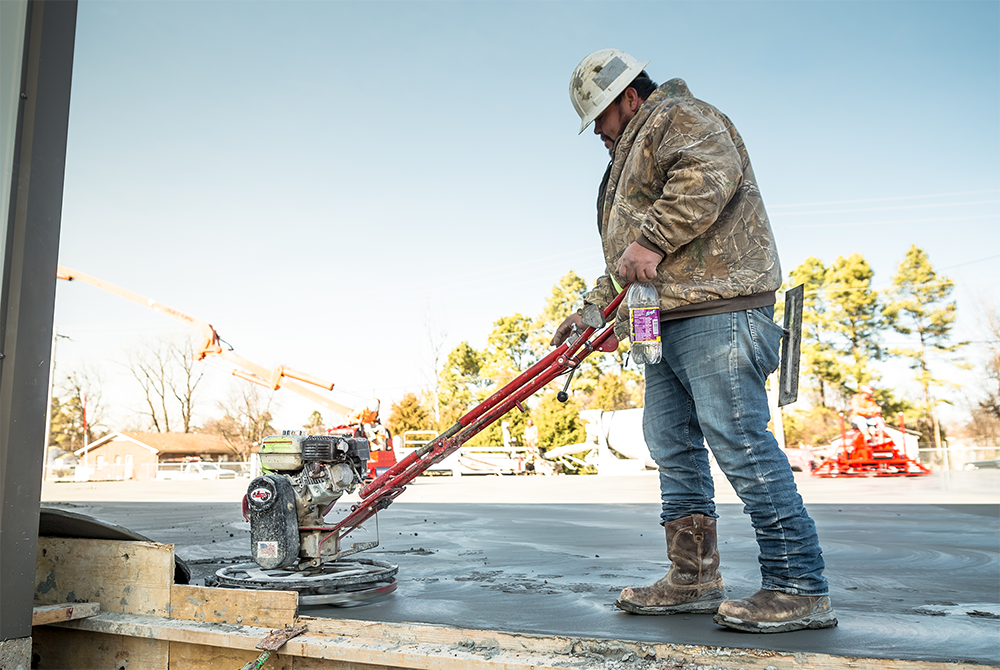

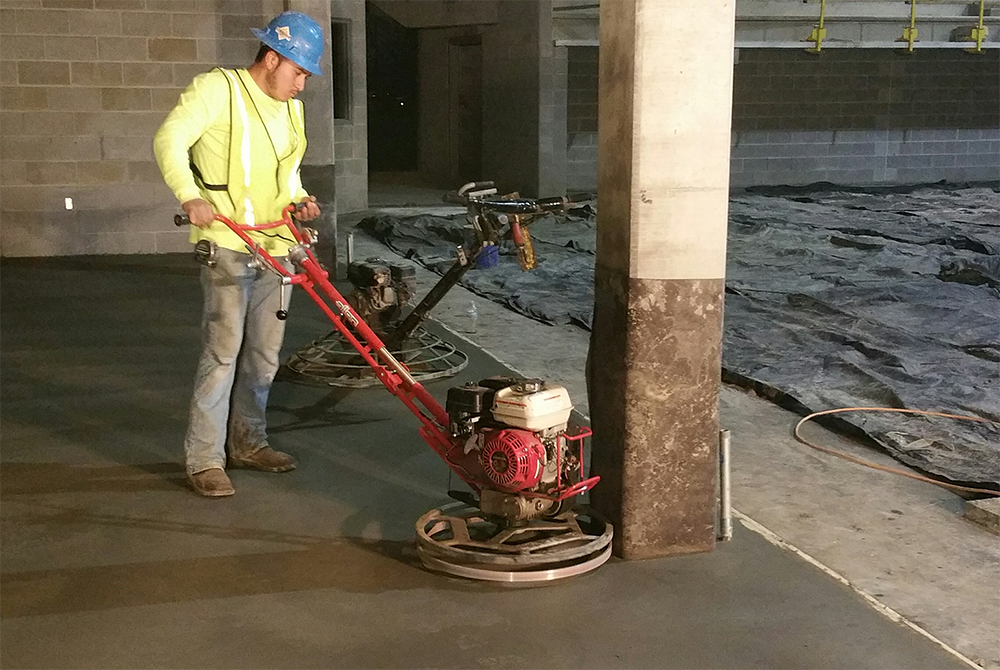

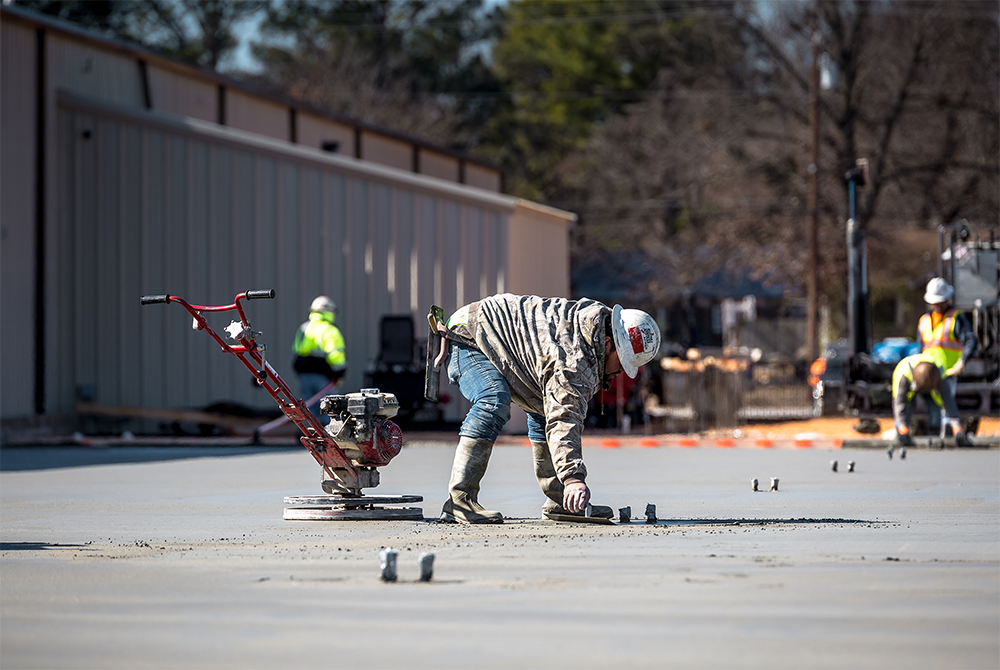

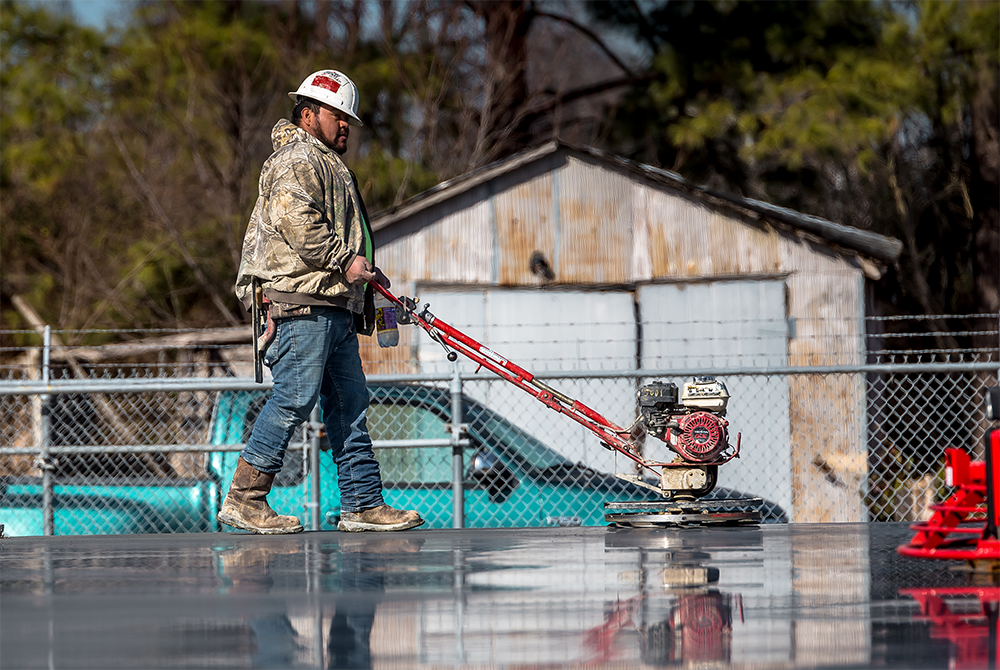

PRO424E JOBSITE

PRO424E JOBSITE

PRO424E JOBSITE

PRO424E JOBSITE

Specifications

ENGINE

HONDA GX120 / 118 cc

HORSEPOWER CLASS

4 hp / 3 kW

ROTOR DIAMETER

24 in (4-blades) / 61 cm

MAXIMUM ROTOR SPEED

135 rpm

TROWEL ARMS & SPIDER

Standard Duty

WEIGHT

122 lb / 55 kg

DIMENSIONS (L X W X H)

65 x 24 x 43 in / 165.1 x 61 x 109.2 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

PRO424E

Safety switch

Fine pitch control handle

Rotating guard ring

Fully collapsible handle

Handlebar adjuster

Fingertip throttle control

Equipment Videos

How to Align a Trowel Arm Jig | Allen Engineering

Walk Behind Trowels

06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

How to Check the Flatness of Trowel Arms | Allen Engineering

Walk Behind Trowels

02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.

FAQ's

My Walk-Behind Trowel positive pitch drifts down

Check the ¾” adjusting nut on the positive pitch clutch.

Walk-Behind Trowel is shredding belts

1. Make sure you have the correct belt.

2. Check belt alignment.

How do I keep my pitch handle from falling while operating the machine?

Make sure the set screws in the collar bushing are catching the intentions on the shaft.

What do I do if my machine is spinning at idle?

1. Check belt alignment.

2. Check engine idle.

Why is my walk-behind wobbling?

Look for a bent arm or trowel arm out of alignment.
