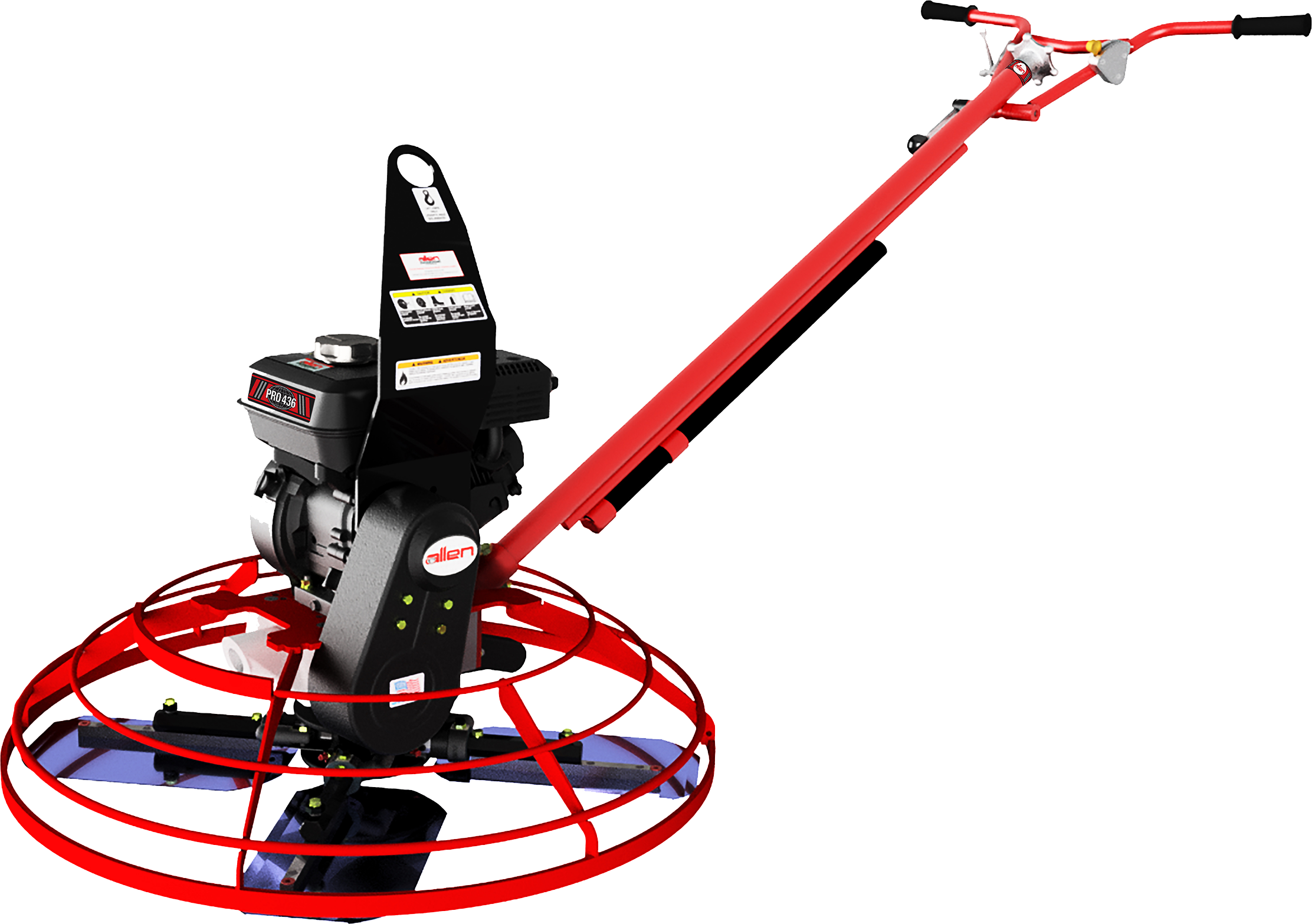

WALK-BEHIND TROWELS // PRO436

Our Pro436 comes standard with a 9hp class Honda Engine and lifting bale and can be equipped with either our Fine Pitch or newly redesigned Rapid Pitch handle. These trowels are built for the most demanding job sites. Our Pro436 is available with either a 5.5hp or 9hp class Honda Engine and is a great choice for customers working in smaller areas.

Specs Equipment Videos FAQ's

Demo
PRO436

Specifications

ENGINE
HONDA GX160 or HONDA GX270 / 163 cc or 270 cc
HORSEPOWER CLASS
5.5 hp or 9 hp / 4.1 kW or 6.7 kW
FUEL TYPE
Gasoline
ROTOR DIAMETER
36 in (4-blades) / 91 cm
MAXIMUM ROTOR SPEED
120 rpm
TROWEL ARMS & SPIDER
Standard Duty
WEIGHT
186 lb or 222 lb / 84 kg or 101 kg
DIMENSIONS (L X W X H)
72 x 38 x 36 in / 182.8 x 96.5 x 91.4 cm

Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

PRO436
Safety switch



Fine pitch control handle



Carry bar



Lifting hook



Handlebar adjuster



Fingertip throttle control




Equipment Videos

How to Align a Trowel Arm Jig | Allen Engineering
Walk Behind Trowels
06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

How to Check the Flatness of Trowel Arms | Allen Engineering
Walk Behind Trowels
02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.

FAQ's

My Walk-Behind Trowel positive pitch drifts down

Check the ¾” adjusting nut on the positive pitch clutch.

Walk-Behind Trowel is shredding belts

1. Make sure you have the correct belt.

2. Check belt alignment.

How do I keep my pitch handle from falling while operating the machine?

Make sure the set screws in the collar bushing are catching the intentions on the shaft.

What do I do if my machine is spinning at idle?

1. Check belt alignment.

2. Check engine idle.

Why is my walk-behind wobbling?

Look for a bent arm or trowel arm out of alignment.
