WALK-BEHIND TROWELS // PRO436E

Perfect for troweling along the edges of walls or around extrusions, the Pro436 Edger features all the power and performance of our Pro Series with the patented advantage that allows it to outperform other edging walkers. Guard rings rotate, allowing for a ride along the edge. Finishing up to 5/16” with 90° lip float pans or ¾” with blades.

Specs Equipment Videos FAQ's

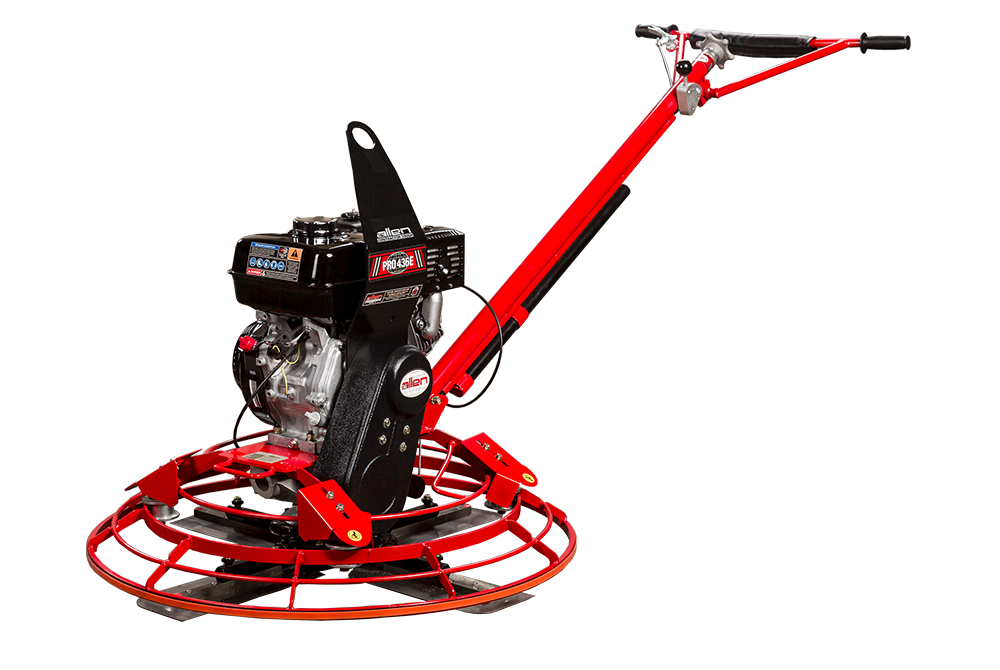

PRO436E

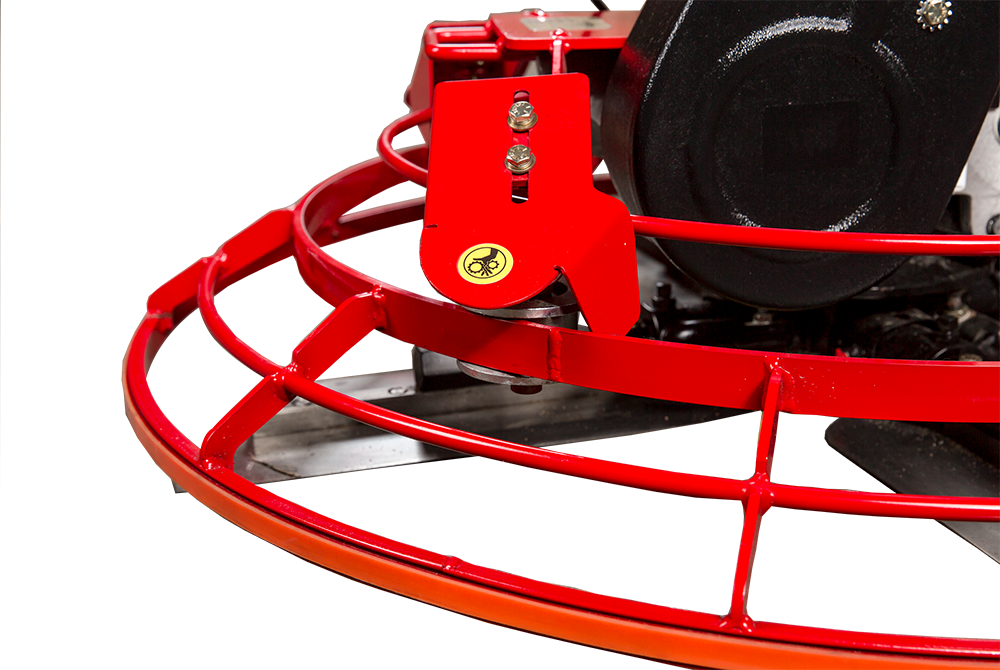

PRO436E RINGS

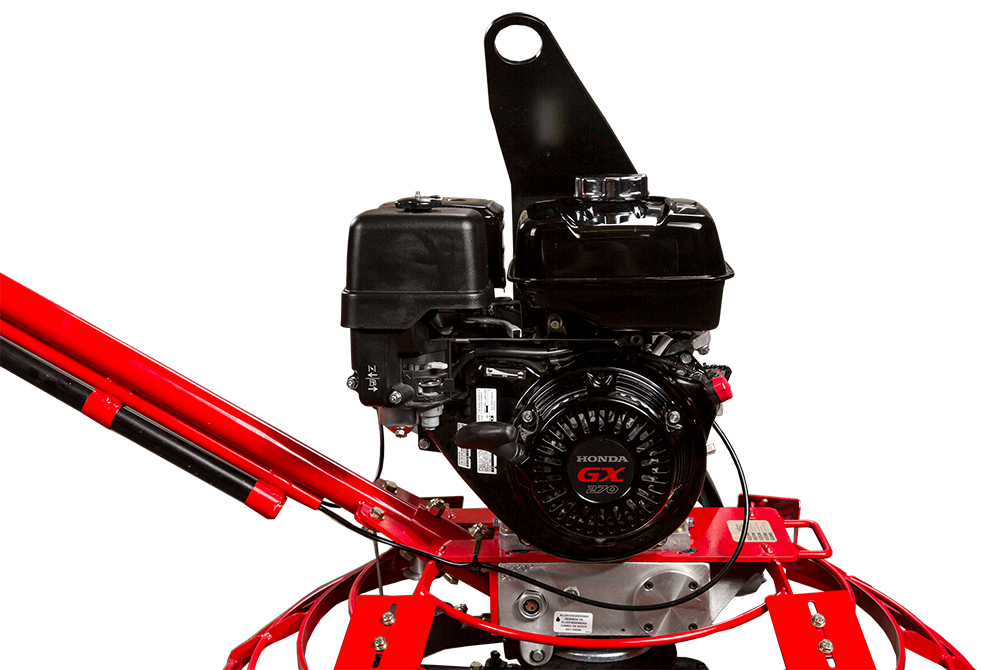

PRO436E ENGINE

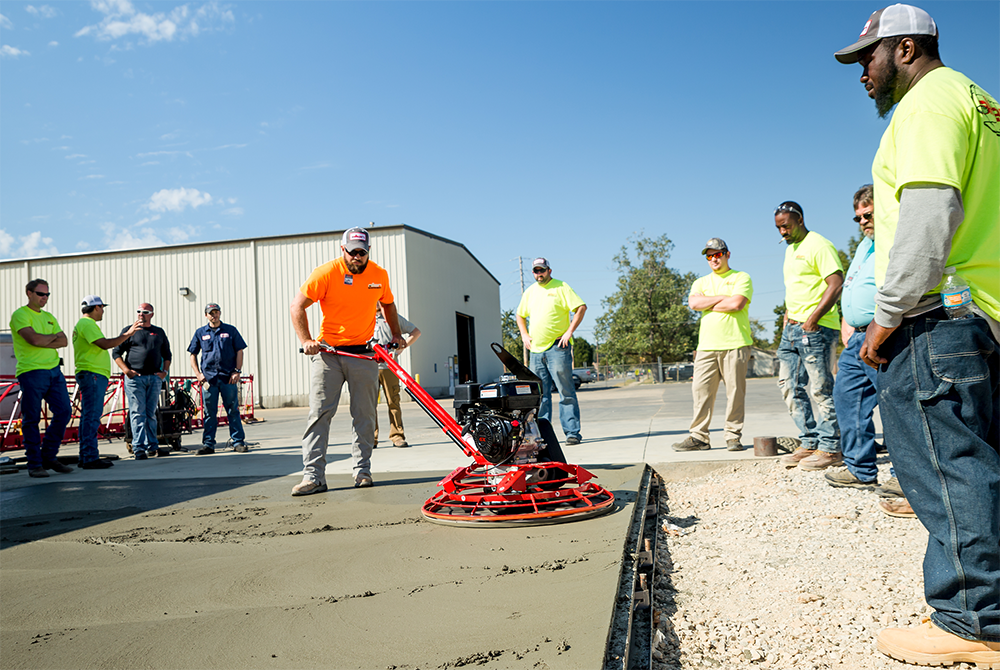

PRO436E JOBSITE

PRO436E JOBSITE 2

Specifications

ENGINE

HONDA GX270 / 270 cc

HORSEPOWER CLASS

9 hp / 6.7 kW

FUEL TYPE

Gasoline

ROTOR DIAMETER

36 in (4-blades) / 91 cm

MAXIMUM ROTOR SPEED

120 rpm

TROWEL ARMS & SPIDER

Standard Duty

WEIGHT

198 lb / 90 kg

DIMENSIONS (L X W X H)

84 x 36 x 38 in / 213.4 x 91.5 x 96.5 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

PRO436E

Fine pitch control handle

Safety switch

Carry bar

Lifting hook

Fingertip throttle control

Equipment Videos

How to Align a Trowel Arm Jig | Allen Engineering

Walk Behind Trowels

06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

How to Check the Flatness of Trowel Arms | Allen Engineering

Walk Behind Trowels

02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.

FAQ's

My Walk-Behind Trowel positive pitch drifts down

Check the ¾” adjusting nut on the positive pitch clutch.

Walk-Behind Trowel is shredding belts

1. Make sure you have the correct belt.

2. Check belt alignment.

How do I keep my pitch handle from falling while operating the machine?

Make sure the set screws in the collar bushing are catching the intentions on the shaft.

What do I do if my machine is spinning at idle?

1. Check belt alignment.

2. Check engine idle.

Why is my walk-behind wobbling?

Look for a bent arm or trowel arm out of alignment.
