TRUSS SCREED // SE12

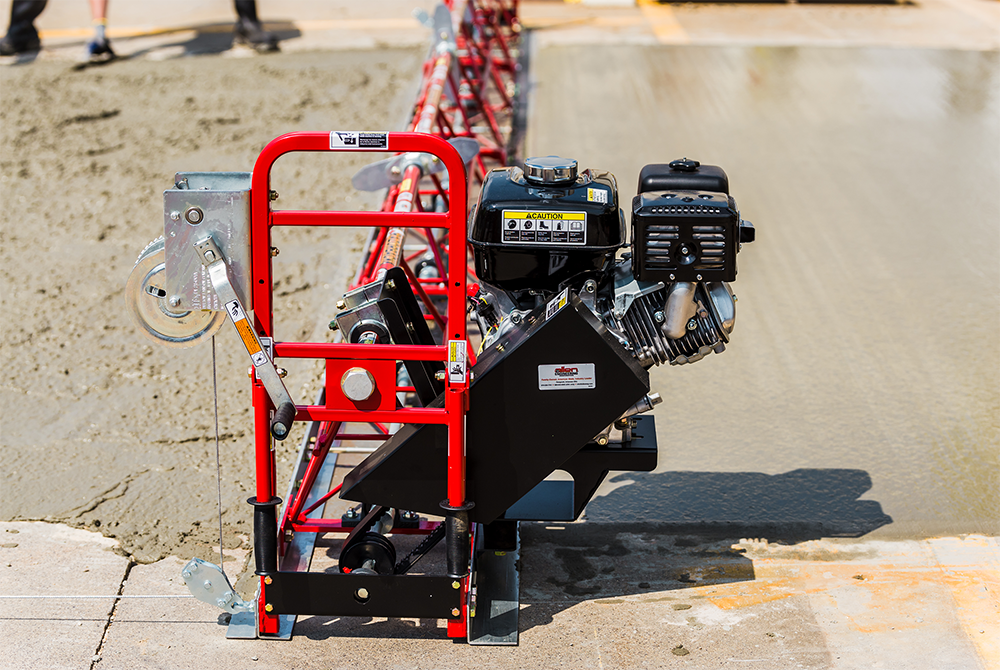

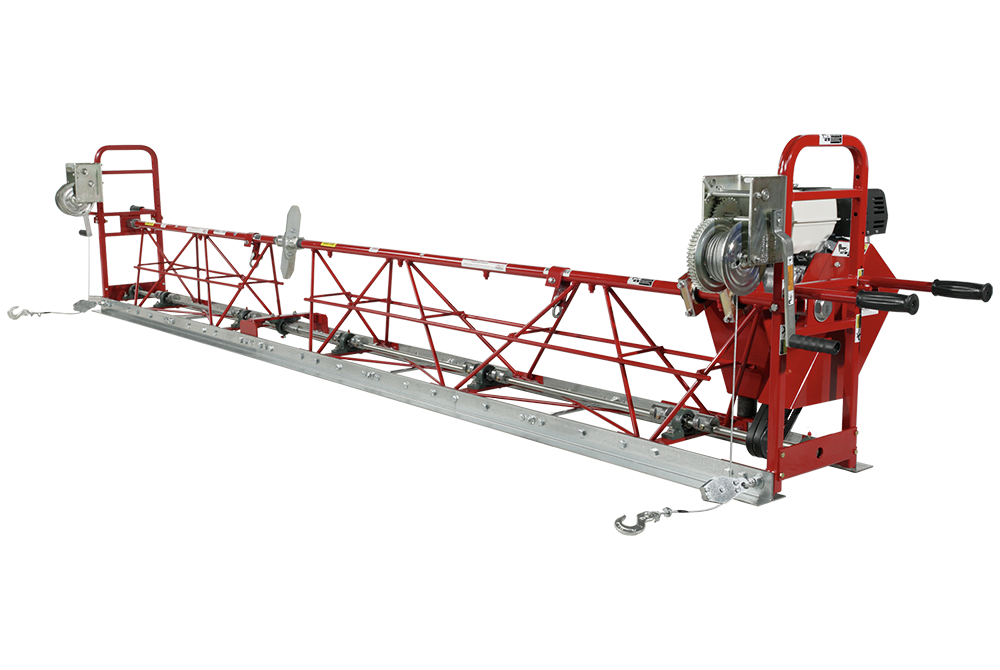

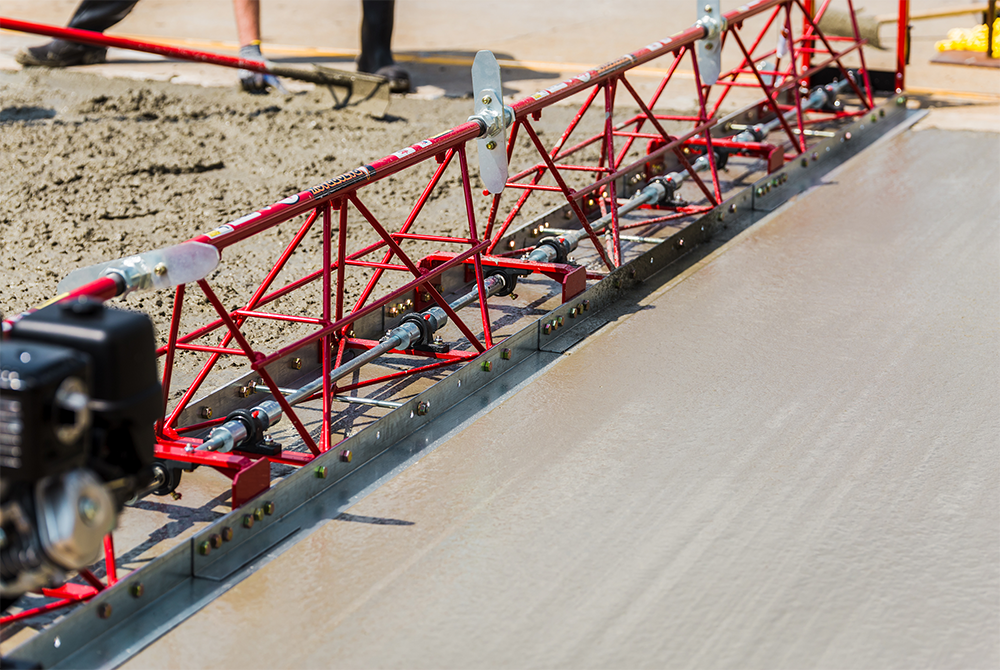

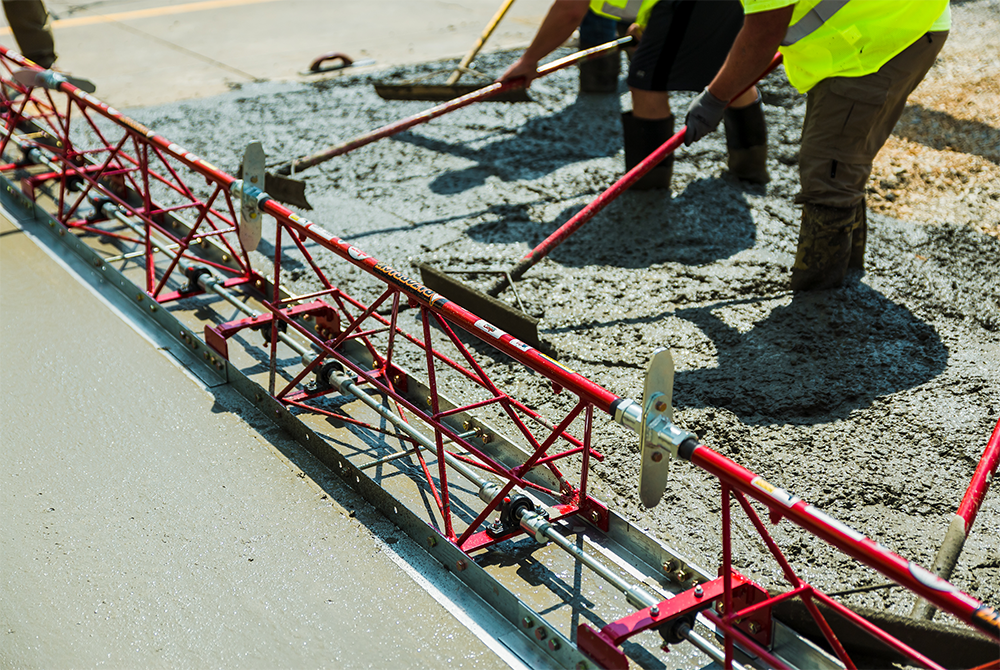

This engine-driven Allen® Razorback® Truss Screed has been used on countless projects around the globe for over four decades. With gasoline engine power, driving vibration, and the hydraulic winch option, this self-contained truss screed is the industry standard for all steel framed truss screeds. Available with accessories for roadways, bridges, slab-on-grade and more.

Blade Weight Blade Widths
37 lb / 17 kg
2 ft / .61 m
46 lb / 21 kg
2.5 ft / .76 m
90 lb / 41 kg
5 ft / 1.52 m
135 lb / 61 kg
7.5 ft / 2.29 m
180 lb / 82 kg
10 ft / 3.04 m

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Specifications

FRAME CONSTRUCTION
Steel
VIBRATION SYSTEM
Eccentric Shaft
VIBRATIONS
10,000 vpm
ENGINE (WIDTHS LESS THAN 42.5')
HONDA GX270 - 9 hp / 6.7 kW
ENGINE (WIDTHS MORE THAN 42.5')
HONDA GX340 - 11 hp / 8.2 kW
MAXIMUM WIDTH
65 ft / 19.8 m
LOWEST CONCRETE SLUMP
3 in / 7.6 cm
MAXIMUM CONSOLIDATION DEPTH
10 in / 25.4 cm
BLADES
10 Gauge Galvanized Steel
SE12
Quick disconnect system



Low profile engine option

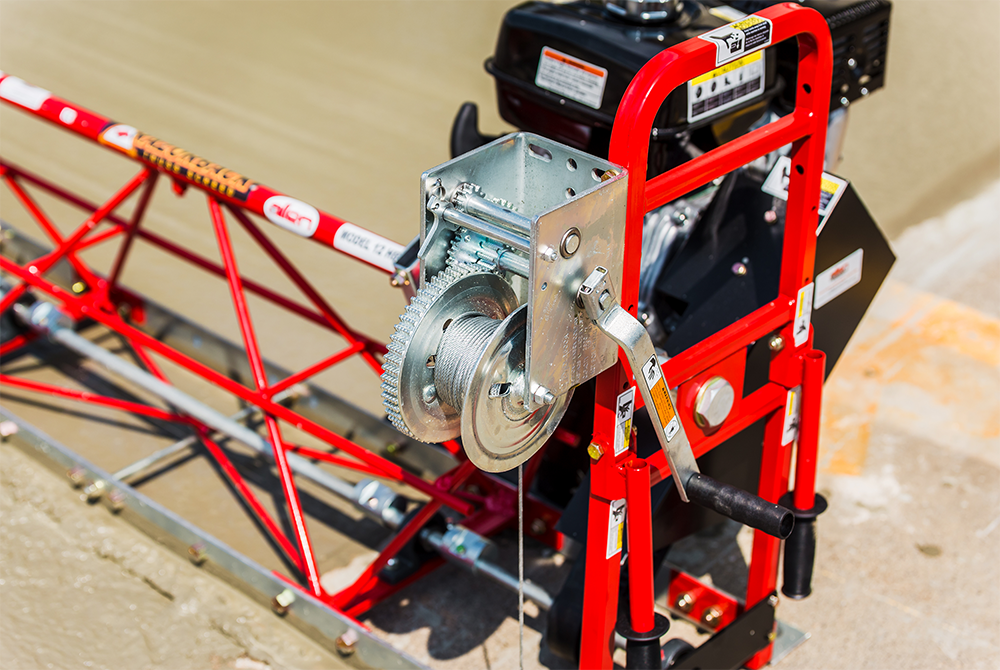

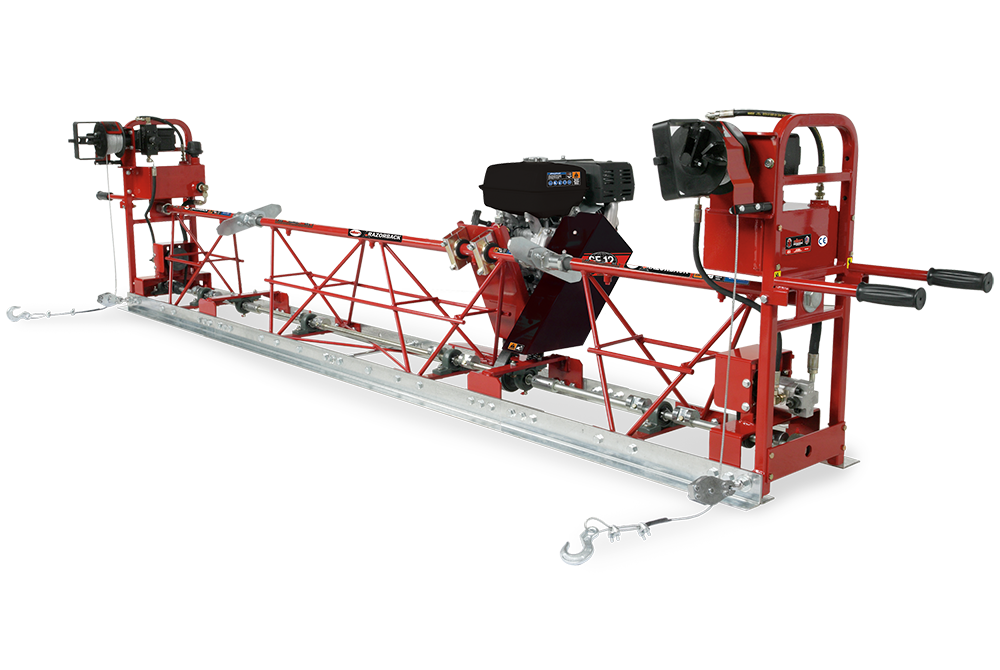

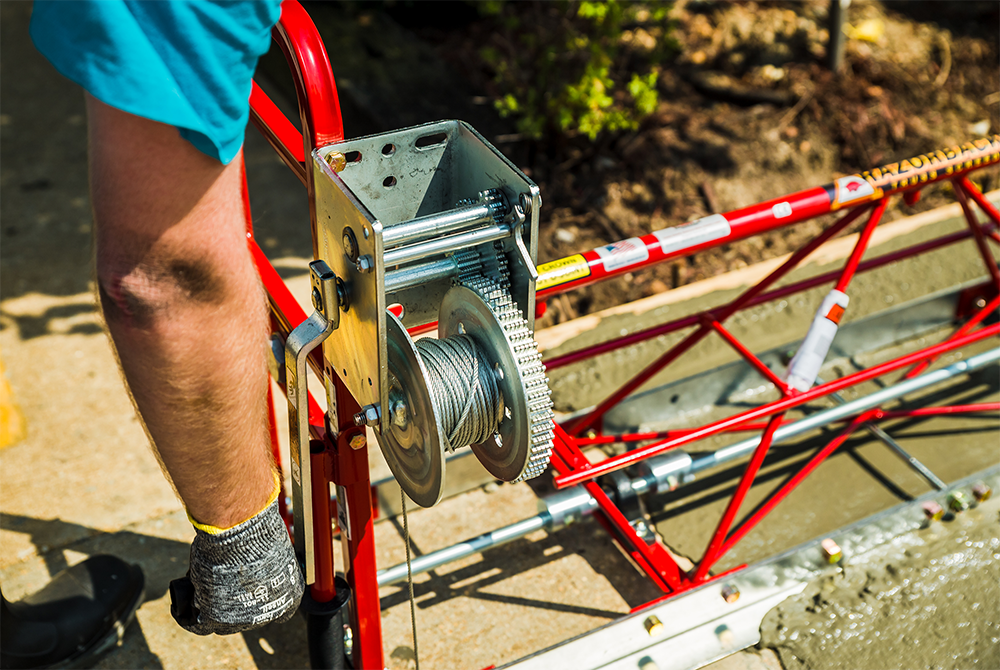

Optional hydraulic powered winch



Eccentric vibrator weights



Triangular frame with vibration proof welds



Replaceable, greaseable bearings



Bolt-on replaceable blades
