Versatile Light Pavers // VLP2424

Versatile Light Paver (VLP) was designed and engineered to pave a light rail project in San Diego, California to save on time and labor. From that early beginning, we have now captured the light rail project market with a re-designed paving machine. The new unit allows the contractor the ability to easily customize and adjust the paver to fit any rail project. This unit also can have customized profile paving heads to pave bridge overlays, irrigation ditches, heavy rail bridges and walkways.

Specifications

ENGINE
Air-Cooled KOHLER CH440
FUEL TYPE
Gasoline
HORSEPOWER CLASS
14 hp / 10.4 kW
MAIN FRAME
2x 12' x 24' Truss Sections w/ Leg Rail
PAVING PROFILE HEADS
2x 12' sections / 4 Paving Profile Heads comes with Base Machine
BOGIES
24" Power Drive Bogie Frames w/ Cupped Wheels and 24" Idle Bogie Frames w/ Cupped Wheels

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

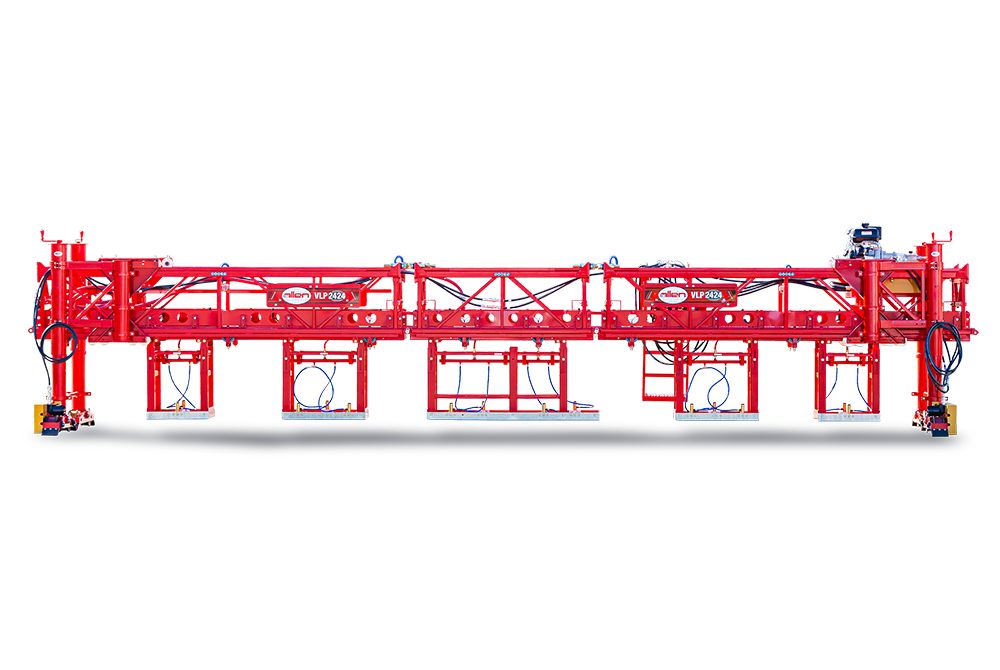

VLP2424
Manual legs



Operator platform and machine controls



Power unit



Power bogie



Zero clearance leg bracket



Paving profile frames
