TRACK BUGGIES // AT15F

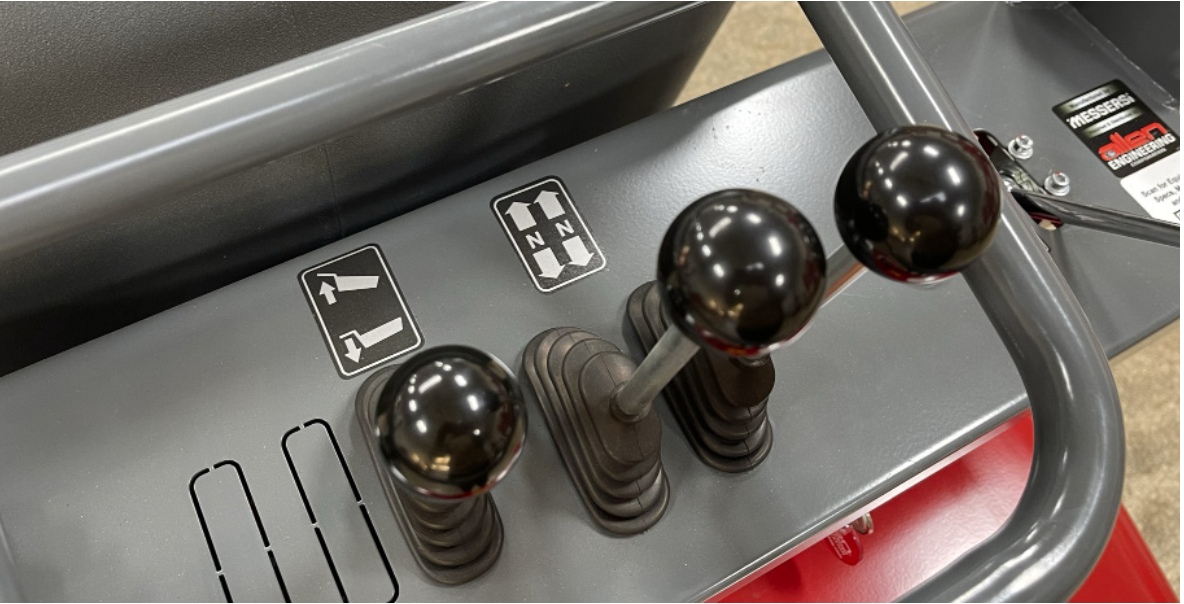

The AT15F rubber track buggy stands as a robust and agile workhorse, perfectly suited for transporting and offloading various bulk materials. Fitted with user-friendly controls, a powerful 23 hp engine, and a capacious 15 cubic foot poly bucket, this machine is an ideal choice for concrete professionals, landscaping experts, contractors, or anyone with frequent material hauling and dumping needs.

Specs

Demo

Specifications

ENGINE

B & S Vanguard / 627 cc

HORSEPOWER CLASS

23 hp / 17.2 kW

STARTER

Electric

FUEL TYPE

Gasoline

FUEL CAPACITY

1.72 gal / 6.5 L

TOP SPEED

WORK: 2.6 mph TRAVEL: 5.5 mph / WORK: 4.2 kph TRAVEL: 8.8 kph

PAYLOAD

2,450 lb / 1200 kg

BUCKET CAPACITY

15 cu. ft. / 0.42 cu. m

DUMP ANGLE

90º

DUMP/RETURN SPEED EMPTY

4 seconds

PIVOT ANGLE

180º

WEIGHT

1,650 lb / 750 kg

DIMENSIONS (L X W X H)

97 x 31 x 51.5 in / 246 x 79 x 131 cm

15 Cubic foot bucket with a 2,450 lb payload capacity

Poly bucket design allows bucket to be cleaned more efficiently

Tie down rings to secure on a trailer

Rubber tracks for extra load capacity and traction

Narrow 31” width allows buggy to fit through 36” doors

Engine cover fully encloses the engine components

Hydraulic brake system
