TRACK BUGGIES // AT16

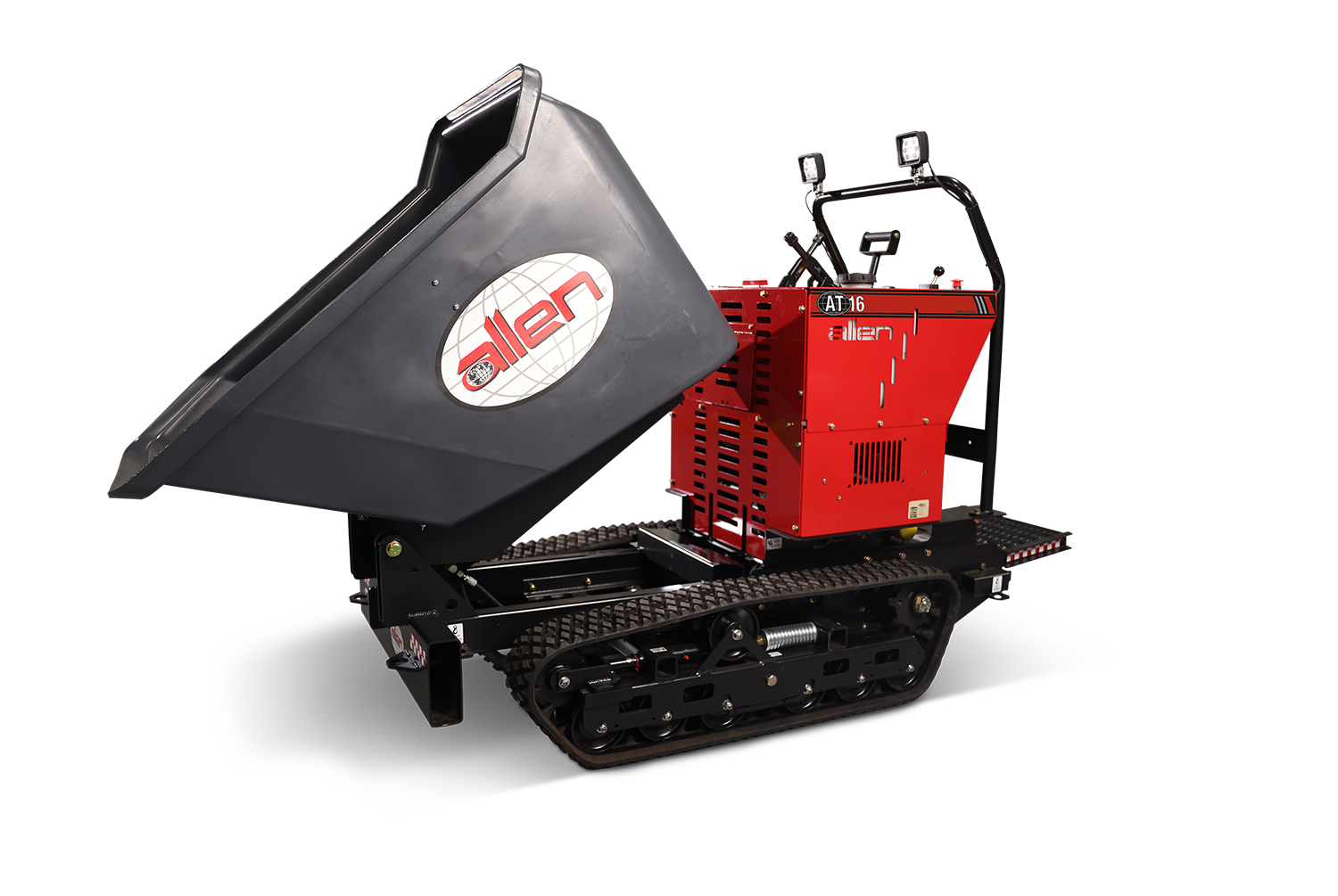

The AT16 is the largest track buggy offered by Allen Engineering. This buggy comes fully equipped with lights, single-hand drive, a two-inch tubular frame, and a robust 2,500 lb payload capacity. The AT16 rubber track concrete buggy delivers excellent performance and precise maneuverability. Equipped with a 90-degree dump angle, the AT16 buggy can place your material exactly where you need it.

Specs FAQ's

Demo
AT16

Specifications

ENGINE
KOHLER EZT740 / 747 cc
HORSEPOWER CLASS
25 hp / 18.6 kW
STARTER
Electric
FUEL TYPE
Gasoline
FUEL CAPACITY
6 gal / 22.7 L
TOP SPEED
WORK: 4 mph TRAVEL: 6 mph / WORK: 6 kph TRAVEL: 10 kph
PAYLOAD
2,500 lb / 1,135 kg
BUCKET CAPACITY
16 cu. ft. / 0.45 cu. m
DUMP ANGLE
90º
DUMP/RETURN SPEED EMPTY
15 seconds
PIVOT ANGLE
0º
WEIGHT
1,475 lb / 669 kg
DIMENSIONS (L X W X H)
102.5 x 35.6 x 65.25 in / 260 x 90.4 x 166 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

AT16
Two LED work lights for greater work site visibility



Rubber tracks for extra load capacity and traction



16 Cubic foot heavy-duty poly dump bucket for long life



Largest track buggy payload available at 2,500 lbs



Improved track tensioning for ease of maintenance




FAQ's

Tracks are not rotating properly on one side

1. Check track tension

2. Check belt tension

Dump seems slow or no dump at all on my track buggy

1. Check belt tension on the pump

2. Check the pressure on the pump and adjust to 2000 psi

3. Make sure that no air is in the lines

Hydraulic oil overflows the tank on my track buggy

1. Make sure the correct amount of oil is in the tank

2. Make sure the strainer in the hydraulic tank is not clogged

What oil goes in the hydraulic tank of the track buggy?

20w50 Motor Oil

What should I check daily on my unit?

1. Hardware
2. Hydraulic Level
3. Hydraulic Fittings
4. Grease Points
5. Make sure all controls are operational

What should I check monthly on my unit?

1. Inspect drive belts
2. Lovejoy assembly

What should I check annually on my unit?

1. Service transmission fluid (if applicable)
2. Inspect rollers and tracks/tires

When should I change my hydraulic oil in my unit?

Every 100 hours

How do I set the belt tension on my AT16?

Please see pages 38-41 of your Owner's Manual

What is the max MPH my buggy goes?

All buggies are set with a max speed of 6-7 MPH from the factory

What happens if I put the wrong oil in my hydraulic system?

Your system will underperform and struggle with dumping when loaded
