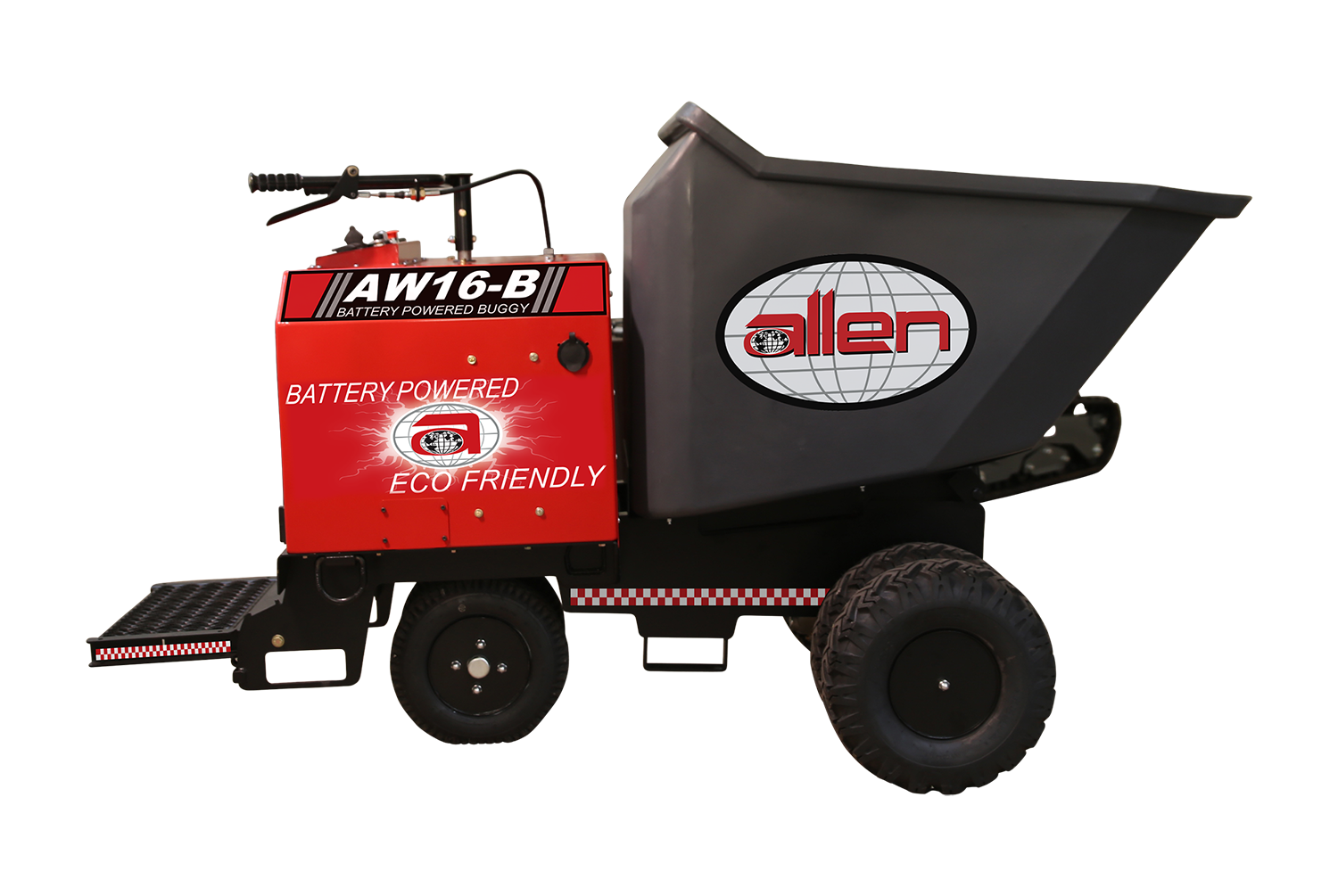

WHEEL BUGGIES // AW16-B

The all-new Allen AW16-B fully electric battery-powered buggy has been uniquely designed and tested for jobsites and projects where emissions are a major concern. The Allen AW16-B Power Buggy is powered by a rugged Vanguard 48 Volt Lithium-Ion power pack capable of reaching 8-9 hour run times. With a limited-slip transaxle, the AW16-B is more mobile than your average wheel buggy and its Dynamic Electric Brake gives safety to the operator by not allowing the buggy to move unless the throttle is engaged. With all IP65 rated controls, the ability to pressure wash the unit after a hard day’s work makes the AW16-B the most durable and versatile battery-powered buggy on the market.

Specifications

ENGINE
48 Volt Lithium Ion Battery
HORSEPOWER CLASS
7.4 hp / 5.5 kW
POWER TYPE
Battery
BATTERY LIFE
Up to 8 Hours (6 hours constant use)
TRAVEL SPEED
6 mph / ~ 10 kph
PAYLOAD
2500 lb / 1134 kg
BUCKET CAPACITY
16 cu. ft. / 0.45 cu. m
LIFT CYLINDER DIAMETER
2 in / 51 mm
DUMP ANGLE
90º
WHEELBASE
40 in / 102 cm
TIRES
Foam Filled
WEIGHT
1507 lb / 684 kg
DIMENSIONS (L X W X H)
97 x 47 x 50 in / 246 x 119 x 127 cm

 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

AW16-B
FOAM FILLED TIRES



LIFTING POINTS



16 CU. FT. BUCKET



110-VOLT CHARGING PORT



CONTROL PANEL




Equipment Videos

Power Buggies
02:14 Min.

Brad Ketcherside, AEC Sales Rep of the North Central region, walks through the features of the AW16-B - a Battery Powered Wheel Buggy by Allen Engineering.

Power Buggies
03:25 Min.

Kraft Fluid Systems features Vanguard Battery Systems for Mobile Equipment
