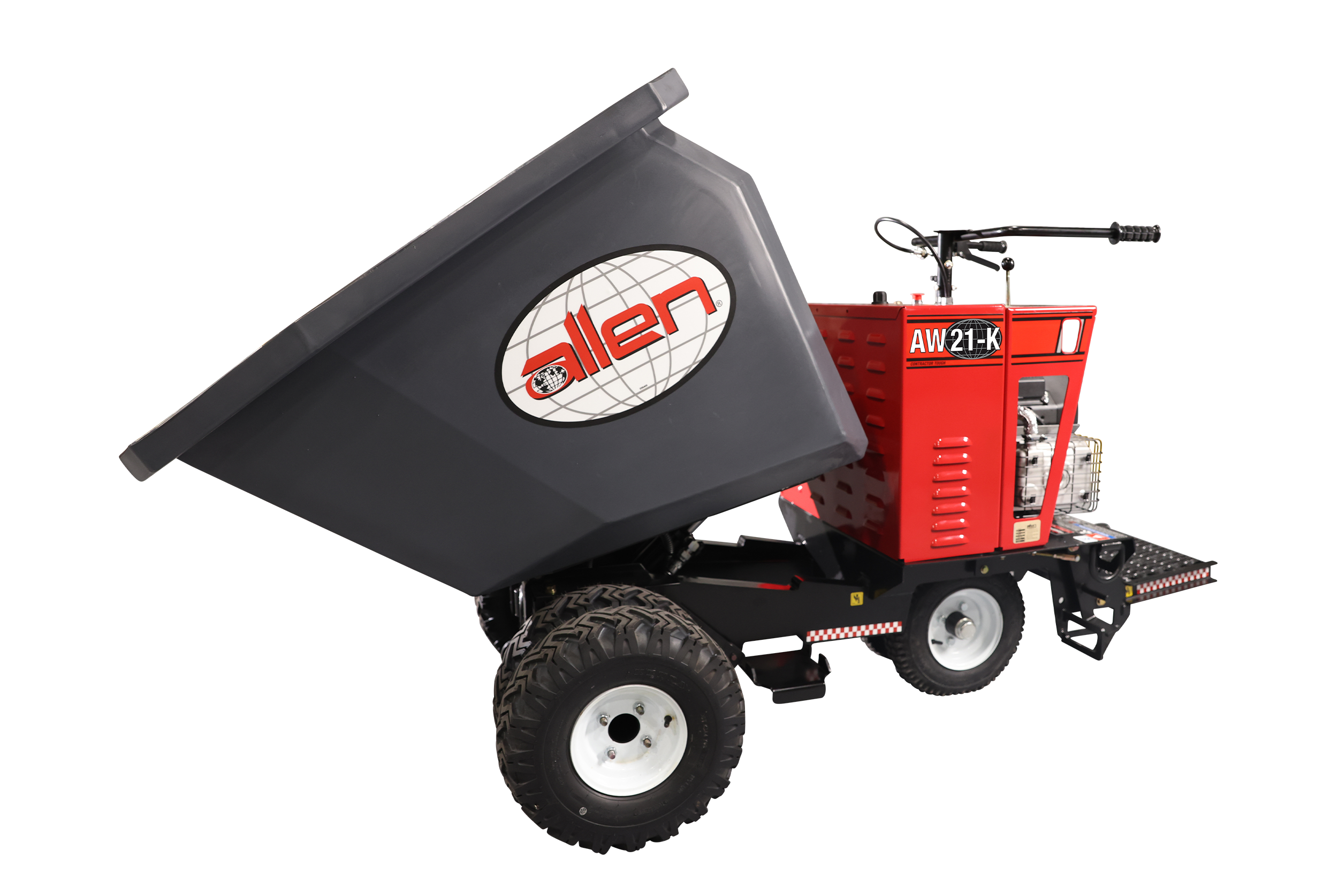

WHEEL BUGGIES // AW21-K

Our AW21-K Allen Wheel Buggy comes ready to work with a twenty-one cubic foot polyethylene bucket that can deliver a 3,200 lb payload. This wheel buggy is offered with a Kohler CH640, allowing it to achieve a top speed of six miles per hour - fully loaded.

Specs FAQ's

Demo

Specifications

ENGINE

KOHLER CH640

HORSEPOWER CLASS

20.5 hp / 15 kW

STARTER

Electric

FUEL TYPE

Gasoline

FUEL CAPACITY

2.1 gal / 8 L

TOP SPEED

6 mph / 10 kph

PAYLOAD

3,200 lb / 1,451 kg

BUCKET CAPACITY

21 cu. ft. / 0.59 cu. m

LIFT CYLINDER DIAMETER

2.5 in / 63.5 mm

DUMP ANGLE

90º

DUMP/RETURN SPEED EMPTY

8 Seconds

WHEELBASE

40 in / 102 cm

WEIGHT

1,475 lb / 637 kg

TIRES

Foam Filled

DIMENSIONS (L X W X H)

97 x 47 x 50 in / 246 x 119 x 127 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Easy-squeeze speed control lever

Enclosed engine shroud

Foot-operated dumping mechanism

Side-to-side and rear-to-front forklift kit

21 Cubic foot capacity, heavy-duty poly dump bucket

FAQ's

Dump cylinder won't dump or is slow on my wheel buggy

1. Check there is no air in the lines

2. Check that the pressure is accurate on the dump valve. This pressure should read 1500 psi.

Engine is growling when throttle is lowered to idle on my wheel buggy

Check that the coupler and jaw element is seated properly and not damaged

Wheel buggy creeps while idle

Adjust the throttle lever bolt under the throttle lever on the pump's left or right until it idles without creeping

What oil goes in the hydraulic tank in the wheel buggy?

10w30 Motor Oil
