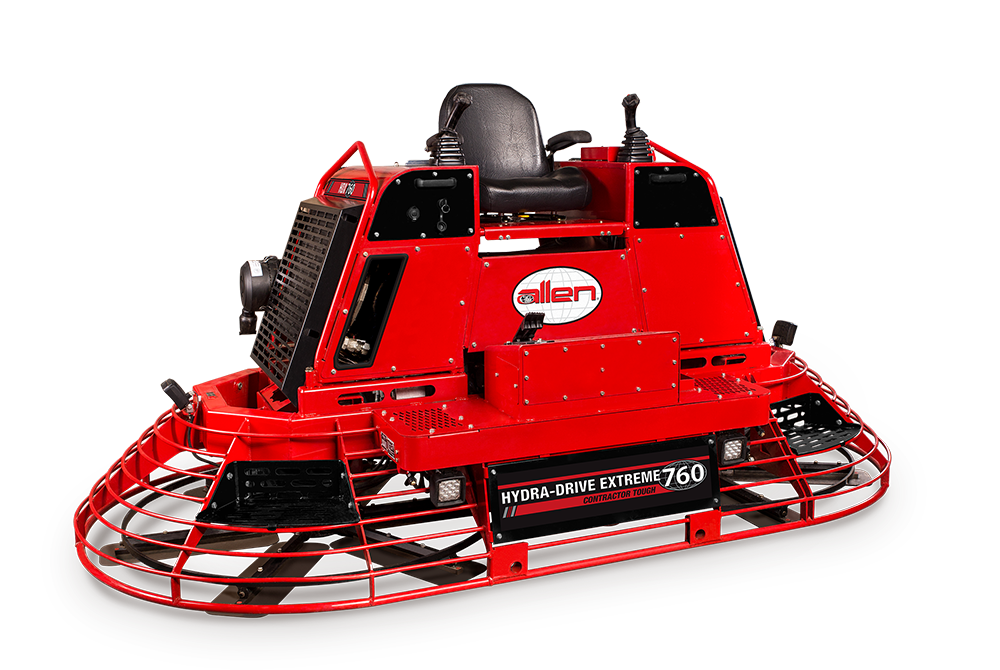

RIDING TROWELS // HDX760

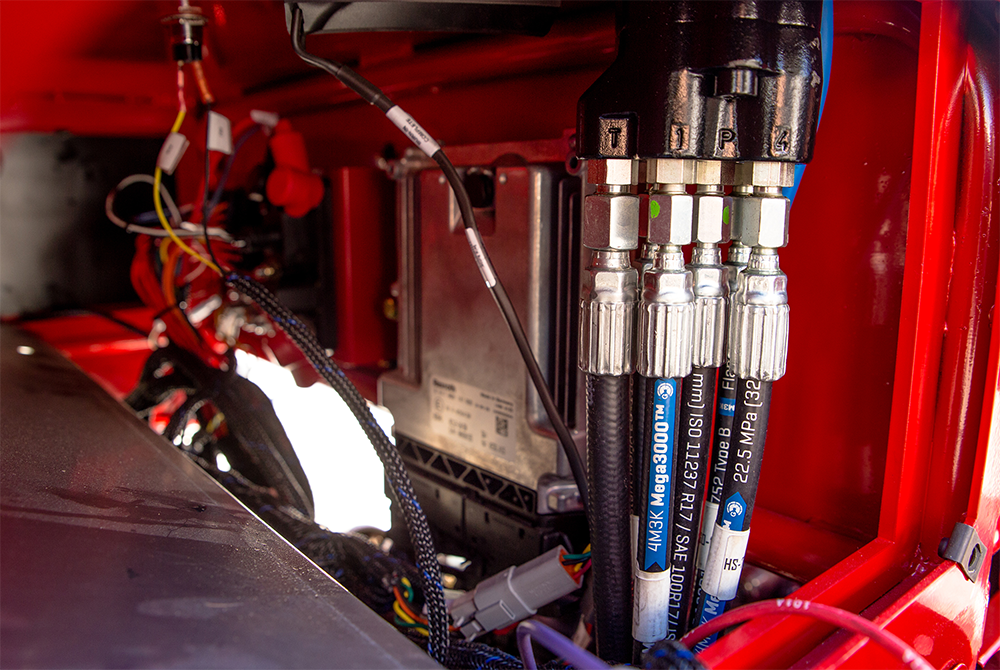

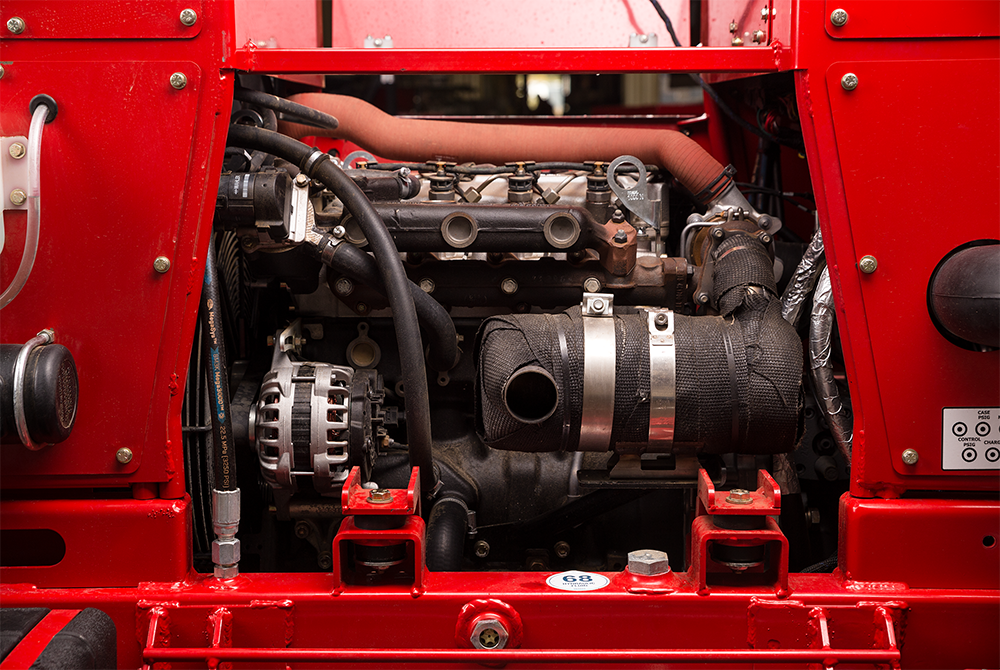

The Allen HDX760 Riding Trowel truly stands alone in the industry with the built-in ‘Intelli-Power’ system that controls both the hydraulics and the engine operation. With ‘Intelli-Power’ the 74hp T4F Hatz diesel engine and the Bosch-Rexroth hydraulic components communicate to each other to ensure maximum performance and safety at all times. This results not only in unequaled performance and safety protection for critical engine and hydraulic components but allowing for longer operating life expectancy.

Specifications

ENGINE
Hatz 4H50TIC (T4F)
HORSEPOWER CLASS
74 hp / 55 kW
FUEL TYPE
Diesel
PANNING PATH WIDTH
117.6 in / 299 cm
ROTOR DIAMETER
57.6 in / 146 cm
MAXIMUM ROTOR SPEED
145 rpm
STEERING CONTROL SYSTEM
Power
FUEL CAPACITY
18 gal / 68 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
2,687 lb / 1,219 kg
DIMENSIONS (L X W X H)
122.7 x 62.7 x 62 in / 311.6 x 159.3 x 157.5 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

HDX760

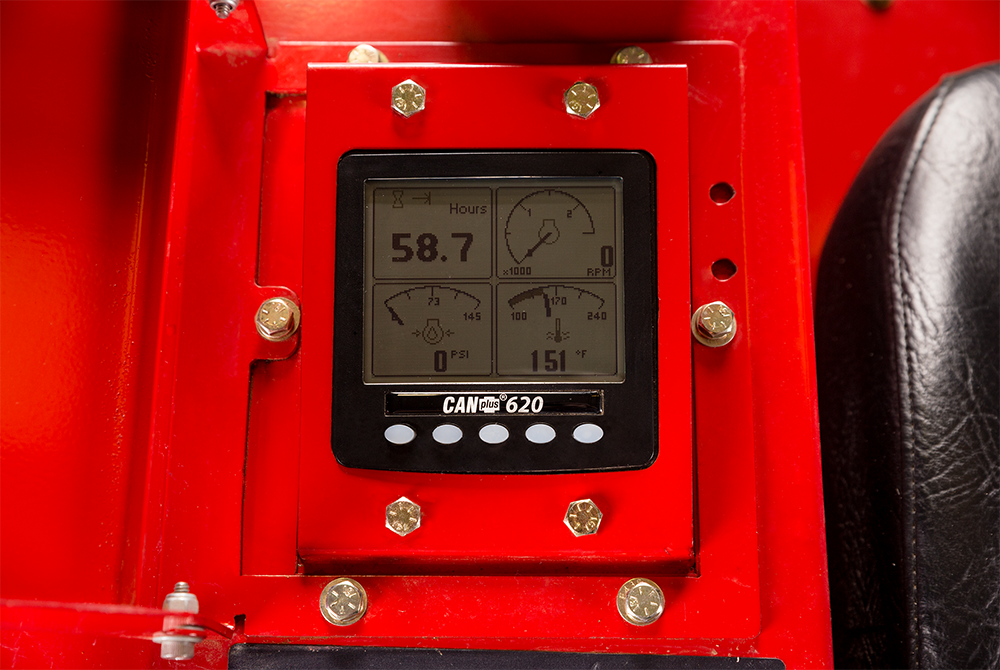

Digital display / computer



Hydraulic joystick power steering



Six adjustable LED lights



Super-duty cast-iron0 spiders with six super-duty trowel arms



T4 compliant air filter



Two-point lifting



Control panel for dual pitch, throttle, lights and cruise control
