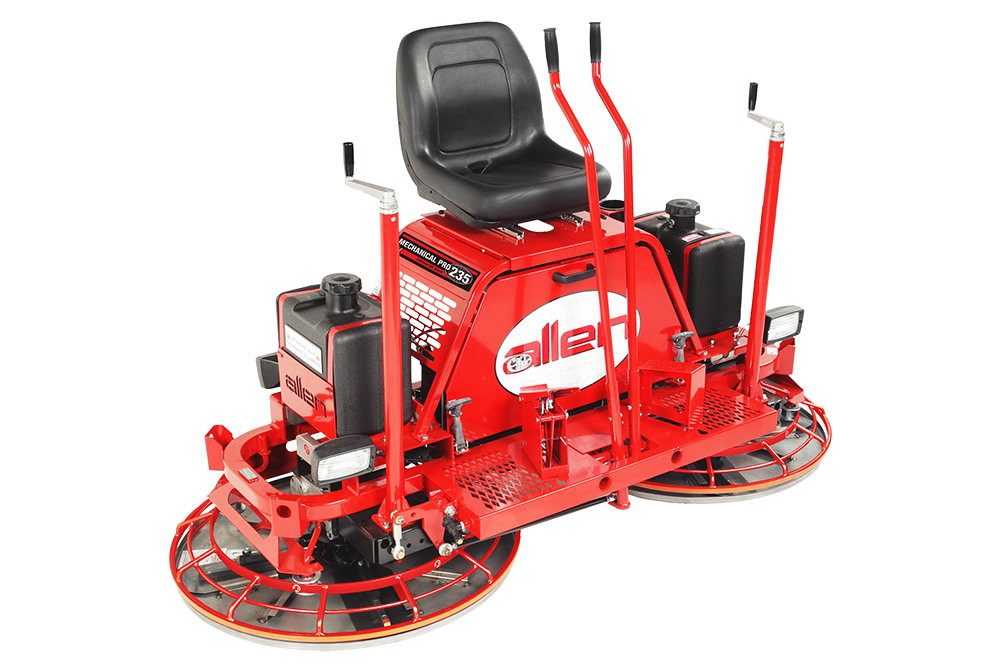

RIDING TROWELS // MP235

The patented MP235 Edger, with its unique rotating guard rings, allows you to run along the edges of walls, around columns and pipes—for a close, clean finish every time. This exclusive Allen rider allows you to edge within 5/16˝ of the edge of a wall, eliminating the need to hand finish those areas. This trowel features a stretched frame for improved productivity and operator comfort.

Specifications

ENGINE
HONDA GX690 / 688 cc
HORSEPOWER CLASS
22.1 hp / 16.5 kW
FUEL TYPE
Air-Cooled Gasoline
PANNING PATH WIDTH
85 in / 216 cm
ROTOR DIAMETER
36 in / 91.4 cm
MAXIMUM ROTOR SPEED
165 rpm
STEERING CONTROL SYSTEM
Manual
FUEL CAPACITY
6 gal / 23 L
RETARDANT CAPACITY
6 gal / 23 L
WEIGHT
783 lb / 355 kg
DIMENSIONS (L X W X H)
86 x 39 x 53 in / 218 x 99 x 135 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

 MP235
Manual dual lever steering



Push button start



Central grease ports



Four adjustable LED lights



Push to spray foot pedal



Electric powered spray system



Side mount fuel and retardant tank



Independent manual pitch control




Equipment Videos

Riding Trowels
06:04 Min

This video gives instructions on how to properly complete the alignment of a trowel arm jig on a walk-behind or ride-on trowel.

Riding Trowels
02:49 Min

This video gives you instructions on how to properly check the flatness of your trowel arms for walk-behind and ride-on trowels.
