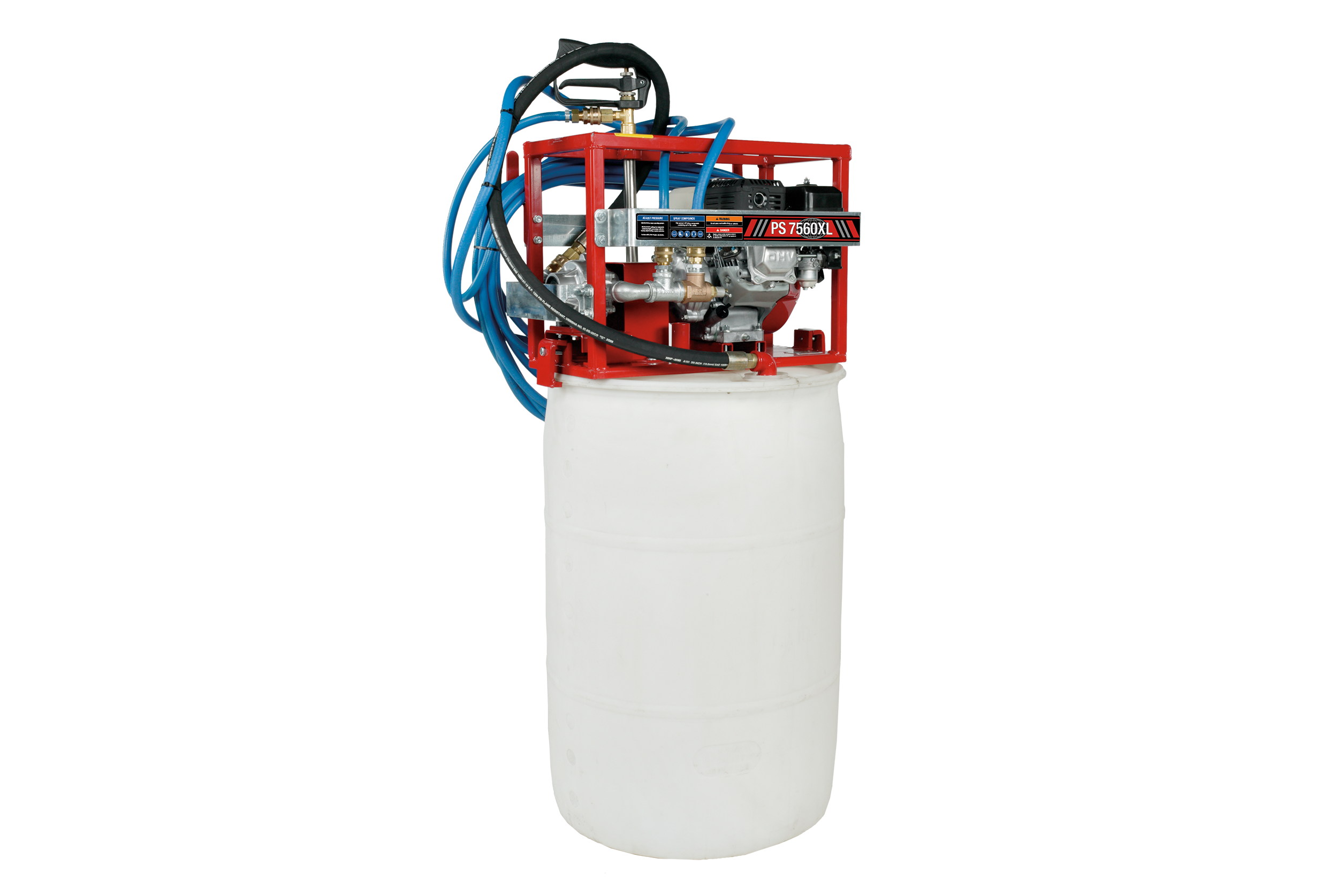

POWER SPRAYERS // PS7560XL

Simple to set up and easy to use, the light-weight PS7560XL is a great tool for your job-site. With durable components, this power sprayer is the preferred tool for applying release agents, water-based sealants, and curing compounds to concrete. Get the best with Allen and the PS7560XL.

BARREL CONFIGURATION (BARRELS NOT INCLUDED)

Specs FAQ's

Specifications

ENGINE

HONDA GX120 / 118 cc

HORSEPOWER CLASS

4 hp / 3 kW

MAXIMUM FLOW RATE

7.5 gpm

MAXIMUM PSI

300 psi

PUMP TYPE

Roller Ball

HOSE TYPE

3/8" Lock-On

HOSE LENGTH

50 ft / 15.24 m

SPRAYER TIP

Fan Tip 4020

MAXIMUM SOLID CONTENT

30%

WEIGHT

106 lb / 48 kg

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Spray wand

Rugged steel frame

Adjustable pressure

Barrel clamps (barrel not included)

Hose hooks

Standard 50 ft spray hose with optional 100 ft hose available

FAQ's

My PS9910 is having pressure issues

Check the diaphragm on top of the pump and make sure it has 50 psi

What is the best way to clean the sprayer?

Put both the suction and bypass hose into a 5-gallon bucket full of warm soapy water and let it run for roughly 5 minutes. After doing this, run it again with another 5-gallon bucket full of water.

My sprayer steam seems obstructed

Make sure the lines are clear of debris

Can you spray any fluids through the sprayer?

No, only nonflammable liquids. 30% solids on 7560 and 35% solids on the 9910
