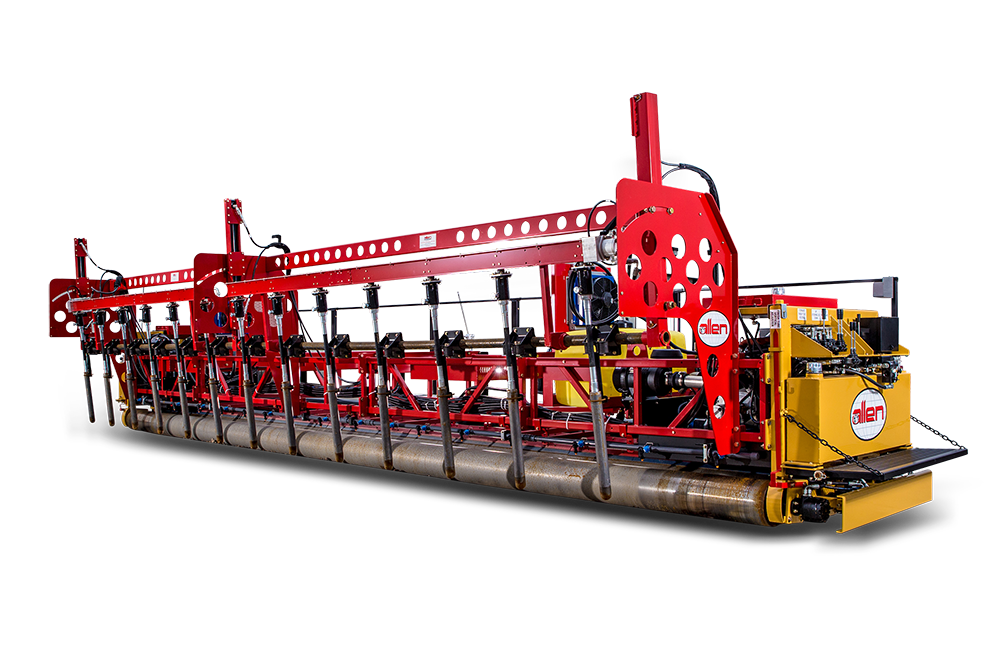

TRIPLE ROLLER TUBE PAVERS // TRTP255T4

The 255 is a beast of a machine with a 47hp Hatz diesel engine. Easy operator controls are located on the end of the frame to allow the operator the ability to view the roadway ahead, and behind the machine, to make sure the final grade and finish meet the required specs.

Specifications

ENGINE
Hatz 3H50TIC (T4F)
HORSEPOWER CLASS
49.5 hp / 36.9 kW
FUEL TYPE
Liquid-Cooled Diesel
WIDTHS AVAILABLE (2 FT INCREMENTS)
12 – 34 ft / 3.7 – 10.4 m
WEIGHT AT 22 FT
5,570 lb / 2,527 kg
ROLLER TUBE DIAMETER
10 in / 25.4 cm
TUBE WEIGHT PER FT
27 lb / 12 kg
HYDRAULIC OIL RESERVOIR
25 gal / 95 L
HYDRAULIC SPRAY SYSTEM
Standard
HYDRAULIC STEERING LEG
Standard

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

TRTP255T4
Powerful diesel engine



Three roller tubes



Heavy-duty sectionalized truss system



Steering leg



Operator console on the end of main frame for visibility
