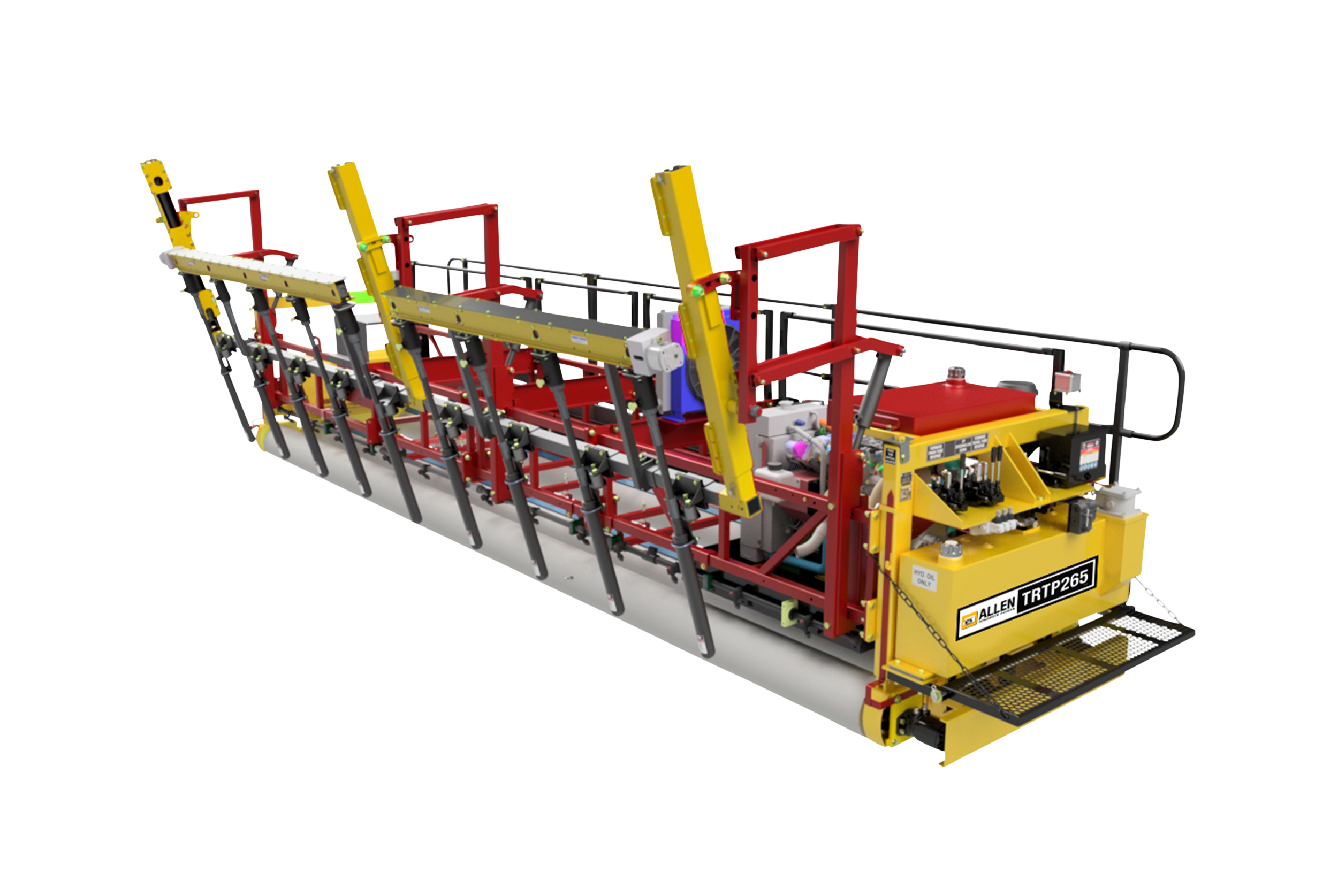

TRIPLE ROLLER TUBE PAVERS // TRTP265

The new 265 is the perfect combination of both the 275 and 255 TRTP models. A vibration rack similar to the 275 is included with this machine. The operator console and controls have been moved to the end of the frame for a lightweight paver option without compromising the strength and performance.

Specs

Get a Quote

Specifications

ENGINE

Hatz 4H50TIC (T4F)

HORSEPOWER CLASS

74 hp / 55.2 kW

FUEL TYPE

Liquid-Cooled Diesel

WIDTHS AVAILABLE (2 FT INCREMENTS)

12 – 34 ft / 3.7 – 10.4 m

WEIGHT AT 22 FT

8,700 lb / 3,946 kg

ROLLER TUBE DIAMETER

10 in / 25.4 cm

TUBE WEIGHT PER FT

27 lb / 12 kg

HYDRAULIC OIL RESERVOIR

30 gal / 114 L

HYDRAULIC SPRAY SYSTEM

Standard

HYDRAULIC STEERING LEG

Standard

VIBRATOR DEPTH

24" Below Grade

VIBRATOR FREQUENCY

11,000 vpm

TRTP265 SPEC SHEET

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

*Please note: The TRTP will need to be at least 2' wider than the paving width. Example: 16' Paving width = 18' TRTP Length.

Gang spud vibration system for up to 24" (61 cm) depth

Vibration rack retracts for transport

Optional water spray system

Powerful diesel engine

Three roller tubes

Heavy-duty sectionalized truss system

Operator console on the end main frame for visibility

Steering leg
