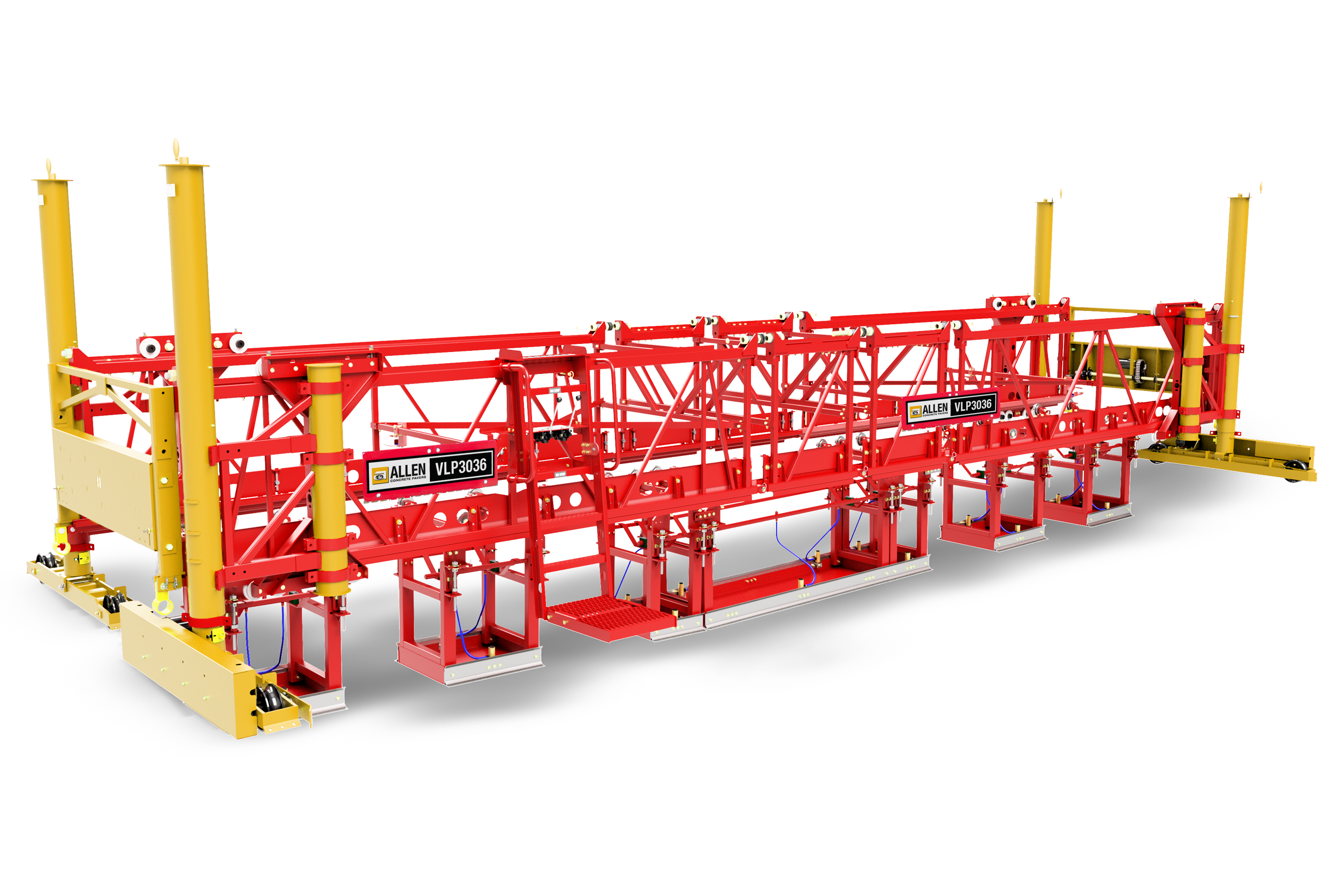

Versatile Light Pavers // VLP3036

The VLP3036 is a larger paver that allows the contractor to pave wider widths than the VLP2424. This unit can be adapted and converted to a deck finisher, the BDF4836. The contractor has the potential for a dual-purpose paver. Like the VLP2424, this unit is used for light rail projects, bridge overlays and full depth bridge decks. It can be customized with additional frame sections and options to support any paving needs.

Specifications

ENGINE
Air-Cooled KOHLER CH440 or KOHLER CH740
FUEL TYPE
Gasoline
HORSEPOWER CLASS
14 hp or 23.5 hp / 10.4 kW or 17.5 kW
MAIN FRAME
2x 15' x 36' Truss Sections w/ Leg Rail
PAVING PROFILE HEADS
2x 15' sections / 4 Paving Profile Heads comes with Base Machine
BOGIES
36" Power Drive Bogie Frames w/ Cupped Wheels and 36" Idle Bogie Frames w/ Cupped Wheels

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

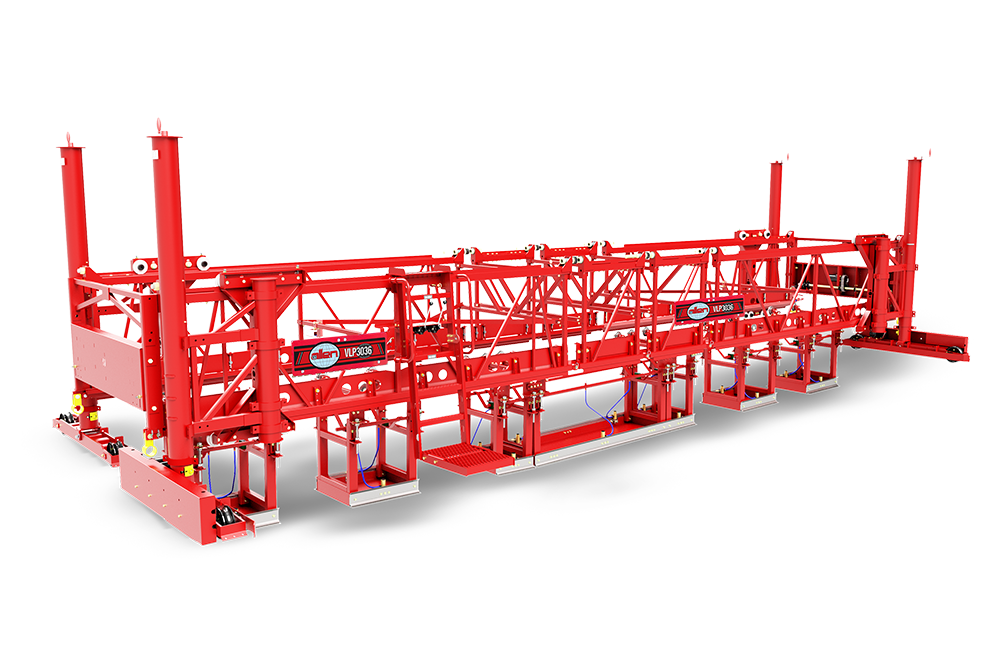

VLP3036
Power unit



Manual legs



Power bogie



Operator platform and machine controls



Paving profile frames
