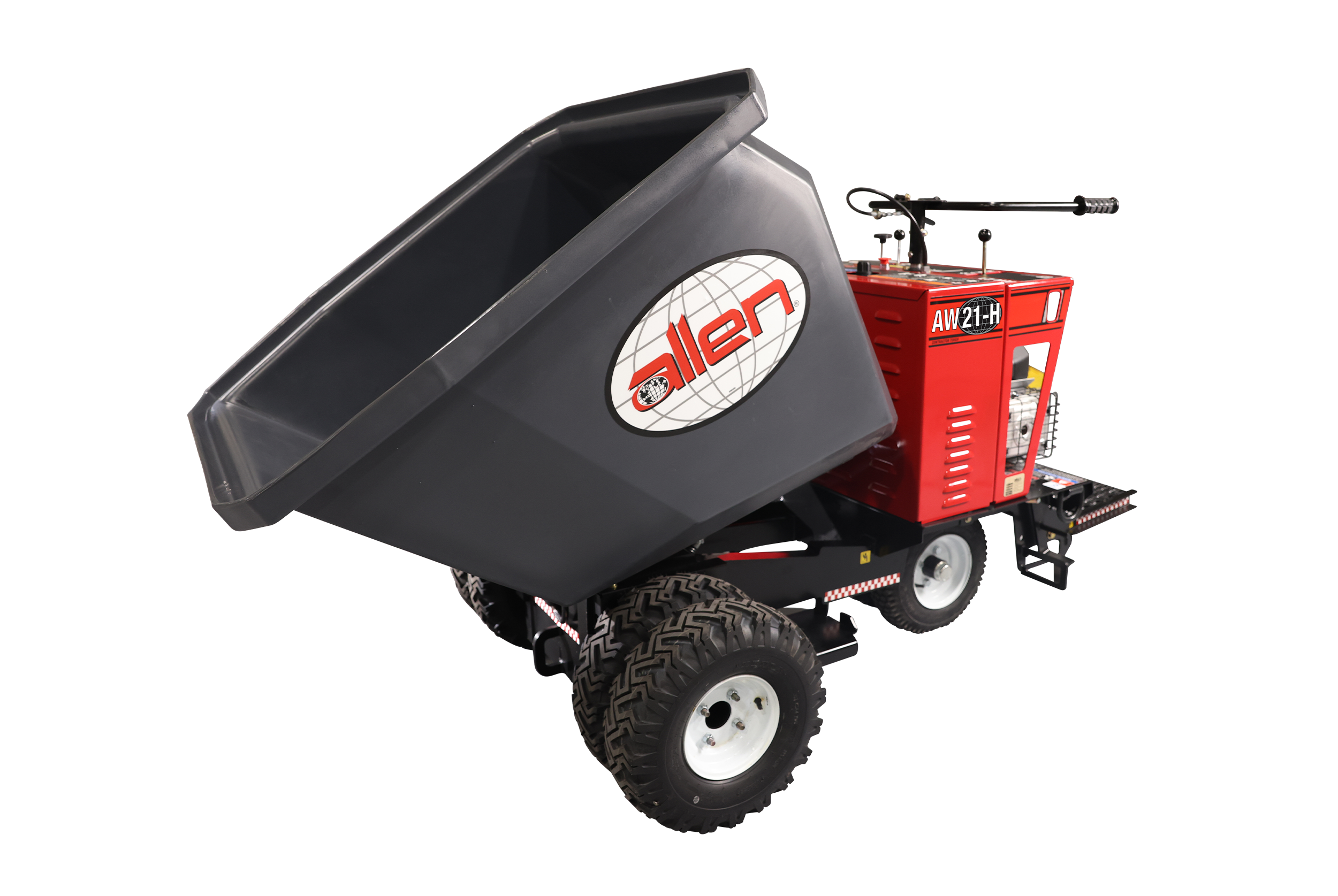

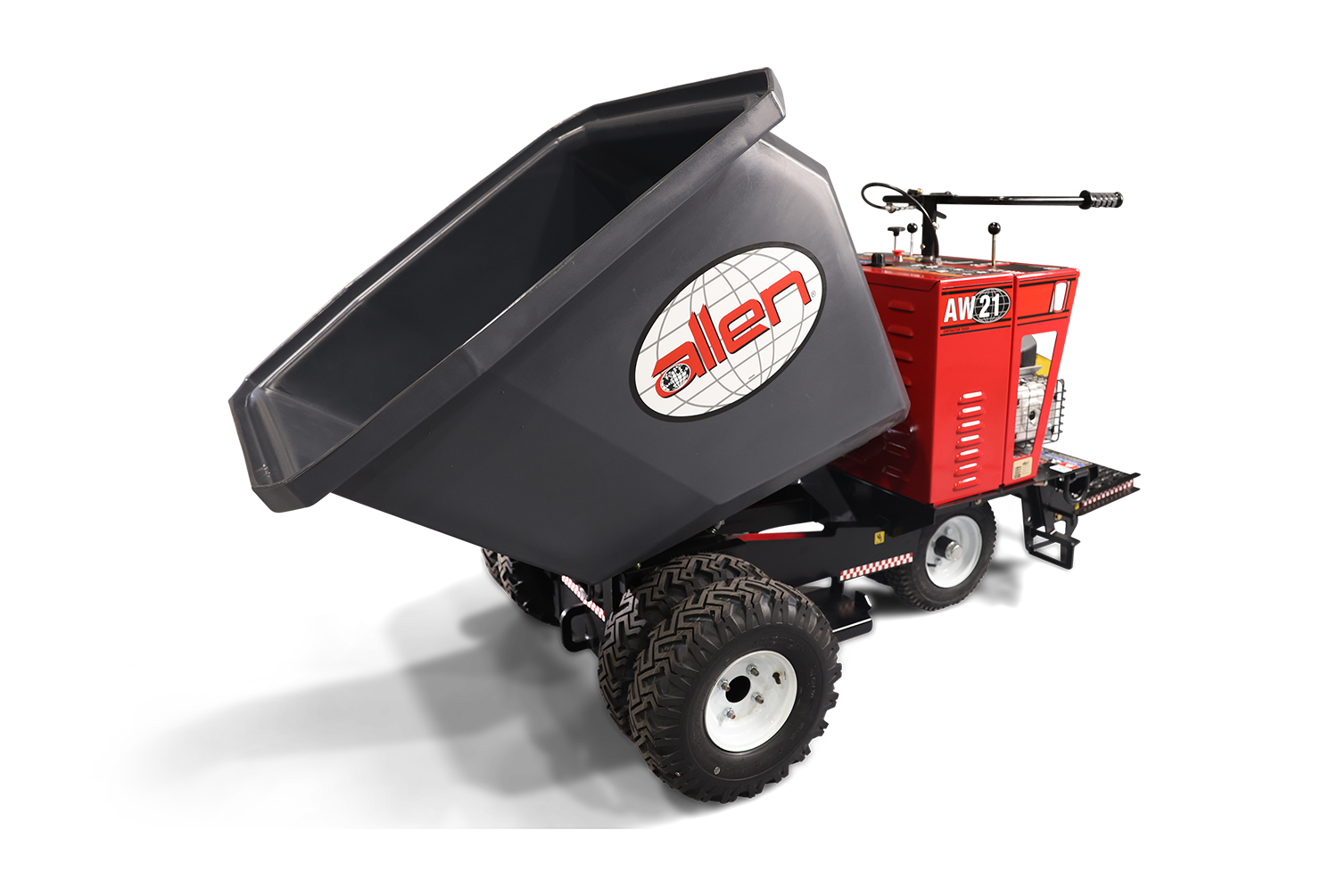

WHEEL BUGGIES // AW21-H

The AW21-H is fully equipped with our standard wheel buggy features, a twenty-one cubic foot polyethylene bucket that is capable of handling over 3,000 lbs of material and a Honda GX630 engine that reaches over six miles per hour fully loaded.

Specs FAQ's

Demo

Specifications

ENGINE

HONDA GX630

HORSEPOWER CLASS

20 hp / 15 kW

STARTER

Electric

FUEL TYPE

Gasoline

FUEL CAPACITY

2.1 gal / 8 L

TOP SPEED

6 mph / 10 kph

PAYLOAD

3,200 lb / 1,451 kg

BUCKET CAPACITY

21 cu. ft. / 0.59 cu. m

LIFT CYLINDER DIAMETER

2.5 in / 63.5 mm

DUMP ANGLE

90º

DUMP / RETURN SPEED EMPTY

8 Seconds

WHEELBASE

40 in / 102 cm

TIRES

Foam Filled

WEIGHT

1,475 lb / 669 kg

DIMENSIONS

97 x 47 x 50 in / 246 x 119 x 127 cm

Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Easy-squeeze speed control lever

Enclosed engine shroud

Foot-operated dumping mechanism

Sid-to-side and rear-to-front forklift pockets

21 Cubic foot capacity, heavy-duty poly dump bucket

FAQ's

Dump cylinder won't dump or is slow on my wheel buggy

1. Check there is no air in the lines

2. Check that the pressure is accurate on the dump valve. This pressure should read 1500 psi.

Engine is growling when throttle is lowered to idle on my wheel buggy

Check that the coupler and jaw element is seated properly and not damaged

Wheel buggy creeps while idle

Adjust the throttle lever bolt under the throttle lever on the pump's left or right until it idles without creeping

What oil goes in the hydraulic tank in the wheel buggy?

10w30 Motor Oil
